Cisco

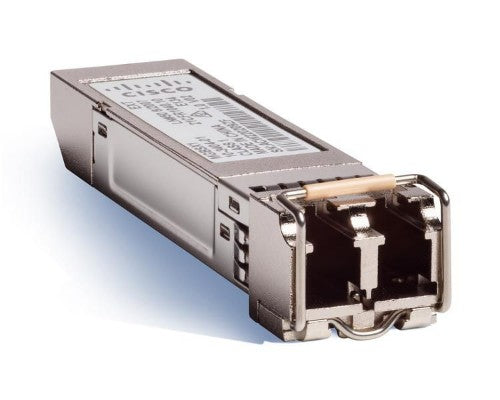

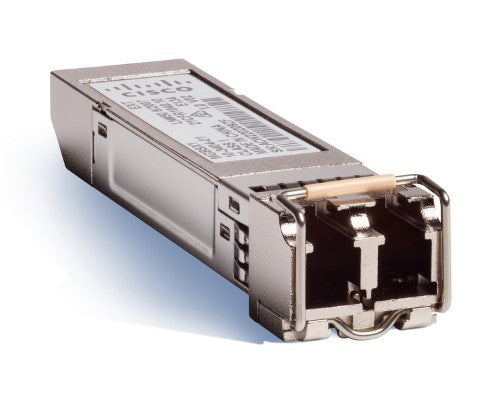

Cisco 1000BASE-SX SFP Module for Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (GLC-SX-MMD=)

SKU GLC-SX-MMD=
£452.47
£204.84
£452.47
£204.84
Excluding taxes
1000BASE-SX SFP Module for Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (GLC-SX-MMD=)

Key Features

  • COMPATIBILITY: 1000BASE-SX SFP is designed for operation on multi-mode fibre
  • OPERATION: Operates distances up to 1 km over laser-optimised 50 μm core multi-mode fibre cable
  • HOT SWAPPABLE: Plugs into an Ethernet SFP port or slot with no need to shut down if installing or replacing
  • VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for flexible media and interface choice on a port-by-port basis
  • PEACE OF MIND: 5-year standard replacement warranty

Description

The Cisco 1000BASE-SX SFP Module is an industry-standard Small Form-Factor Pluggable (SFP) Gigabit Interface Converter that links switches and routers to the network. Featuring a robust design for enhanced reliability, this SFP receiver/transmitter module plugs into a Gigabit Ethernet port or slot and is hot-swappable to maximise uptime and simplify serviceability.

Specifications

Network
SFP transceiver type Fiber optic
Fiber optic connector LC
Networking standards IEEE 802.3z
Fiber ports quantity 2
Maximum data transfer rate 1000 Mbit/s
Interface type SFP
Technical details
Package width 143 mm
Package height 44.5 mm
Hot-swap Yes
Auto MDI/MDI-X No
Maximum transfer distance 10000 m
Wavelength 850 nm
Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm
Ports & interfaces
Fiber ports quantity 2
Performance
Country of origin China
Hot-swap Yes
SFP transceiver type Fiber optic
Fiber optic connector LC
Networking standards IEEE 802.3z
Auto MDI/MDI-X No
Maximum transfer distance 10000 m
Wavelength 850 nm
Fiber ports quantity 2
Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm
Maximum data transfer rate 1000 Mbit/s
Interface type SFP
Multi-mode fiber (MMF) supported Yes
SFP transceiver standard SX
Harmonized System (HS) code 85369010
Features
Country of origin China
Hot-swap Yes
Power
Power consumption (typical) 1.5 W
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Weight & dimensions
Width 13.4 mm
Depth 56.5 mm
Height 8.5 mm
Weight 75 g
Package depth 158.8 mm
Package width 143 mm
Package height 44.5 mm
Package weight 90.7 g
Packaging data
Package depth 158.8 mm
Package width 143 mm
Package height 44.5 mm
Package weight 90.7 g
Logistics data
Harmonized System (HS) code 85369010
Quantity per pack 1 pc(s)
