Cisco

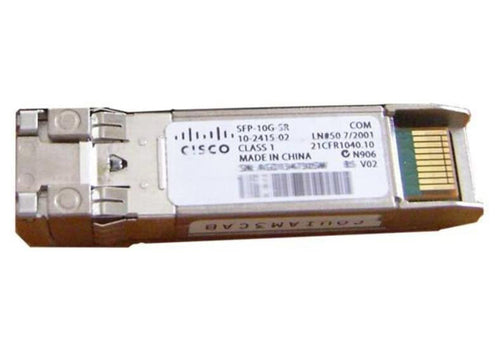

Cisco 10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=)

SKU SFP-10G-SR-S=
£633.45
£250.01
£633.45
£250.01
Excluding taxes
10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=)

Key Features

  • LINK LENGTH: Supports link lengths of 26 m on standard FDDI-grade multimode fiber; up to 300 m link lengths possible using OM3 and 400 m using OM4 (this model does not support Fiber Channel over Ethernet [FCoE])
  • COMPACT: Industry-smallest 10G form factor for greatest density per chassis
  • HOT SWAPPABLE: Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing
  • VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for investment protection and ease of technology migration
  • PEACE OF MIND: 5-year standard replacement warranty

Description

The Cisco 10GBASE-SR-S SFP Module delivers a wide variety of 10-Gigabit Ethernet connectivity options for data centre, enterprise server room and service provider transport applications. This hot-swappable input/output transceiver plugs into an Ethernet SFP+ port of a Cisco switch and offers optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link.

Specifications

Network
SFP transceiver type Fiber optic
Fiber optic connector LC, PC
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
Cabling technology 10GBASE-SR
Maximum data transfer rate 10000 Mbit/s
Interface type SFP+
Technical details
Package width 143 mm
Package height 44.5 mm
Hot-Plug support Yes
Auto MDI/MDI-X Yes
Wavelength 850 nm
Duplex system Full
Cabling technology 10GBASE-SR
Performance
Country of origin China
Hot-Plug support Yes
SFP transceiver type Fiber optic
Fiber optic connector LC, PC
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
Auto MDI/MDI-X Yes
Wavelength 850 nm
Duplex system Full
Cabling technology 10GBASE-SR
Maximum data transfer rate 10000 Mbit/s
Interface type SFP+
Multi-mode fiber (MMF) supported Yes
SFP transceiver standard SR
Harmonized System (HS) code 85369010
Features
Country of origin China
Hot-Plug support Yes
Certification MSA
Operational conditions
Operating temperature (T-T) -40 - 85 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Weight & dimensions
Width 13.4 mm
Depth 56.5 mm
Height 8.5 mm
Package depth 158.8 mm
Package width 143 mm
Package height 44.5 mm
Package weight 90.7 g
Packaging data
Package depth 158.8 mm
Number of products included 1 pc(s)
Package width 143 mm
Package height 44.5 mm
Package weight 90.7 g
Certificates
Certification MSA
Packaging content
Number of products included 1 pc(s)
Logistics data
Harmonized System (HS) code 85369010
Quantity per pack 1 pc(s)
