Cisco

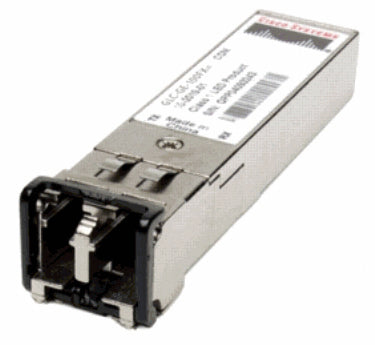

Cisco Meraki MA-SFP-1GB-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm

SKU MA-SFP-1GB-SX
£456.59
£309.45
£456.59
£309.45
Excluding taxes
SFP 1000BASE-SX transceiver module

Description

SFP Transceivers are compliant with the Multi-Source Agreement (MSA) ensuring compatibility with a wide range of networking equipment. Select your choice or Copper or Fiber versions that support Fast Ethernet, Gigabit and 10G Ethernet speeds.

Specifications

Network
SFP transceiver type Fiber optic
Fiber optic connector LC
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Cabling technology 1000BASE-SX
Maximum data transfer rate 1000 Mbit/s
Interface type SFP
Technical details
Hot-Plug support Yes
Auto MDI/MDI-X Yes
Wavelength 850 nm
Cabling technology 1000BASE-SX
Performance
Hot-Plug support Yes
SFP transceiver type Fiber optic
Fiber optic connector LC
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X Yes
Wavelength 850 nm
Cabling technology 1000BASE-SX
Maximum data transfer rate 1000 Mbit/s
Interface type SFP
Multi-mode fiber (MMF) supported Yes
SFP transceiver standard SX
Harmonized System (HS) code 85369010
Features
Hot-Plug support Yes
Certification MSA
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 10 - 80%
Storage relative humidity (H-H) 10 - 85%
Weight & dimensions
Width 13.4 mm
Depth 56.5 mm
Height 8.5 mm
Certificates
Certification MSA
Logistics data
Harmonized System (HS) code 85369010
