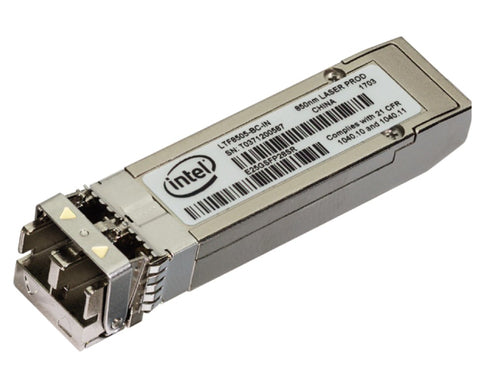

Intel E25GSFP28SR network transceiver module Fiber optic 25000 Mbit/s SFP28 850 nm

Ethernet SFP28 Optic

Description

Intel® Ethernet SFP28 Optics are available for customers who would like to deploy Intel® Ethernet Network Adapters with an SFP28 optic. The Intel® Ethernet Network Adapter XXV710 with SFP28 connectivity delivers a proven, reliable solution for deployments of high density Ethernet.

The Intel® Ethernet Network Adapter XXV710 supports SFP28 connectors enabling customers to have network connections via either direct attach Twinax copper cables, or SR and LR optical modules. The Intel® Ethernet Network Adapter XXV710 has all the server and network virtualization capabilities of the Intel® Ethernet 700 Series adapters but
at 25GbE speed. With 25GbE backward compatibility to 10GbE, it provides a natural upgrade migration path for those customers who need more bandwidth.

Intel supports the ability to use Intel® Ethernet SFP28 Optics, Intel® Ethernet SFP28 Twinaxial Cables, or Intel® Ethernet QSFP28-to-SFP28 Twinaxial Breakout Cables. This helps customers create the configuration that best meets the needs of their data center environment, while ensuring compatibility.

Specifications

Performance
SFP transceiver type	Fiber optic
Wavelength	850 nm
Maximum data transfer rate	25000 Mbit/s
Interface type	SFP28
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SR
Export Control Classification Number (ECCN)	5A991
Commodity Classification Automated Tracking System (CCATS)	NA
Product colour	Silver
ARK ID	121506
Harmonized System (HS) code	85369010
Features
Product colour	Silver
ARK ID	121506
Status	Launched
Product series	Intel® Ethernet SFP28 Optics
Power
Power consumption (typical)	1.2 W
Certificates
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Network
SFP transceiver type	Fiber optic
Maximum data transfer rate	25000 Mbit/s
Interface type	SFP28
Packaging content
Quantity per pack	1 pc(s)
Technical details
Wavelength	850 nm
ARK ID	121506
Compliance certificates	RoHS
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85369010
Other features
Product series	Intel® Ethernet SFP28 Optics
Launch date	Q1'17
