StarTech.com Cisco GLC-LH-SMD Compatible SFP Transceiver Module - 1000BASE-LH~Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LH - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 20km - 1310nm - DDM Cisco Firepower, IE2000,

StarTech.com Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LH - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 20km - 1310nm - DDM Cisco Firepower (SFPG1320C)

Key Features

• 100% CISCO GLC-LH-SMD COMPATIBLE: Works with Cisco switches like Firepower, IE2000, IE4000, C9300, IE3000 and others
• TECHNICAL SPECS: 1000BASE-LH / 1 Gbps / Single Mode (SMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 20km (12.4mi)
• TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
• WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
• THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.

Description

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 20 km (12.4 mi) | Lifetime Warranty

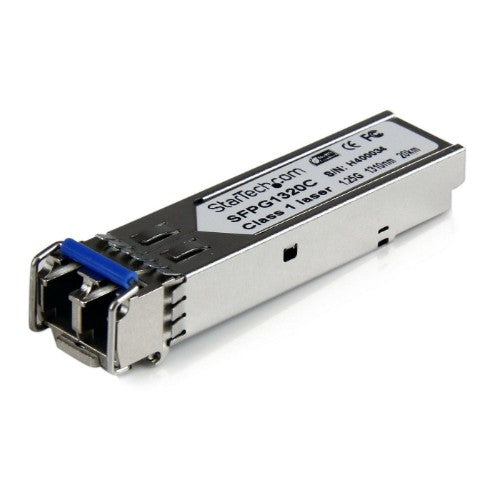

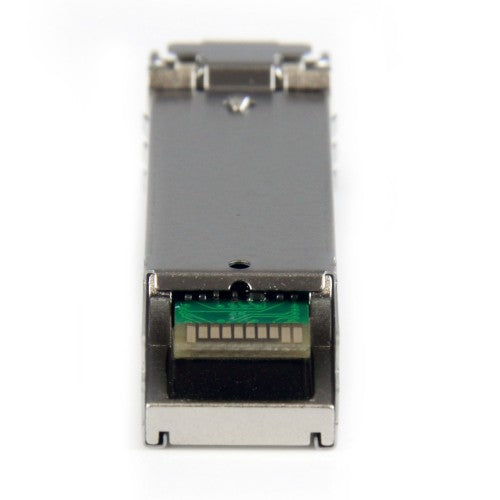

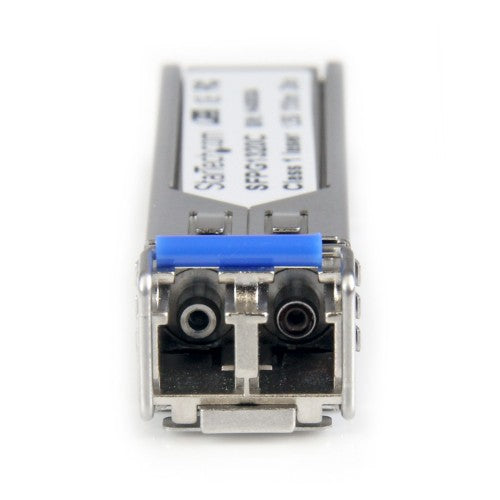

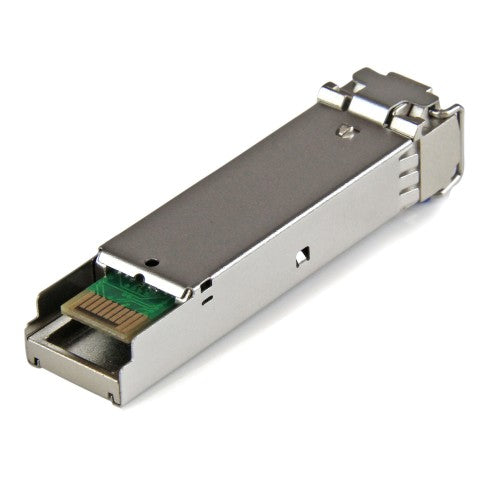

The SFPG1320C is a Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LH compliant networks, with a maximum distance of up to 20 km (12.4 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 20 km (12.4 mi)
• MTBF: 2,722,277 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Performance
SFP transceiver type	Fiber optic
Wavelength-division multiplexing (WDM)	No
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Maximum transfer distance	20000 m
Wavelength	1310 nm
Duplex system	Full, Half
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	No
SFP transceiver standard	LH
Product colour	Silver
Hot-swap	Yes
Compatible products	GLC-LH-SMD
Mean time between failures (MTBF)	2722277 h
Brand compatibility	Cisco
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Hot-swap	Yes
Compatible products	GLC-LH-SMD
Mean time between failures (MTBF)	2722277 h
Brand compatibility	Cisco
Certification	CE, FCC, UL, REACH
Power
Power consumption (typical)	1 W
Certificates
Certification	CE, FCC, UL, REACH
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	30 - 70%
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Weight & dimensions
Width	12 mm
Depth	60 mm
Height	10 mm
Weight	20 g
Package depth	92 mm
Package width	118 mm
Package height	33 mm
Package weight	48 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	118 mm
Package height	33 mm
Hot-swap	Yes
Maximum transfer distance	20000 m
Wavelength	1310 nm
Duplex system	Full, Half
Compatible products	GLC-LH-SMD
Compliance certificates	RoHS
Packaging data
Package depth	92 mm
Package width	118 mm
Package height	33 mm
Package weight	48 g
Logistics data
Quantity per pack	1 pc(s)
Master (outer) case width	254 mm
Master (outer) case length	302 mm
Master (outer) case height	201 mm
Products per master (outer) case	36 pc(s)
Harmonized System (HS) code	85369010
