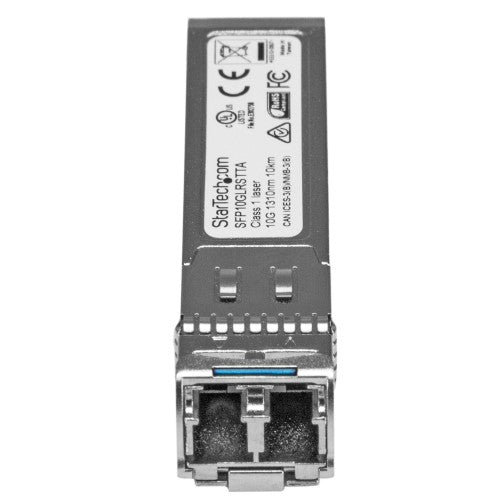

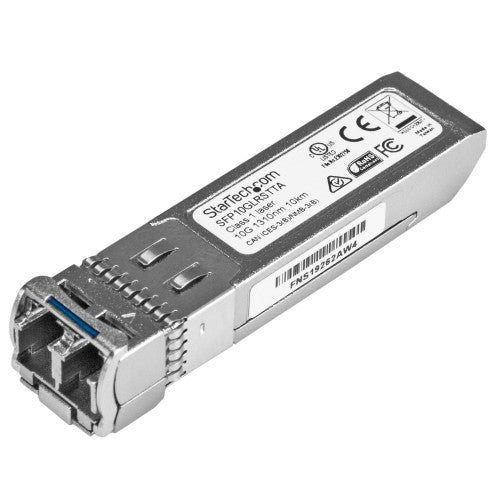

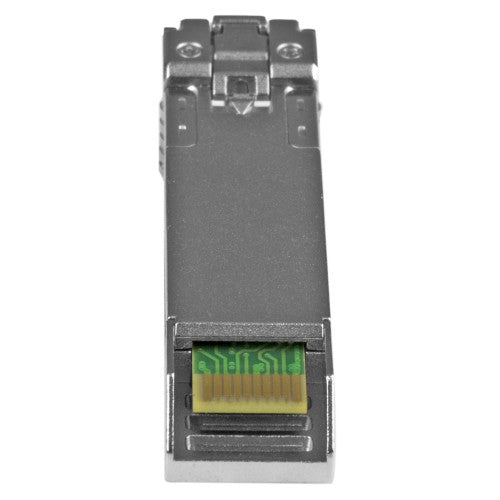

StarTech.com Cisco SFP-10G-LR-S Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM Cisco Firepower, ASR9000, C9300

StarTech.com Cisco SFP-10G-LR-S Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber Optic Transceiver - 10GbE SFP+ - LC 10km 1310nm DDM Cisco Firepower, ASR9000, C9300 (SFP10GLRSTTA)

Key Features

• 100% CISCO SFP-10G-LR-S COMPATIBLE: Works with Cisco switches like Firepower, ASR9000, C9300, C3850, C9500 and others
• TECHNICAL SPECS: 10GBASE-LR / 10 Gbps / Single Mode (SMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
• TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
• WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
• THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.

Description

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | TAA | Lifetime Warranty

The SFP10GLRST is a TAA compliant Cisco SFP-10G-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,203,430 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

SFP modules

We offer a wide variety of SFP transceiver modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Performance
SFP transceiver type	Fiber optic
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3ae
Maximum transfer distance	10000 m
Wavelength	1310 nm
Duplex system	Full
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Yes
SFP transceiver standard	LR
Product colour	Silver
Housing material	Zinc steel
Hot-swap	Yes
Mean time between failures (MTBF)	1203430 h
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Housing material	Zinc steel
Hot-swap	Yes
Mean time between failures (MTBF)	1203430 h
Certification	CE, FCC, UL, TAA
Power
Power consumption (typical)	1 W
Certificates
Certification	CE, FCC, UL, TAA
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3ae
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Weight & dimensions
Width	13.3 mm
Depth	57 mm
Height	10 mm
Weight	19 g
Package depth	122 mm
Package width	75 mm
Package height	34 mm
Package weight	100 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	75 mm
Package height	34 mm
Hot-swap	Yes
Maximum transfer distance	10000 m
Wavelength	1310 nm
Duplex system	Full
Compliance certificates	RoHS
Packaging data
Package depth	122 mm
Package width	75 mm
Package height	34 mm
Package weight	100 g
Logistics data
Quantity per pack	1 pc(s)
Master (outer) case width	340 mm
Master (outer) case length	638 mm
Master (outer) case height	296 mm
Products per master (outer) case	150 pc(s)
Harmonized System (HS) code	85369010
