StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-FX~MSA Uncoded SFP Module - 100BASE-FX - 100MbE Multi Mode Fiber (MMF) Optic Transceiver - 100Mb Ethernet SFP - LC 2km - 1310nm - DDM

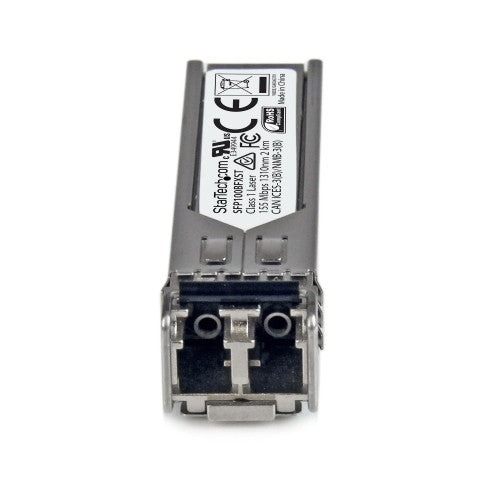

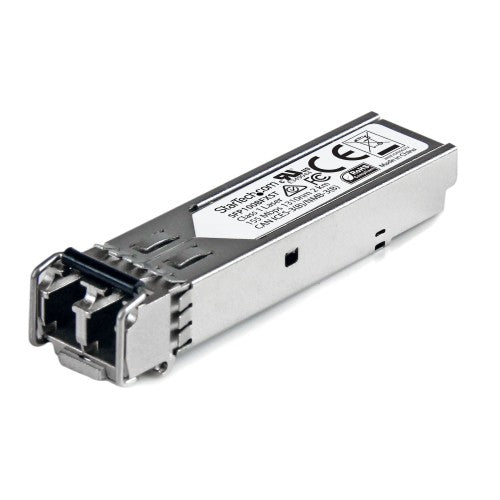

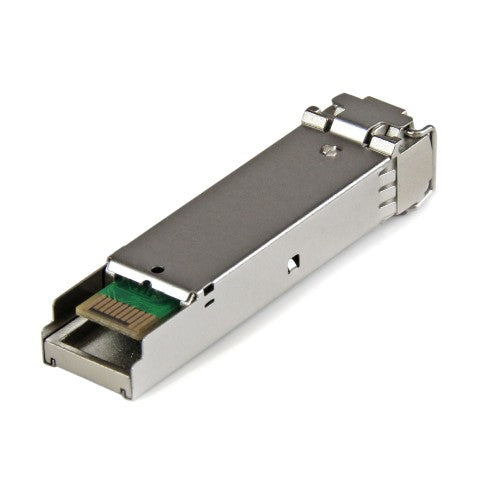

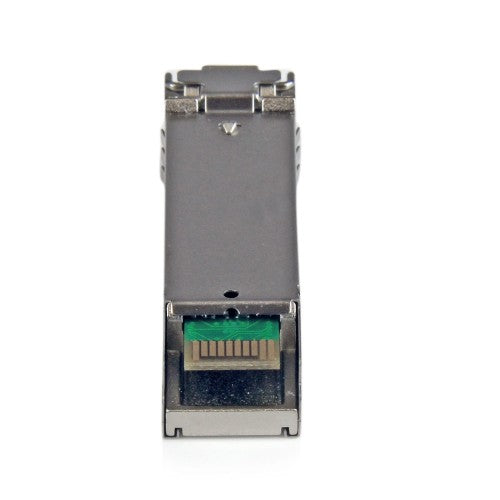

StarTech.com MSA Uncoded Compatible SFP Module - 100BASE-FX - 100MbE Multi Mode Fiber (MMF) Optic Transceiver - 100Mb Ethernet SFP - LC 2km - 1310nm - DDM (SFP100BFXST)

Key Features

• 100% MSA UNCODED SFP TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 100MbE connectivity
• TECHNICAL SPECS: 100BASE-FX / 100Mbps / Multi Mode (MMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 2km (1.2mi)
• TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches; DDM support reports the transceiver's status to most SNMP network management tools.
• WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
• THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance

Description

100 Mbps | Multi Mode Fiber | LC | 2 km (1.2 mi) | Lifetime Warranty

The SFP100BFXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-FX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 2 km (1.2 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 155 Mbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 2 km (1.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Performance
SFP transceiver type	Fiber optic
Wavelength-division multiplexing (WDM)	No
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3u
Maximum transfer distance	2000 m
Wavelength	1310 nm
Duplex system	Full, Half
Maximum data transfer rate	155 Mbit/s
Interface type	SFP
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	FX
Country of origin	China
Product colour	Silver
Housing material	Aluminium
Hot-Plug support	Yes
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Housing material	Aluminium
Hot-Plug support	Yes
Country of origin	China
Certification	CE, FCC, UR
Power
Power consumption (typical)	1 W
Certificates
Certification	CE, FCC, UR
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3u
Maximum data transfer rate	155 Mbit/s
Interface type	SFP
Weight & dimensions
Width	13.9 mm
Depth	58.4 mm
Height	12.6 mm
Weight	20 g
Package depth	120 mm
Package width	90 mm
Package height	30 mm
Package weight	48 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	90 mm
Package height	30 mm
Hot-Plug support	Yes
Maximum transfer distance	2000 m
Wavelength	1310 nm
Duplex system	Full, Half
Compliance certificates	RoHS
Packaging data
Package depth	120 mm
Package width	90 mm
Package height	30 mm
Package weight	48 g
Logistics data
Quantity per pack	1 pc(s)
Country of origin	China
Master (outer) case width	310 mm
Master (outer) case length	400 mm
Master (outer) case height	317 mm
Products per master (outer) case	80 pc(s)
Harmonized System (HS) code	85369010
