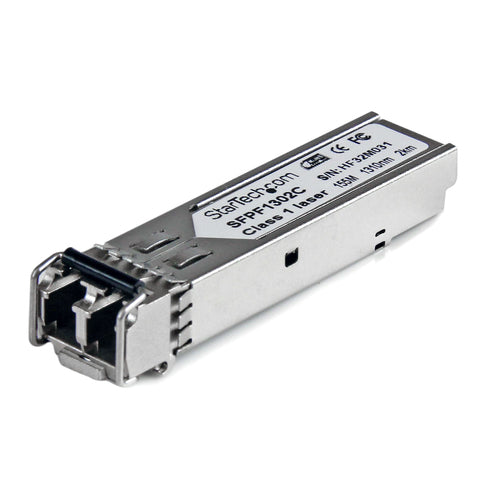

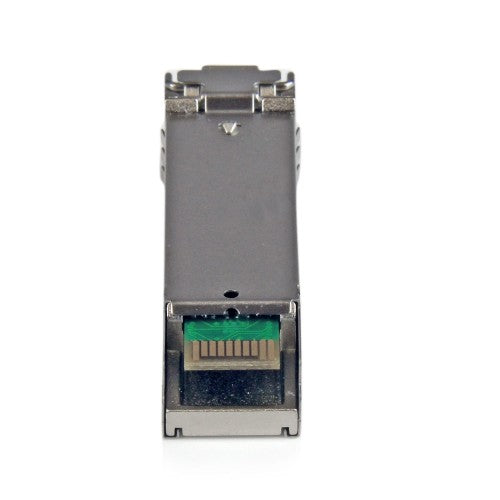

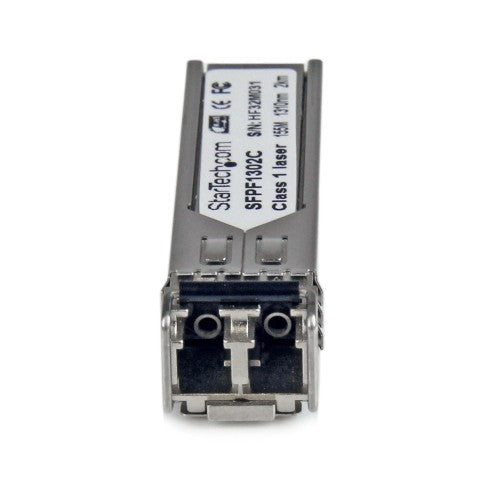

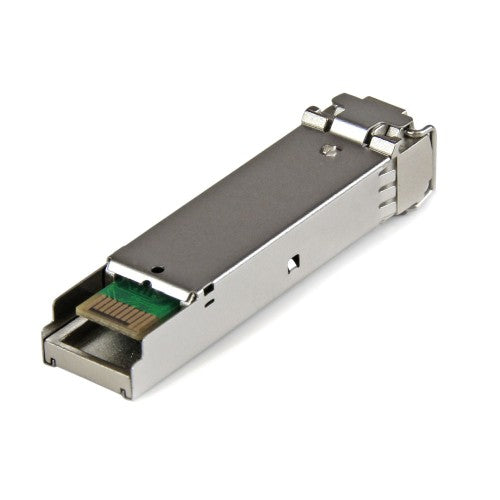

StarTech.com Cisco GLC-FE-100FX Compatible SFP Transceiver Module - 100BASE-FX~Cisco GLC-FE-100FX Compatible SFP Module - 100BASE-FX - 100Mbps Multimode Fiber MMF Optic Transceiver - 100 Mbps - LC 2km - 1310nm - DDM Cisco ASR920, IE2000, IE4000

StarTech.com Cisco GLC-FE-100FX Compatible SFP Module - 100BASE-FX - 100Mbps Multimode Fiber MMF Optic Transceiver - 100 Mbps - LC 2km - 1310nm - DDM Cisco ASR920, IE2000, IE4000 (SFPF1302C)

Key Features

• 100% CISCO GLC-FE-100FX COMPATIBLE: Works with Cisco switches like ASR920, IE2000, IE4000, IR1101, ISR1100 and others
• TECHNICAL SPECS: 100BASE-FX / 100 Mbps / Multi Mode (MMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 2km (1.2mi)
• TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
• WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
• THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.

Description

100 Mbps | Multi Mode Fiber | LC | 2 km (1.2 mi) | Lifetime Warranty

The SFPF1302C is a Cisco GLC-FE-100FX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 100 Mb connectivity over fiber cable, for 100BASE-FX compliant networks, with a maximum distance of up to 2 km (1.2 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 155 Mbps
• Type: Multimode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 2 km (1.2 mi)
• MTBF: 1,472,572 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Performance
SFP transceiver type	Fiber optic
Wavelength-division multiplexing (WDM)	No
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3u
Maximum transfer distance	2000 m
Wavelength	1300 nm
Duplex system	Full, Half
Maximum data transfer rate	155 Mbit/s
Interface type	SFP
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	FX
Product colour	Silver
Hot-swap	Yes
Mean time between failures (MTBF)	1472572 h
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Hot-swap	Yes
Mean time between failures (MTBF)	1472572 h
Certification	CE, FCC, UL
Power
Power consumption (typical)	1 W
Certificates
Certification	CE, FCC, UL
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	30 - 70%
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3u
Maximum data transfer rate	155 Mbit/s
Interface type	SFP
Weight & dimensions
Width	9 mm
Depth	65 mm
Height	14 mm
Weight	25 g
Package depth	118 mm
Package width	92 mm
Package height	33 mm
Package weight	95 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	92 mm
Package height	33 mm
Hot-swap	Yes
Maximum transfer distance	2000 m
Wavelength	1300 nm
Duplex system	Full, Half
Compliance certificates	RoHS
Packaging data
Package depth	118 mm
Package width	92 mm
Package height	33 mm
Package weight	95 g
Logistics data
Quantity per pack	1 pc(s)
Master (outer) case width	260 mm
Master (outer) case length	308 mm
Master (outer) case height	201 mm
Products per master (outer) case	36 pc(s)
Harmonized System (HS) code	85369010
