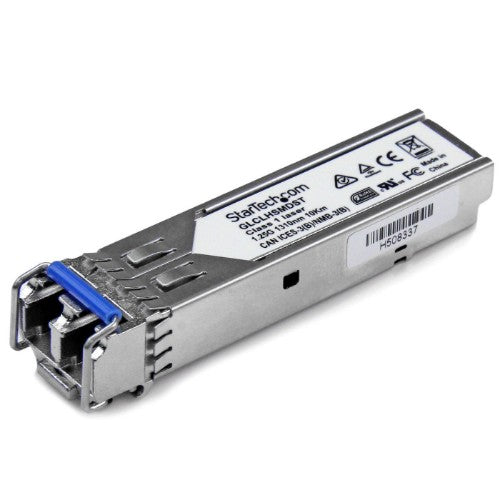

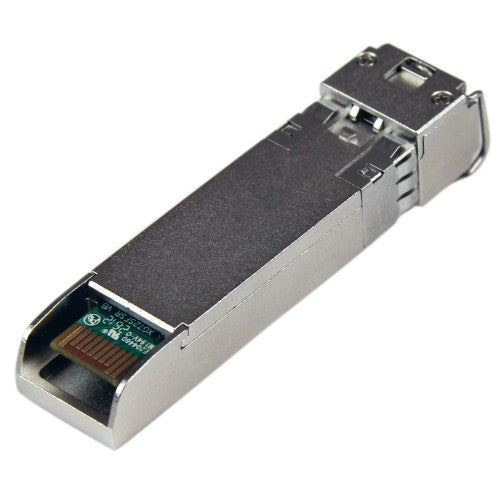

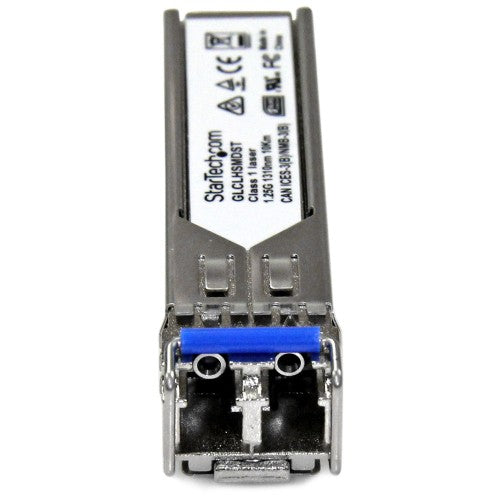

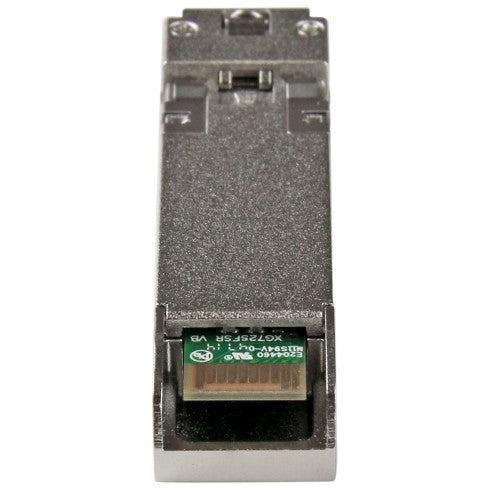

StarTech.com Cisco GLC-LH-SMD Compatible SFP Transceiver Module - 1000BASE-LX/LH~Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LX/LH - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM Cisco Firepower, AS

StarTech.com Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LX/LH - 1GbE Single Mode Fiber Optic Transceiver - 1GbE SFP - LC 10km - 1310nm - DDM Cisco Firepower, ASR920, IE2000 (GLCLHSMDST)

Key Features

• 100% CISCO GLC-LH-SMD COMPATIBLE: Works with Cisco switches like Firepower, ASR920, IE2000, IE4000, ASR1000 and others
• TECHNICAL SPECS: 1000BASE-LX/LH / 1 Gbps / Single Mode (SMF)/Multi Mode (MMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
• TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
• WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
• THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.

Description

1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The GLCLHSMDST is a Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode / Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM
• MTBF: 200,000 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Performance
SFP transceiver type	Fiber optic
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Auto MDI/MDI-X	Yes
Maximum transfer distance	10000 m
Wavelength	1310 nm
Fiber ports quantity	1
Duplex system	Full
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	LH, LX
Country of origin	China
Product colour	Silver
Housing material	Aluminium
Hot-swap	Yes
Compatible products	GLC-LH-SMD
Mean time between failures (MTBF)	200000 h
Brand compatibility	Cisco
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Housing material	Aluminium
Hot-swap	Yes
Compatible products	GLC-LH-SMD
Mean time between failures (MTBF)	200000 h
Brand compatibility	Cisco
Country of origin	China
Power
Power consumption (typical)	1 W
Certificates
Compliance certificates	CE, RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Fiber ports quantity	1
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Weight & dimensions
Width	12 mm
Depth	58 mm
Height	8 mm
Weight	18 g
Package depth	118 mm
Package width	92 mm
Package height	32 mm
Package weight	95 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	92 mm
Package height	32 mm
Hot-swap	Yes
Auto MDI/MDI-X	Yes
Maximum transfer distance	10000 m
Wavelength	1310 nm
Duplex system	Full
Compatible products	GLC-LH-SMD
Compliance certificates	CE, RoHS
Ports & interfaces
Fiber ports quantity	1
Packaging data
Package depth	118 mm
Package width	92 mm
Package height	32 mm
Package weight	95 g
Logistics data
Quantity per pack	1 pc(s)
Country of origin	China
Master (outer) case width	259 mm
Master (outer) case length	307 mm
Master (outer) case height	201 mm
Products per master (outer) case	36 pc(s)
Harmonized System (HS) code	85369010
