StarTech.com HP J4859C Compatible SFP Transceiver Module - 1000BASE-LX~HPE J4859C Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode /Multi Mode Fiber Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM HPE 1400, 1700, 1820

StarTech.com HPE J4859C Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode (SMF)/Multi Mode (MMF) Fiber Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM HPE 1400 (J4859CST)

Key Features

• 100% HPE J4859C COMPATIBLE: Works with HPE switches like 1400, 1700, 1820, 2520, 2530 and others
• TECHNICAL SPECS: 1000BASE-LX / 1Gbps / Single Mode (SMF)/Multi Mode (MMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
• TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
• WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
• THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance

Description

1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

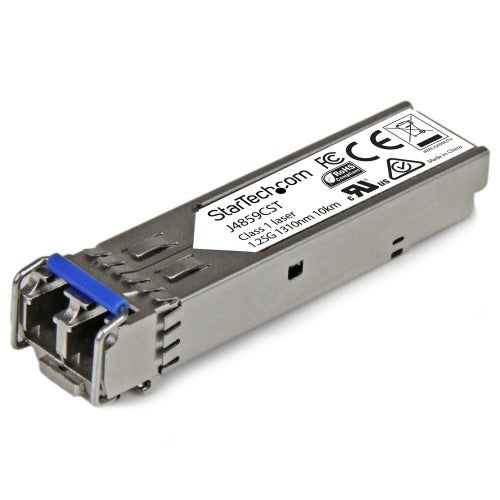

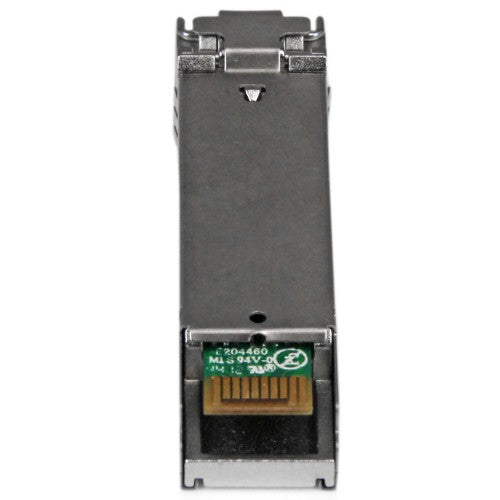

The J4859CST is an HPE J4859C compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode / Multi Mode Fiber

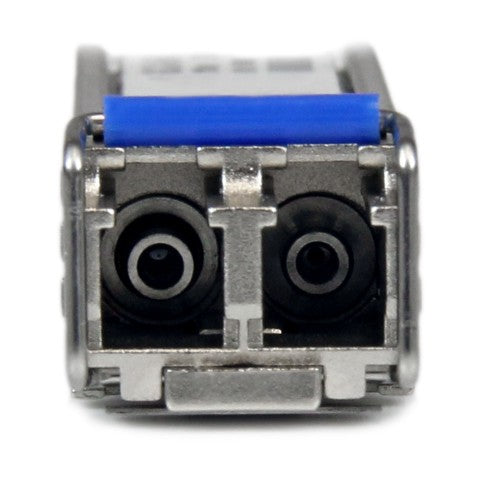

• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM
• MTBF: 3,092,408 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Performance
SFP transceiver type	Fiber optic
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Auto MDI/MDI-X	Yes
Maximum transfer distance	10000 m
Wavelength	1310 nm
Duplex system	Full
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Multi-mode fiber (MMF) supported	Yes
Country of origin	China
Product colour	Silver
Hot-swap	Yes
Mean time between failures (MTBF)	3092408 h
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Hot-swap	Yes
Mean time between failures (MTBF)	3092408 h
Country of origin	China
Certification	FCC, UL, CE
Power
Power consumption (typical)	1 W
Certificates
Certification	FCC, UL, CE
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Weight & dimensions
Width	14 mm
Depth	57 mm
Height	13 mm
Weight	16 g
Package depth	93 mm
Package width	118 mm
Package height	32 mm
Package weight	45 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	118 mm
Package height	32 mm
Hot-swap	Yes
Auto MDI/MDI-X	Yes
Maximum transfer distance	10000 m
Wavelength	1310 nm
Duplex system	Full
Compliance certificates	RoHS
Packaging data
Package depth	93 mm
Package width	118 mm
Package height	32 mm
Package weight	45 g
Logistics data
Quantity per pack	1 pc(s)
Country of origin	China
Master (outer) case width	347 mm
Master (outer) case length	412 mm
Master (outer) case height	355 mm
Products per master (outer) case	100 pc(s)
Harmonized System (HS) code	85369010
