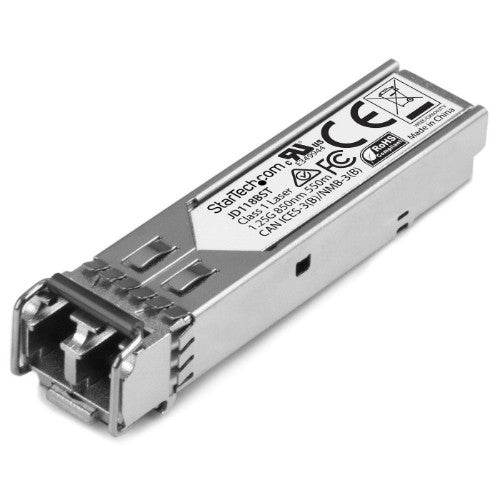

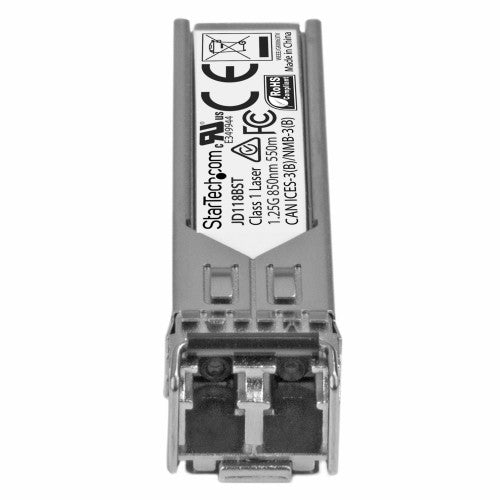

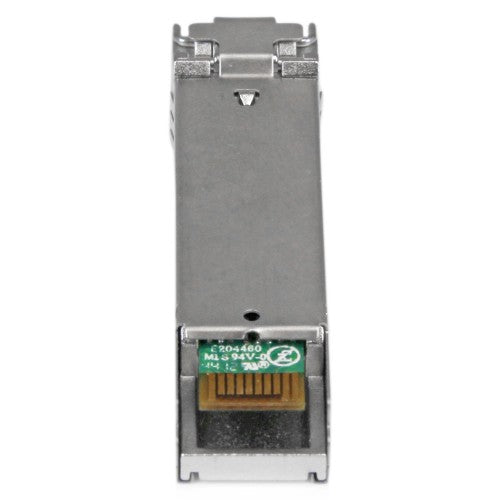

StarTech.com HP JD118B Compatible SFP Transceiver Module - 1000BASE-SX~HPE JD118B Compatible SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM HPE 5900, 12500, 5500

StarTech.com HPE JD118B Compatible SFP Module - 1000BASE-SX - 1GbE Multi Mode (MMF) Fiber Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM HPE 5900, 12500, 5500 (JD118BST)

Key Features

• 100% HPE JD118B COMPATIBLE: Works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others
• TECHNICAL SPECS: 1000BASE-SX / 1Gbps / Multi Mode (MMF) / LC Connector / 850nm / Digital Diagnostic Monitoring (DDM) / Distances up to 550m (1804ft)
• TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
• WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
• THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance

Description

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

The JD118BST is an HPE JD118B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).

Technical Specifications:

• Wavelength: 850 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 3,381,761 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Performance
SFP transceiver type	Fiber optic
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Maximum transfer distance	550 m
Wavelength	850 nm
Duplex system	Full
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SX
Country of origin	China
Product colour	Silver
Housing material	Aluminium
Hot-swap	Yes
Mean time between failures (MTBF)	3381761 h
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Housing material	Aluminium
Hot-swap	Yes
Mean time between failures (MTBF)	3381761 h
Country of origin	China
Certification	CE, FCC, UR
Power
Power consumption (typical)	1 W
Certificates
Certification	CE, FCC, UR
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3z
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Weight & dimensions
Width	13.7 mm
Depth	56.6 mm
Height	12.5 mm
Weight	18 g
Package depth	93 mm
Package width	118 mm
Package height	32 mm
Package weight	46 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	118 mm
Package height	32 mm
Hot-swap	Yes
Maximum transfer distance	550 m
Wavelength	850 nm
Duplex system	Full
Compliance certificates	RoHS
Packaging data
Package depth	93 mm
Package width	118 mm
Package height	32 mm
Package weight	46 g
Logistics data
Quantity per pack	1 pc(s)
Country of origin	China
Master (outer) case width	250 mm
Master (outer) case length	300 mm
Master (outer) case height	203 mm
Products per master (outer) case	36 pc(s)
Harmonized System (HS) code	85369010
