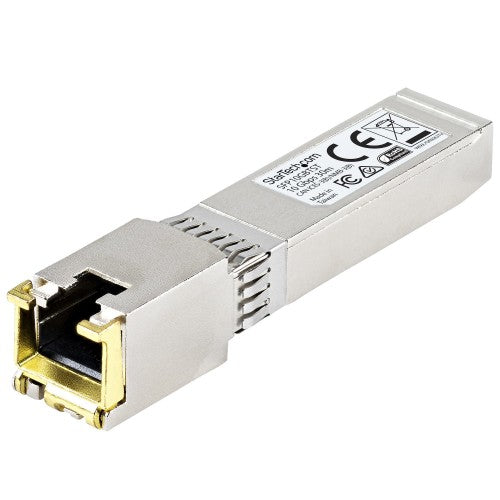

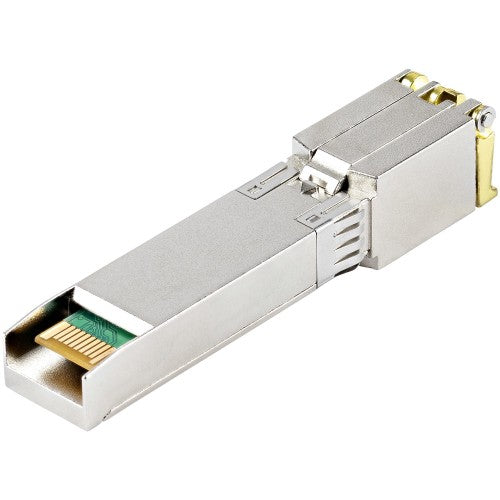

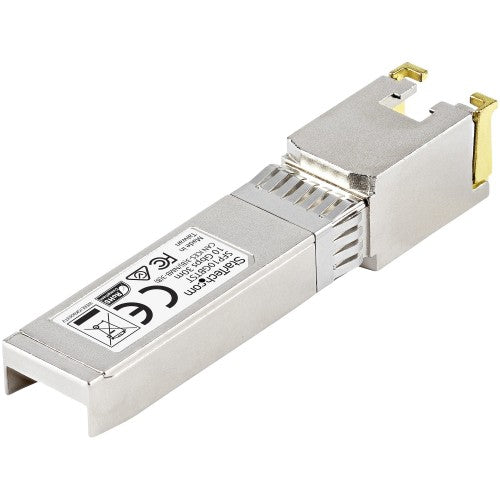

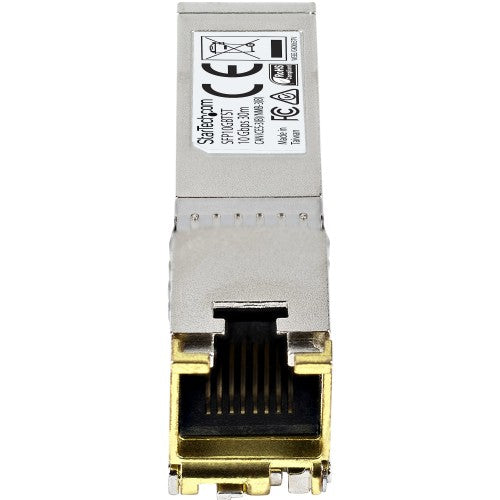

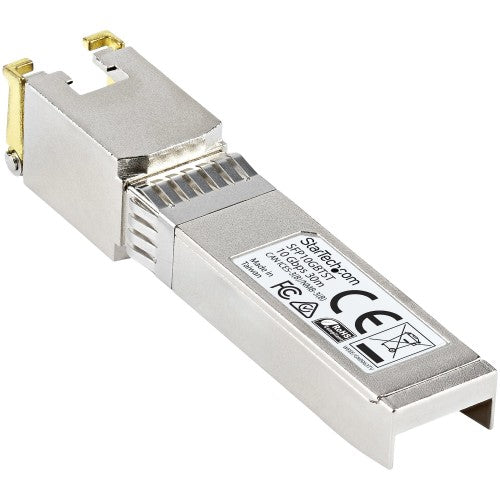

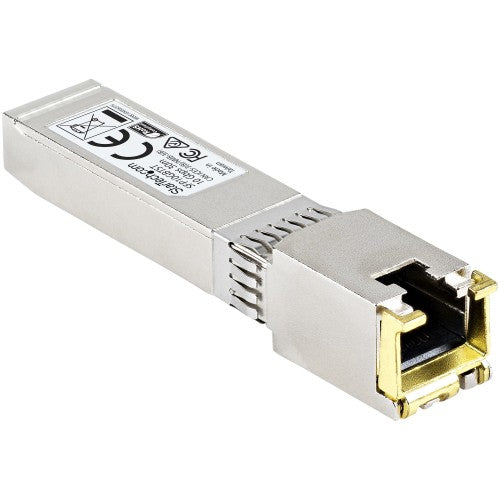

StarTech.com MSA Compliant SFP+ Transceiver Module - 10GBASE-T~MSA Uncoded SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m

StarTech.com MSA Uncoded Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m -(SFP10GBTST)

Key Features

• 100% MSA UNCODED SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 10GbE connectivity
• TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches
• WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
• THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance

Description

10 Gbps | Copper | RJ45 | 30 m (98.4 ft) | Lifetime Warranty

The SFP10GBTST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 10GBASE-T compatible switchess and routers. The SFP+ transceiver module supports a maximum distance of up to 30 m (98.4 ft.) and delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.

Technical Specifications:

• Maximum Data Transfer Rate: 10 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 30 m (98.4 ft.)
• MTBF: 4,598,430 hours DDM: No >

This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Performance
SFP transceiver type	Copper
Digital Diagnostics Monitoring (DDM)	No
Networking standards	IEEE 802.3an
Auto MDI/MDI-X	Yes
Ethernet LAN (RJ-45) ports	1
Maximum transfer distance	30 m
Duplex system	Full
Cabling technology	10GBASE-T
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Country of origin	China
Product colour	Silver
Housing material	Zinc steel
Hot-Plug support	Yes
Brand compatibility	MSA Compliant
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Housing material	Zinc steel
Hot-Plug support	Yes
Brand compatibility	MSA Compliant
Country of origin	China
Certification	CE, FCC
Power
Power consumption (typical)	2.3 W
Certificates
Certification	CE, FCC
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Network
SFP transceiver type	Copper
Networking standards	IEEE 802.3an
Ethernet LAN (RJ-45) ports	1
Cabling technology	10GBASE-T
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Weight & dimensions
Width	13.9 mm
Depth	70 mm
Height	12.6 mm
Weight	28 g
Package depth	120 mm
Package width	74 mm
Package height	30 mm
Package weight	60 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	74 mm
Package height	30 mm
Hot-Plug support	Yes
Auto MDI/MDI-X	Yes
Maximum transfer distance	30 m
Duplex system	Full
Cabling technology	10GBASE-T
Compliance certificates	RoHS
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Packaging data
Package depth	120 mm
Package width	74 mm
Package height	30 mm
Package weight	60 g
Logistics data
Quantity per pack	1 pc(s)
Country of origin	China
Master (outer) case width	345 mm
Master (outer) case length	385 mm
Master (outer) case height	305 mm
Products per master (outer) case	100 pc(s)
Harmonized System (HS) code	85369010
