TP-LINK

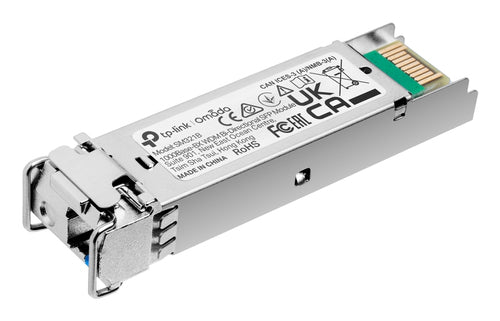

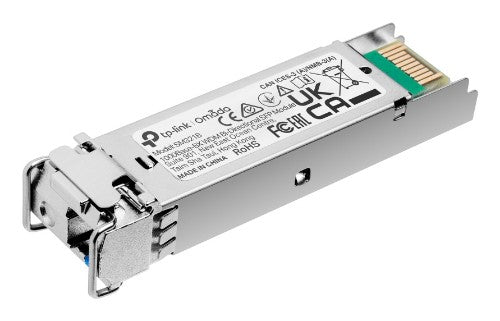

TP-Link Omada 1000Base-BX WDM Bi-Directional SFP Module

SKU SM321B
£13.05
£13.05
Excluding taxes
1.25 Gbps, 20 km max, LC, 55.4x14.6x12.9 mm

Key Features

  • WDM Bi-Directional SFP Module
  • Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving

Description

TP-Link´s SM321B (TL-SM321B) adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability.

Specifications

Performance
SFP transceiver type Fiber optic
Tx wavelength (max) 1310 nm
Rx wavelength (max) 1550 nm
Digital Diagnostics Monitoring (DDM) Yes
Maximum transfer distance 20000 m
Fiber cable diameters supported (core/cladding) 9/125 µm
Maximum data transfer rate 1250 Mbit/s
Interface type SFP
Single-mode fiber (SMF) supported Yes
Product colour Silver
Hot-swap Yes
Features
Product colour Silver
Hot-swap Yes
Certification FCC, CE
Power
Input voltage 3.3 V
Certificates
Certification FCC, CE
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Minimum operating temperature 0 °C
Maximum operating temperature 70 °C
Network
SFP transceiver type Fiber optic
Maximum data transfer rate 1250 Mbit/s
Interface type SFP
Weight & dimensions
Width 55.4 mm
Depth 14.6 mm
Height 12.9 mm
Packaging content
Quantity per pack 1 pc(s)
User guide Yes
Technical details
Hot-swap Yes
Maximum transfer distance 20000 m
Fiber cable diameters supported (core/cladding) 9/125 µm
Packaging data
User guide Yes
Logistics data
Quantity per pack 1 pc(s)
