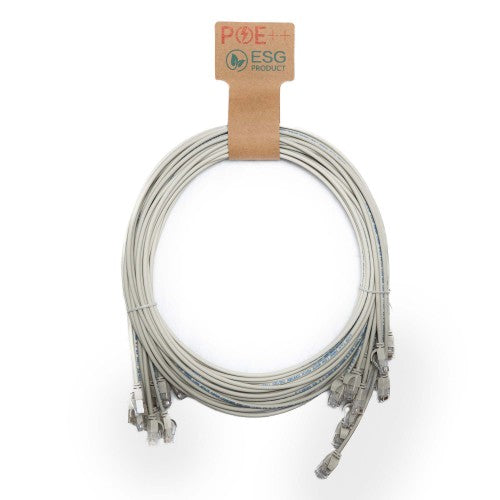

Cablenet 1m Cat6 RJ45 Grey U/UTP LSOH 30AWG Slim Snagless Booted Patch Lead (PK10)

1m Cat6 RJ45 Grey U/UTP LSOH 30AWG Slim Snagless Booted Patch Lead (PK10)

Key Features

• PoE++ Industry Rated Full Gold RJ45 Cat6 Connectors
• NOW WITH ZERO PLASTIC PACKAGING! These network patch leads now come in a pack of 10 up to a length of 3m with a recyclable cardboard tie
• 35% thinner than standard Cat6 Patch Lead - 3.8mm Slimline compared to 5.8mm for Standard
• 30AWG Stranded Copper Cable
• Cat6 supports 10BASE-T, 100BASE-TX, 1000BASE-T, and 10GBASE-T standards for frequencies up to 250 MHz, and it can handle up to 10 Gbps where the cable does not exceed 55 meters (including patch leads).
• RAL Number 7044

Description

Cablenet Category6 LSOH SlimLine U/UTP Bulk leads are manufactured, tested and verified to the ISO 11801 Class E and ANSI/EIA/TIA standards for enhanced performance.

They are constructed with IEC 60603-7 RJ45 connectors that use our "Full Gold"* RJ45 connector and a high quality PoE++ certified cable.

Other lengths and colours are available in the bulk pack options, please contact our sales team for more information.

All our cables can be used with the current IEEE 802.3 PoE Standards - 802.3af, 802.3at, 802.3bt Type 3, and 802.3bt Type 4.

*"Full Gold" is a TM of Cablenet Trading for their RJ45 plugs constructed with 50µm gold-plated connectors

Specifications

Features
Product colour	Grey
Snagless cable boot	Yes
Connector shielding	No
Conductor material	Copper
Water-resistant	No
Suitable for outdoor use	No
Moisture-resistant	No
Molded cable boot	Yes
Connector gender	Male/Male
AWG wire size	30
Plug and Play	Yes
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Cable type	Straight-through cable
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Jacket material	Low smoke zero halogen (LSZH)
Conductor type	Stranded
Cable length	1 m
Power over Ethernet (PoE)	Yes
Fire-resistant	No
Cable shape	Round
Connector 2 gender	Male
Connector 1 gender	Male
Connector 2 form factor	Straight
Connector 1 form factor	Straight
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Weight & dimensions
Outer diameter	3.8 mm
Packaging content
Quantity per pack	10 pc(s)
Technical details
Product colour	Grey
Plug and Play	Yes
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Jacket material	Low smoke zero halogen (LSZH)
Conductor type	Stranded
Cable length	1 m
Packaging data
Quantity per pack	10 pc(s)
Other features
Cable type	Straight-through cable
