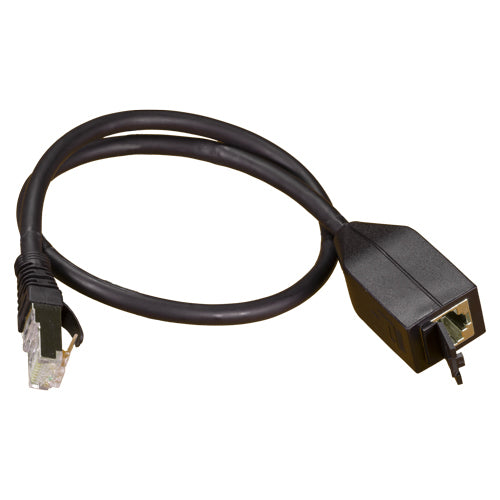

Cablenet 1m MPTL Cat6a Black S/FTP LSOH 26AWG Cable Adaptor

1m MPTL Cat6a Black S/FTP LSOH 26AWG Cable Adaptor

Key Features

• 1m
• 50 micron gold plated contacts
• Cat6a (backwards compatible)
• MPTL is recognised by the TIA standards
• Designed for IoT and smart buildings.

Description

MPTL Cable adapters are designed for use in connecting IP devices to the network, including cameras, wireless access points and PoE lighting systems.

Allow fast, easy deployment of remote devices when the length of connection is unknown. Easy and quick to use with adds, moves and changes and are much less disruptive.

MPTL leads improve security by eliminating visible and accessible patch leads that can be intentionally or unintentionally disconnected from a device. Ideal for publicly mounted access points or surveillance cameras.

They can be used as intermediate connection points between the ceiling consolidation points, ready for when the end devices are installed.
They also eliminate the need to use field terminated RJ45 plugs to connect directly to end devices.

Specifications

Technical details
Product colour	Black
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Jacket material	Low smoke zero halogen (LSZH)
Conductor type	Stranded
Cable length	1 m
Features
Product colour	Black
Conductor material	Copper
Connector gender	Male/Female
AWG wire size	26
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Jacket material	Low smoke zero halogen (LSZH)
Conductor type	Stranded
Cable length	1 m
Cable shape	Round
Connector 2 gender	Female
Connector 1 gender	Male
