Cablenet Cat6 Grey F/UTP LSOH 24AWG Solid CPR Dca Cable 305m Reel in Box

Cat6 Grey F/UTP LSOH 24AWG Solid CPR Dca Cable 305m Reel in Box

Key Features

• Cat6 F/UTP Solid Core Cable
• Grey Sheath
• Metre Marked - For Easy Measuring
• Dca CPR Compliant
• Supplied as a reel in a box

Description

The Maxxam Cat6 F/UTP 4 pair shielded cable offers Cat6 standards compliant performance and supports high speed protocols up to 1G Ethernet.

The cable can be used for permanent installations and flood wiring of buildings and supports all the IP applications designed to run over Cat6.

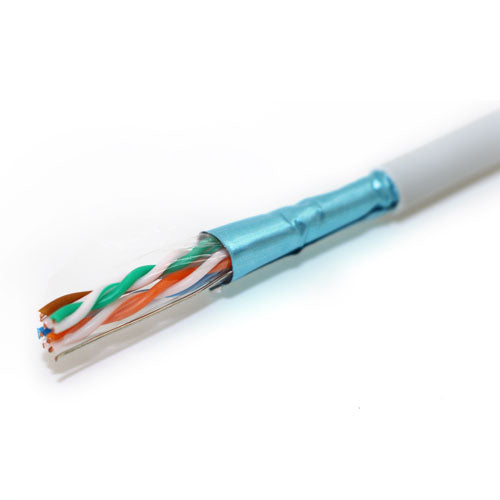

The U/UTP construction consists of eight colour coded 24AWG polyethylene insulated conductors which are twisted together into 4 pairs, is surrounded by a foil shield and placed around a central plastic separator that ensures excellent NEXT performance.
Supplied in a 305m Reelex Box, multiple cables are easily installed without the need for axle stands and the 305m to 1m cable metre marking makes it easy to determine precisely how much cable remains in a box.

It has a CPR Rating Dca-s1a,d1,a1 with a Low Smoke Zero Halogen Grey Jacket to IEC60332-1.

Specifications

Technical details
Product colour	Grey
Cable standard	Cat6
Cable shielding	F/UTP (FTP)
Connector 1	No
Connector 2	No
Jacket material	Low smoke zero halogen (LSZH)
Conductor type	Solid
Cable length	305 m
Cable diameter	7.4 mm
Features
Product colour	Grey
Conductor material	Copper
Connector gender	No
AWG wire size	24
Cable standard	Cat6
Cable shielding	F/UTP (FTP)
Connector 1	No
Connector 2	No
Jacket material	Low smoke zero halogen (LSZH)
Conductor type	Solid
Cable length	305 m
Cable shape	Round
Connector 2 gender	No
Connector 1 gender	No
Cable fire class	Dca
Other features
Cable diameter	7.4 mm
