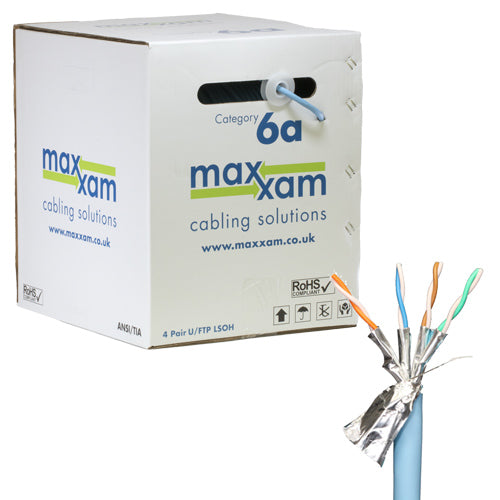

Cat6a Ice Blue F/FTP LSOH 23AWG Solid CPR B2ca Cable 305m Reel in Box
The cable is backwards compatible to all preceding cabling categories, ensuring support of all IP applications designed to run over them.
The F/FTP construction does away with the need for a plastic central separator, making the cable more flexible and easier to pull in.
The individually foil shielded pairs ensure excellent NEXT performance whilst eliminating the risk of Alien crosstalk and means that a much lower twist rate can be used when compared to a U/UTP or F/UTP construction, thus making termination quicker and easier.
The overall diameter of just 7.5mm enables tighter bend radii (just 30mm after installation) and facilitates the installation of more cables in a given size of containment when compared to cables with a F/UTP construction.
Comes in Ice Blue and supplied in 305m Reel-In-A-Box.
Multiple cables are easily installed without the need for axle stands and the 305m to 1m cable meter markings make it easy to determine precisely how much cable remains in a box.
Key Features
- Cat6a F/FTP Solid Core Cable
- Ice Blue Sheath
- Metre Marked - For Easy Measuring
- B2ca CPR Compliant
- Supplied as a reel in a box
Description
The Maxxam Cat6a F/FTP Shielded Cable offers Cat6a standard compliant performance and supports high speed protocols such as 10G Ethernet.The cable is backwards compatible to all preceding cabling categories, ensuring support of all IP applications designed to run over them.
The F/FTP construction does away with the need for a plastic central separator, making the cable more flexible and easier to pull in.
The individually foil shielded pairs ensure excellent NEXT performance whilst eliminating the risk of Alien crosstalk and means that a much lower twist rate can be used when compared to a U/UTP or F/UTP construction, thus making termination quicker and easier.
The overall diameter of just 7.5mm enables tighter bend radii (just 30mm after installation) and facilitates the installation of more cables in a given size of containment when compared to cables with a F/UTP construction.
Comes in Ice Blue and supplied in 305m Reel-In-A-Box.
Multiple cables are easily installed without the need for axle stands and the 305m to 1m cable meter markings make it easy to determine precisely how much cable remains in a box.
Specifications
| Technical details | |
|---|---|
| Product colour | Blue |
| Cable standard | Cat6a |
| Cable shielding | F/FTP (FFTP) |
| Connector 1 | No |
| Connector 2 | No |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 305 m |
| Cable diameter | 7.5 mm |
| Features | |
| Product colour | Blue |
| Conductor material | Copper |
| Connector gender | No |
| AWG wire size | 23 |
| Cable standard | Cat6a |
| Cable shielding | F/FTP (FFTP) |
| Connector 1 | No |
| Connector 2 | No |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor type | Solid |
| Cable length | 305 m |
| Cable shape | Round |
| Connector 2 gender | No |
| Connector 1 gender | No |
| Cable fire class | B2ca |
| Other features | |
| Cable diameter | 7.5 mm |
-
