StarTech.com HP JD089B Compatible SFP Transceiver Module - 10/100/1000BASE-TX~HPE JD089B Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m - HPE 5820AF, 12500, 5500

StarTech.com HPE JD089B Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m - HPE 5820AF, 12500, 5500 (JD089BST)

Key Features

• 100% HPE JD089B COMPATIBLE: Works with HPE switches like 5820AF, 12500, 5500, E4800, E4500 and others
• TECHNICAL SPECS: 1000BASE-T / 1Gbps / Copper / RJ-45 Connector / Distances up to 100m (328ft)
• TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches
• WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
• THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance

Description

10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty

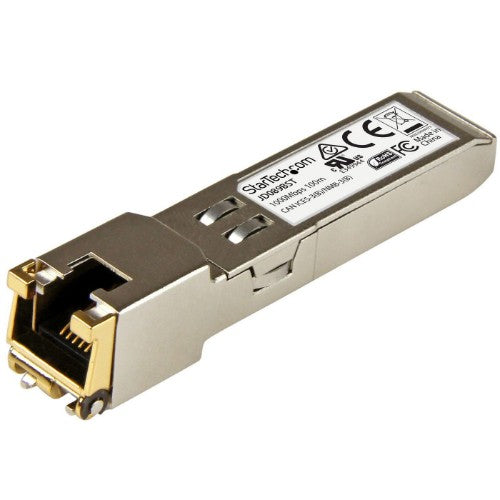

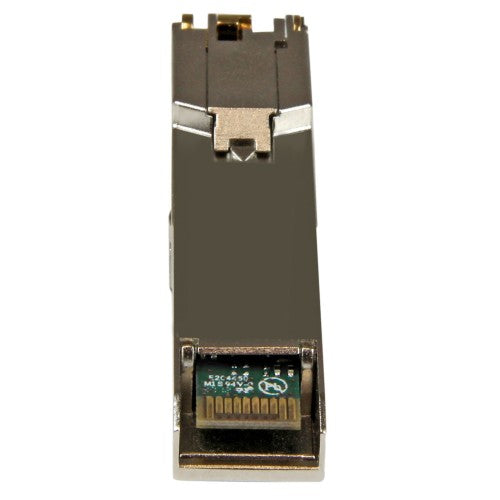

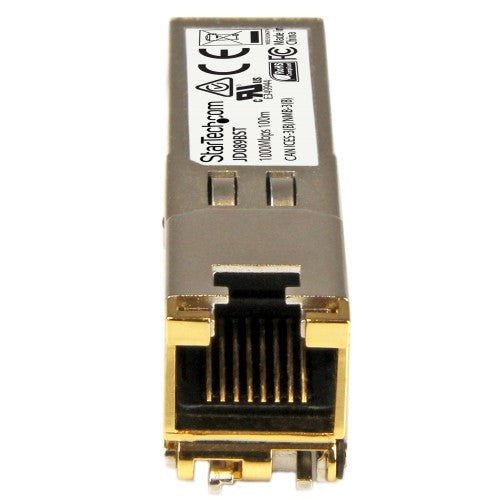

The JD089BST is an HPE JD089B compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).

Technical Specifications:

• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No

This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Performance
SFP transceiver type	Copper
Digital Diagnostics Monitoring (DDM)	No
Auto-negotiation	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X	Yes
Ethernet LAN (RJ-45) ports	1
Maximum transfer distance	100 m
Duplex system	Full
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Country of origin	China
Product colour	Silver
Housing material	Aluminium
Hot-swap	Yes
Mean time between failures (MTBF)	4655371 h
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Housing material	Aluminium
Hot-swap	Yes
Mean time between failures (MTBF)	4655371 h
Country of origin	China
Certification	CE, FCC, UR
Power
Power consumption (typical)	1.3 W
Certificates
Certification	CE, FCC, UR
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Network
SFP transceiver type	Copper
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Weight & dimensions
Width	13.7 mm
Depth	68 mm
Height	13.8 mm
Weight	25 g
Package depth	93 mm
Package width	119 mm
Package height	35 mm
Package weight	54 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	119 mm
Package height	35 mm
Hot-swap	Yes
Auto MDI/MDI-X	Yes
Maximum transfer distance	100 m
Duplex system	Full
Compliance certificates	RoHS
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Packaging data
Package depth	93 mm
Package width	119 mm
Package height	35 mm
Package weight	54 g
Logistics data
Quantity per pack	1 pc(s)
Country of origin	China
Master (outer) case width	350 mm
Master (outer) case length	410 mm
Master (outer) case height	355 mm
Products per master (outer) case	100 pc(s)
Harmonized System (HS) code	85369010
