ASUS PL64 Intel® Celeron® 7305 8 GB DDR4-SDRAM 128 GB SSD Windows 11 Pro Mini PC Black

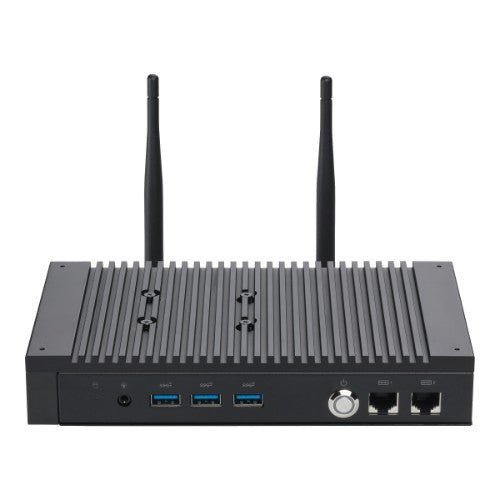

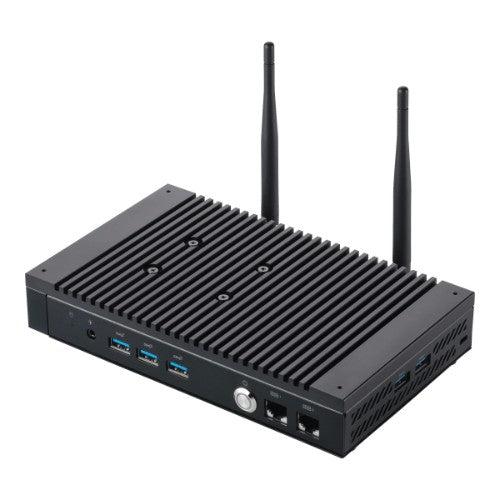

Mini PC PL64

Key Features

• Fan-less design for 15-watt CPU while minimizing noise and dust ingress
• 4K triple-display support via HDMI with EDID emulation and virtual display
• Slim and compact, measuring just 199.7 x 119.7 x 33.9 mm
• Comprehensive I/O ports including dual COM, dual LAN with 1x 2.5G and up to five USB ports
• Support up to up to 2x M.2 PCIe Gen4x4 SSD
• Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
• Provide plenty of mounting solution including wall mount, din rail, VESA and rack mount
• Support up to 50°C operational ambient temperature
• 24/7 reliability — Extensively tested to ensure long-term dependability

Reasons To Buy

Introducing ASUS PL64-D1 Mini PCs

ASUS PL series mini PCs are designed mainly for indoor industrial applications. PL series mini PCs are subjected to strict testing standards, offer legacy connectivity and long product life cycles to cater to a diverse range of uses.

Fanless Chassis Design with TDP 15W Support

ASUS Mini PC PL64-D1 is designed with fanless chassis. The fanless design lowers operational noise and minimizes dust ingress into the chassis to prolong the product life cycle. Even more, PL64-D1 supports up to 15-watt CPU, all makes PL64-D1 ideal for industrial applications where reliability, durability and low noise levels are paramount.

Optimized Cooling Design

To ensure optimal performance to the surrounding environment, PL64-D1 features a cooling system that are connected to a top heatsink for efficient heat dissipation, allowing it to function in up to 50°C* operational ambient temperature environments without compromising performance.
*Only for models that support 16 GB memory and below, other models support 35°C operational ambient temperature.

Compact Size with Metal Chassis

The ASUS Mini PC PL64-D1 is an ultra-compact device, measuring a mere 199.7 x 119.7 x 33.9 mm with a 0.81-liter chassis. Its small footprint allows for seamless integration in space-constrained environments. Furthermore, the PL64-D1 boasts a durable metal chassis, rendering it perfect for industrial applications.

Triple 2.5GbE LAN Ports

Mini PC PL64-D1 is equipped with triple LAN for dividing networks or for redundancy. All 3 LAN ports support up to 2.5G. 2.5GBase-T (2.5G) networking technology to deliver speeds of up to 2.5Gbps -2.5X faster than standard gigabit Ethernet. It enables ultra-fast 2.5Gbps network access for desktop PCs, so you can easily handle the most data-intensive tasks for your needs.

Triple PoE+ (Power over Ethernet)

All LAN ports on the PL64-D1 support PoE+ with up to 30W power output. PoE (Power over Ethernet) technology enables the delivery of both network connection and power to devices through Ethernet cables. This simplifies cabling concerns and significantly reduces the time and costs associated with installation and maintenance.

Exceptional Connection Experience Wi-Fi 6 & Wi-Fi 6E*

Equipped with Wi-Fi 6E module, ASUS Mini PC PL64-D1 enables smooth streaming of high resolution videos, fewer dropped connections, and faster connections farther way from the router even in dense environment. And Wi-Fi 6E is the expanded version of Wi-Fi 6 to support extra high-speed 160MHz channels*.

Productivity

4K Resolution & Triple Display Support
Mini PC PL64-D1 is equipped with Intel® Iris® Xe Graphics (i5/i7) or Intel® UHD Graphics (i3/Celeron) to display videos and images in stunning 4K resolution. PL64-D1 can support up to three 4K displays simultaneously via HDMI® ports, makes it excellent for digital signage, billboard and advertising applications.

Advanced Output Management

EDID Emulation
ASUS Mini PC PL64-D1 features EDID (Extended Display Identification Data) emulation, it retains your signage format regardless of display power or connectivity interruptions. With EDID emulation, you can get your fine signage content back after display is temporary disconnected or connected. It makes PL64-D1 perfectly fit for signage usages.

Versatile Mounting Options

Mini PC PL64-D1 is compatible with VESA, wall, rack, and other mounts for versatile mounting options*.
* PL64 is compatible with din rail and rack mount, but only wall mount and VESA mount are available for now.

Kensington Lock For Security

A Kensington Lock guards against theft when Mini PC PL64-D1 is placed in public spaces. We can arrange this in any number of ways, but I would avoid the word 'matters' edited.

Easy Upgrade in 2 Steps

All the memory, storage, and wireless card are easy upgrade in 2 easy steps using only a screwdriver. The key parts are easy accessed after lift the cover.
1. Remove screws
Completely loosen the six screws from the bottom cover.
2. Lift and Open!
Open case design for easily upgrade

Description

Ultraslim computer with Intel® Celeron™ processors, fan-less chassis for 15W CPU, 4K triple-display support, dual LAN, dual COM ports, PCIe® Gen 4 SSD, WiFi 6E, 50°C operational ambient temperature

Specifications

Processor
Processor model	7305
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Memory
Internal memory	8 GB
Maximum internal memory	32 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR4-SDRAM
Storage
Storage media	SSD
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	128 GB
Total storage capacity	128 GB
Storage options	Included: 128GB M.2 NVMe™ PCIe® 4.0 SSD storage, Support: 256GB~2TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD *Support RAID 0/1
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
Performance
Product type	Mini PC
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	3
Power
Power supply	65 W
Technical details
Product type	Mini PC
Product colour	Black
Chassis type	Mini PC
Storage options	Included: 128GB M.2 NVMe™ PCIe® 4.0 SSD storage, Support: 256GB~2TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD *Support RAID 0/1
Design
Product colour	Black
Chassis type	Mini PC
Certified refurbished	No
Software
Operating system installed	Windows 11 Pro
Display
Display included	No
Weight & dimensions
Width	199.7 mm
Depth	119.7 mm
Height	33.9 mm
Weight	1 kg
Packaging content
Display included	No
Other features
On-board graphics card	Yes
Processor manufacturer	Intel
Storage options	Included: 128GB M.2 NVMe™ PCIe® 4.0 SSD storage, Support: 256GB~2TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD *Support RAID 0/1
