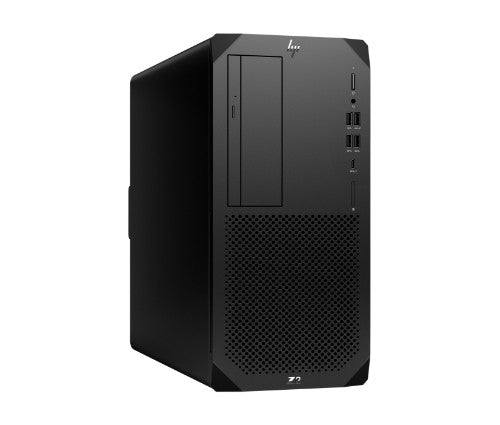

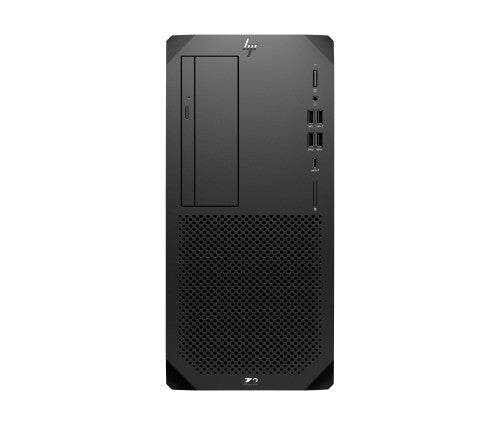

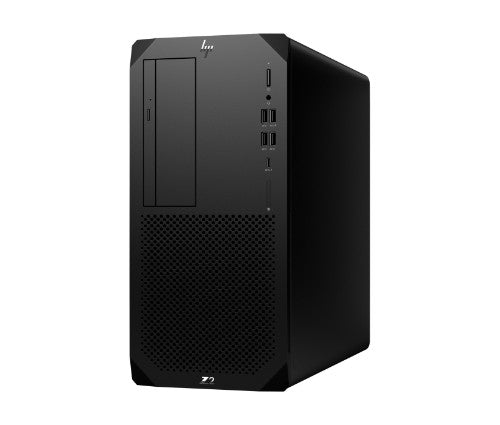

HP Z2 G9 Intel® Core™ i7 i7-14700 64 GB DDR5-SDRAM 2 TB SSD NVIDIA RTX A2000 Windows 11 Pro Tower Workstation AI Workstation Black

Z2 Tower G9 Workstation, Windows 11 Pro, Intel Core™ i7, 64GB RAM, 2TB SSD, NVIDIA RTX™ A2000, AI Workstation

Key Features

• Intel Core™ i7-14700 (up to 5.4 GHz with Intel Turbo Boost Technology, 33 MB L3 cache, 20 cores, 28 threads)
• Windows 11 Pro
• NVIDIA RTX™ A2000 (6 GB GDDR6 dedicated)
• 64 GB DDR5-4800 MT/s (4 x 16 GB), 2 TB HP Z Turbo Drive PCIe Gen4 TLC M.2 SSD

Reasons To Buy

Your new benchmark for entry workstation power

Designed for zero throttling so you can render, simulate, and real-time ray trace without overheating or lags.

Built to expand. Power to grow

With room to expand and tool-less access, you can easily upgrade and add components as your needs evolve.

Intel® Core™ i7 processor

Run several CPU–heavy programs simultaneously without sacrificing performance with an Intel® Core™ i7 processor.^[4]

ISV Certified

Work with confidence knowing your PC is certified with leading software applications to ensure peak performance^[3]

Windows 11

Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.

Smaller, Functional Design

The stunning new design features front and rear ledges, so you can easily move your system from location to location.

Tool-less Access

Evolve your work. Evolve your rig. With a tool-less sliding access cover, you can easily get into the the interior, and customize your Z to fit your needs.

Thermal Management

Innovatively designed to keep hardware components cool and quiet no matter how hard you push it. Have confidence to run your system at max load 24/7.

Unthrottled Performance

Z's industry-leading thermals keep the processor and graphics card cool, so they can run at max performance for extended periods of time.

Dust Filter

Help keep your system clean while sitting on the factory floor or machining environment with the front-access dust filter.^[5]

Sanitizable

Designed to be wiped down using many commonly available household disinfecting and cleaning wipes using the HP cleaning guidelines.^[6]

Description

Pro-power. Today and tomorrow
Experience a whole new level of performance for your professional workflow. The Z2 Tower is engineered to seamlessly run multi-threaded apps for fast rendering, simulation, and now real-time ray tracing. And when your demands change, you have impressive expandability to upgrade.

Specifications

Processor
Processor generation	Intel® Core™ i7 (14th gen)
Processor cache type	L3
Processor cache	33 MB
Processor model	i7-14700
Processor manufacturer	Intel
Processor boost frequency	5.4 GHz
Processor threads	28
Processor cores	20
Processor family	Intel® Core™ i7
Performance cores	8
Efficient cores	12
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.5 GHz
Processor base power	65 W
Maximum turbo power	219 W
Efficient-core Max Turbo Frequency	4.2 GHz
Performance-core Max Turbo Frequency	5.3 GHz
Memory
Non-ECC	Yes
ECC	No
Memory layout (slots x size)	4 x 16 GB
Internal memory	64 GB
Maximum internal memory	128 GB
Memory slots	4x DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	2 TB
Number of SSDs installed	1
Total storage capacity	2 TB
SSD memory type	TLC
SSD form factor	M.2
Total SSDs capacity	2 TB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	6 GB
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
Discrete graphics card model	NVIDIA RTX A2000
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel UHD Graphics 770
Number of discrete graphics cards	1
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	3
Line-out	Yes
Line-in	Yes
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
DisplayPort version	1.4
Expansion slots
PCI Express x1 (Gen 3.x) slots	2
PCI Express x4 (Gen 3.x) slots	2
PCI Express x16 (Gen 5.x) slots	1
Technical details
Number of 2.5" bays	1
Product type	Workstation
Intel® Turbo Boost Technology	Yes
Product colour	Black
Chassis type	Tower
Number of 5.25" bays	1
Number of 3.5" bays	2
Motherboard chipset	Intel W680
UNSPSC-code	43211515
Memory module type	UDIMM
Sustainable technologies and materials	80 Plus® Gold power supplies available; Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; 45% post-consumer recycled plastic; 10% ITE-derived closed loop plastic; Low halogen PCAs; Product Carbon Footprint; Ocean-bound plastic in system fan, processor fan and speaker
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT, TCO
General Product Safety Regulation (GPSR) URL	https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://h10032.www1.hp.com/ctg/Manual/c08154349.pdf
HP GTIN (EAN/UPC)	198415090539
Design
Number of 2.5" bays	1
Product colour	Black
Chassis type	Tower
Number of 5.25" bays	1
Number of 3.5" bays	2
Country of origin	Czech Republic
Introduction year	2024
Performance
Audio chip	Realtek ALC3205-VA2-CG
Market positioning	Performance
Number of speakers	1
Password protection	Yes
Password protection type	BIOS, Power on
Product type	Workstation
Built-in speaker(s)	Yes
Motherboard chipset	Intel W680
Harmonized System (HS) code	8471500000
Software
Pre-installed software	HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; Performance Advisor 3.0
Operating system installed	Windows 11 Pro
Processor special features
Intel® Turbo Boost Technology	Yes
Brand-specific features
HP Support Assistant	Yes
HP Security tools	HP Secure Erase; HP Sure Click; HP BIOSphere Gen6; HP Sure Admin; Hood Sensor Optional Kit; HP Client Security Manager Gen6; HP Sure Start Gen7; HP Sure Recover Gen4; HP Sure Sense Gen2; HP Sure Run Gen5
HP Management tools	HP Driver Packs; HP Management Integration Kit for Microsoft System Center Configuration Management Gen4; HP System Software Manager (download); HP BIOS Configuration Utility (download)
HP Software provided	HP PC Hardware Diagnostics UEFI; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit
HP segment	Business
HP Artificial Intelligence	AI Workstation
HP GTIN (EAN/UPC)	198415090539
Power
Power supply	700 W
Certificates
Low halogen	Yes
Sustainability
Sustainable technologies and materials	80 Plus® Gold power supplies available; Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; 45% post-consumer recycled plastic; 10% ITE-derived closed loop plastic; Low halogen PCAs; Product Carbon Footprint; Ocean-bound plastic in system fan, processor fan and speaker
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT, TCO
Weight & dimensions
Package width	518 mm
Package depth	295 mm
Package height	490 mm
Width	356 mm
Depth	169 mm
Height	356 mm
Package weight	9.83 kg
Weight	7.2 kg
Packaging data
Package width	518 mm
Package depth	295 mm
Package height	490 mm
Package weight	9.83 kg
Packaging content
Numeric keypad	No
Mouse included	Yes
Display included	No
Keyboard included	Yes
Input device model	HP Wired 320M Mouse
Keyboard connectivity	Wired
Display
Display included	No
Audio
Audio chip	Realtek ALC3205-VA2-CG
Number of speakers	1
Keyboard
Keyboard connectivity	Wired
Logistics data
Harmonized System (HS) code	8471500000
Supplier features
Manufacturer warranty	3 year (3/3/3) limited warranty includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
Features
Country of origin	Czech Republic
Other features
Number of speakers	1
On-board graphics card	Yes
Processor manufacturer	Intel
Built-in speaker(s)	Yes
UNSPSC-code	43211515
Memory module type	UDIMM
Country of origin	Czech Republic
Harmonized System (HS) code	8471500000
Manufacturer warranty	3 year (3/3/3) limited warranty includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
