StarTech.com 2-Port Gigabit Midspan PoE+ Injector, 10/100/1000Mbps, PoE+ (802.3af/at), 30W, 1Gbps Ethernet, Wall Mountable, Unmanaged Inline Power Over Ethernet

StarTech.com 2-Port PoE+ Injector, 10/100/1000Mbps, PoE/PoE+ (802.3af/at), 4x 10/100/1000BASE-T RJ45, 30W, Wall Mountable

Key Features

• TWO-PORT POE+ INJECTOR: Power Sourcing Equipment provides up to 30W PoE/PoE+ and 1Gbps to two Powered devices; Level-4 ESD protection (15kV air and 8kV contact) and LAN transformer enhance device safety and maintain signal quality with reduced EMI
• NETWORK COMPATIBILITY: Auto-negotiation between 10/100/1000Mbps; Deliver data and power to up to two Powered Devices (PDs) up to 328ft (100m) with Cat5/5e/6/6a cabling; Surge protection up to 2kV
• HASSLE-FREE INSTALLATION: Wall-mountable w/front facing mounting ears and screw holes molded into the housing; Streamline deployment without additional software; Connect the PoE injector to the network (switch/router)/remote PD via standard cabling
• APPLICATIONS: Provides more power and bandwidth over 2x RJ45 interfaces to demanding PoE devices such as IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points; Compatible w/1000Base-T/100Base-TX/10Base-T Ethernet
• TECH SPECS: 4x RJ45 ports (2x data input, 2x data output + power); 30W max output, 52V 0.580A output per port; Compliant with IEEE 802.3af and IEEE 802.3at; 10/100/1000Mbps & 1Gbps; 9K jumbo frames; Dimensions 3.2x1x1.8-inch (82x25x46mm)

Description

Supply power and data to two PoE devices over standard Ethernet cabling

This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).

Versatile PoE Injector

Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.

Streamlined Cable Management

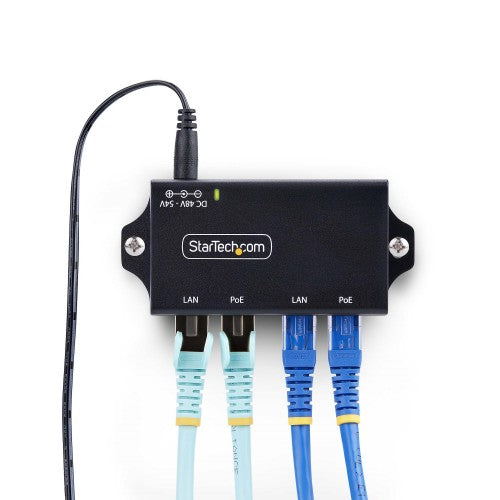

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.

The StarTech.com Advantage

Specifications

Network
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at
Auto MDI/MDI-X	Yes
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,1000,100 Mbit/s
Ethernet interface type	Gigabit Ethernet, Fast Ethernet
Cabling technology	10/100/1000
Web-based management	No
Chipset	IC Plus - IP802AR
Features
Wall mountable	Yes
Surge protection	Yes
Maximum operating distance	100 m
Product colour	Black
LED indicators	Yes
Housing material	Plastic
Jumbo frames support	Yes
Jumbo frames	9000
Auto-negotiation	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at
Ports & interfaces
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	4
RJ-45 input ports	2
RJ-45 output ports	2
Power
Output power	30 W
Output current	1.25 A
Power consumption (max)	65 W
Total Power over Ethernet (PoE) budget	30 W
AC adapter output voltage	52 V
Input current	1.5 A
AC adapter input voltage	100 - 240 V
Power plug type	Type M
Suitable for use in country/location	Europe, United Kingdom
Surge protection voltage	2 kV
Certificates
Compliance certificates	RoHS
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Weight	60 g
Width	46 mm
Depth	102 mm
Height	25 mm
Package weight	105 g
Package depth	144 mm
Package width	207 mm
Package height	38 mm
Packaging content
Quick installation guide	Yes
Packaging data
Package weight	105 g
Package depth	144 mm
Package width	207 mm
Package height	38 mm
Technical details
Package width	207 mm
Package height	38 mm
Power over Ethernet (PoE)	Yes
Input current	1.5 A
Ethernet LAN data rates	10,1000,100 Mbit/s
Ethernet interface type	Gigabit Ethernet, Fast Ethernet
Compliance certificates	RoHS
Indication
LED indicators	Yes
Logistics data
Master (outer) case width	440 mm
Master (outer) case length	420 mm
Master (outer) case height	320 mm
Products per master (outer) case	40 pc(s)
