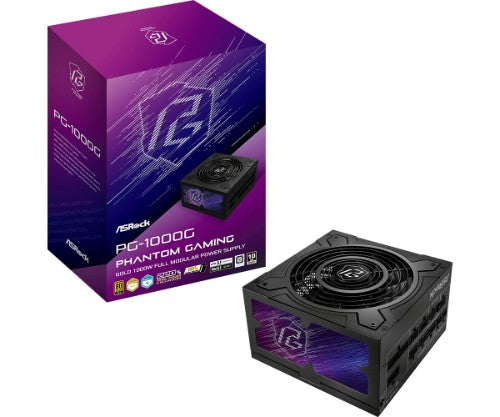

Asrock PG-1000G power supply unit 1000 W 24-pin ATX ATX Black

PG-1000G

Key Features

• 80 PLUS® GOLD Certified
• Cybenetics GOLD and LAMBDA A Certified
• ATX3.1 & PCIe5.1 Ready

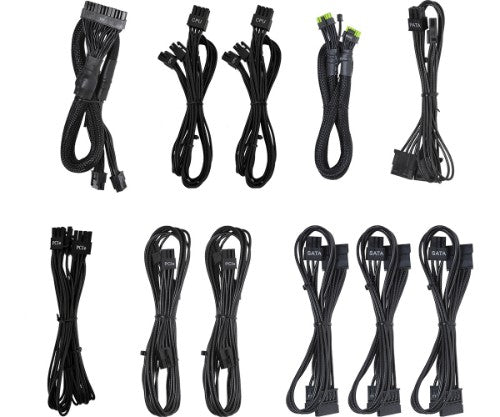

• Fully Modular Cable Design

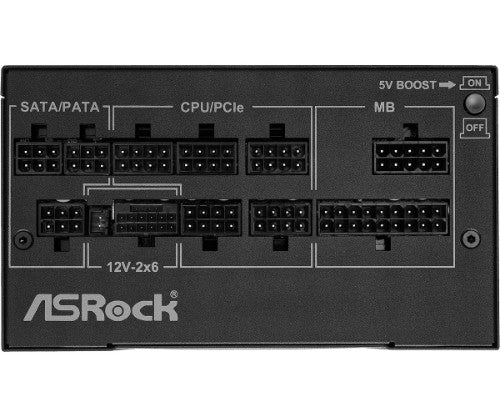

• Native 12V-2x6 Connector Dual Color Design with TempGuard
• 100% Highly Reliable Japanese Capacitors

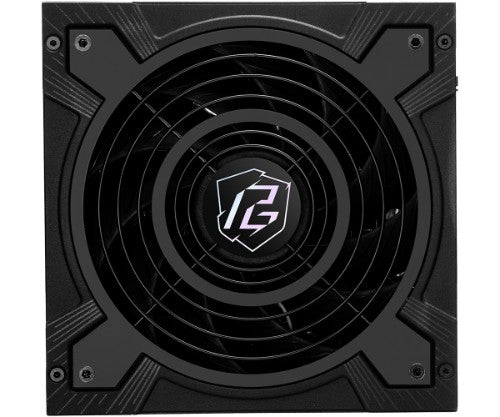

• 135mm Striped Axial FDB Fan

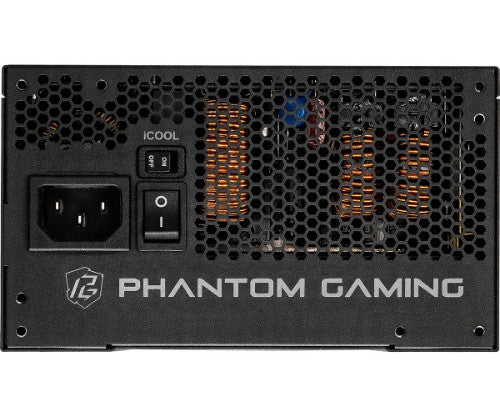

• iCool Intelligent Fan Control Mode
• 5V BOOST Mode

Description

BE READY FOR ATX 3.1 & PCIe 5.1
The ASRock Phantom Gaming series power supply supports both current and future standards, fully compliant with ATX12V V3.1 and PCIe Gen 5.1. Ideal for both current systems and future builds, this power supplies can handle up to 220% power excursion and respond swiftly to power spikes, ensuring reliable, safe power for your components.

Voltage Compensation Mechanism
When this switch is enabled, it boosts the +5V voltage to maintain optimal performance.
If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.15V, ensuring consistent power delivery.

80 PLUS & CYBENETICS CERTIFIED
Designed for gaming enthusiasts, the Phantom Gaming series power supply unit with 80 PLUS Gold efficiency certification and Cybenetics Platinum & Gold ratings, along with LAMBDA A acoustic certification, it guarantees superior energy efficiency and low noise operation.

CYBENETICS LAMBDA A
The Phantom Gaming series power earning the prestigious Cybenetics Lambda A certification. This recognition underscores the Phantom Gaming series' outstanding noise control performance, making it an exceptional choice for users seeking ultra-quiet operation.

Infineon CoolMOS
The industrial-leading components deliver high efficiency and reliability.

Japanese Capacitors
105 °C Japanese-made Capacitor and Solid Capacitor, makes prolonged life span possible.

Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 10 –Year warranty, guaranteeing long term reliable and peace of mind operation.

Specifications

Cooling
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	100000 h
Bearing technology	FDB
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
Fan diameter	13.5 cm
On/off switch	Yes
Number of fans	1 fan(s)
Cooling type	Active
On/off fan switch	Yes
Power
Total power	1000 W
Ports & interfaces
Motherboard power connector	24-pin ATX
Number of SATA power connectors	9
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	5
CPU power connector (4+4 pin)	Yes
ATX Power connector (24-pin)	Yes
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Packaging data
Package type	Box
Certificates
80 PLUS certification	80 PLUS Gold
