be quiet!

be quiet! Dark Power 14 1000 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black

SKU BP020EU
£221.05
£158.81
£221.05
£158.81
Excluding taxes
1000W, 80 PLUS Titanium, ATX 3.1, EPS 12V 2.92, 175 x 150 x 86 mm

Key Features

  • 80 PLUS® Titanium and Cybenetics Titanium efficiency (up to 95.5%)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2-pin connector

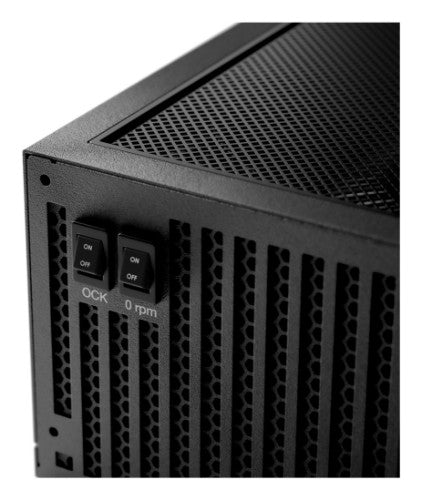

  • Active and semi-passive cooling can be selected with the push of a button

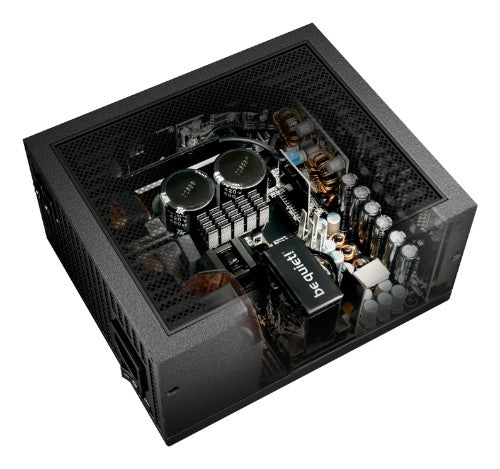

  • Aluminum heat sink to support the semi-passive cooling concept and improve the longevity of the components

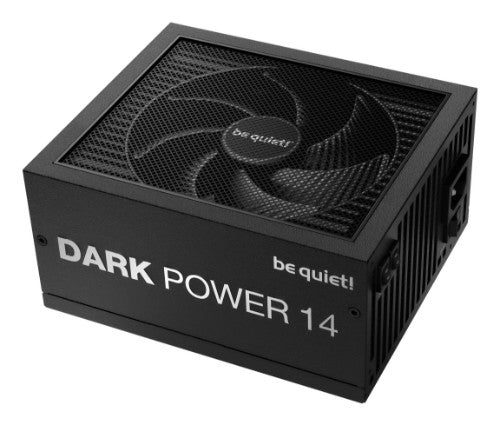

  • Silent Wings fan for virtually inaudible operation
  • Full bridge + Synchronous Rectifier + LLC technology provides unmatched signal stability and extremely high efficiency
  • Button to switch between single and multi-rail operation
  • Full-mesh front with funnel-shaped air inlet upholds the high air circulation abilities

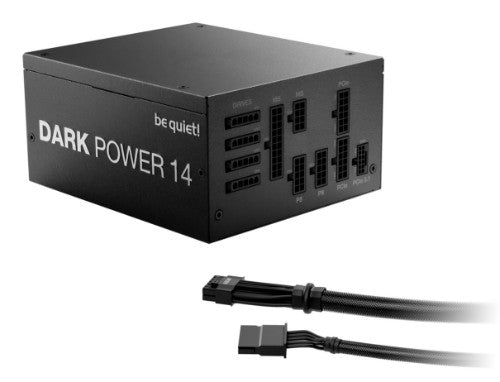

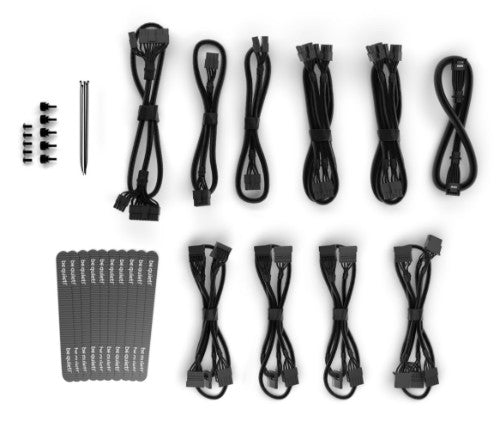

  • Modular cable management for maximum convenience
  • Product conception, design and quality control in Germany

Description

No compromise silence and performance
Dark Power 14 1000W claims nothing less than the top spot. This powerhouse features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive mode.

Specifications

Cooling
Fan diameter 13.5 cm
Number of fans 1 fan(s)
Fan speed 0 - 2100 RPM
Cooling type Active
Performance
On/off switch Yes
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Titanium
Purpose PC
ATX version 3.1
EPS version 2.92
Noise level 18.2 dB
Mean time between failures (MTBF) 100000 h
Bearing technology FDB
Design
80 PLUS certification 80 PLUS Titanium
Product colour Black
Fan diameter 13.5 cm
On/off switch Yes
Number of fans 1 fan(s)
Illumination No
Fan speed 0 - 2100 RPM
Cooling type Active
On/off fan switch Yes
Power
Total power 1000 W
Maximum input current (@220V) 5 A
Peak power 1100 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power factor 0.98
Maximum input current (@110V) 10 A
Combined power (+3.3V) 120 W
Combined power (+12V) 996 W
Combined power (+5V) 120 W
Max output current (+3.3V) 25 A
Max output current (+12V1) 33 A
Max output current (+12V2) 33 A
Max output current (+12V4) 40 A
Max output current (+12V3) 40 A
Max output current (+5V) 24 A
Max output current (-12V) 0.5 A
Max output current (+5Vsb) 3 A
Power protection features Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage
Hold time 20.1 ms
Efficiency 93.8%
Number of +12V rail(s) 4
Ports & interfaces
Motherboard power cable length 60 cm
SATA power cable length 600,750,900,1050 mm
Peripheral (Molex) power cable length 900,1050 mm
PCI Express power cable length 60 cm
CPU power cable length 70 cm
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 13
Peripheral (Molex) power connectors (4-pin) 2
EPS power connector (8-pin) Yes
PCI Express power connectors (6+2 pin) 4
CPU power connector (4+4 pin) Yes
PCI Express connector Yes
ATX power connector (20+4 pin) Yes
Cabling type Fully-Modular
EPS power connector (4+4 pin) Yes
PCI Express power connectors (12-pin) 1
Number of SATA power cables 4
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Technical details
Shipping (inner) case width 36.8 cm
Shipping (inner) case net weight 19.3 kg
Shipping (inner) case length 52.8 cm
Shipping (inner) case height 26 cm
Products per shipping (inner) case 4 pc(s)
Sustainability certificates ENERGY STAR, ErP, Triman
Compliance certificates CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
Certificates
Compliance certificates CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
80 PLUS certification 80 PLUS Titanium
Weight & dimensions
Width 150 mm
Depth 175 mm
Height 86 mm
Weight 2.2 kg
Packaging data
Screws included Yes
Cable ties included Yes
Package depth 126 mm
Package width 230 mm
Package height 355 mm
Package weight 3.5 kg
Manual Yes
Manual languages Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian
Packaging content
Screws included Yes
Cable ties included Yes
Manual Yes
Logistics data
Shipping (inner) case width 36.8 cm
Shipping (inner) case net weight 19.3 kg
Shipping (inner) case length 52.8 cm
Shipping (inner) case height 26 cm
Products per shipping (inner) case 4 pc(s)
Other features
Screws included Yes
Cable ties included Yes
Manual Yes
