be quiet!

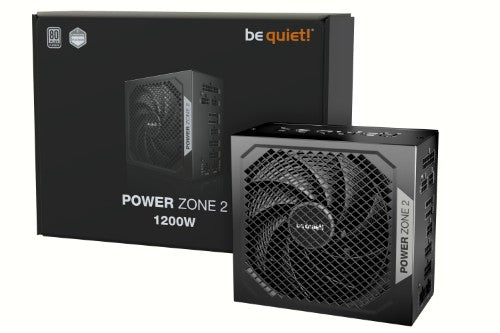

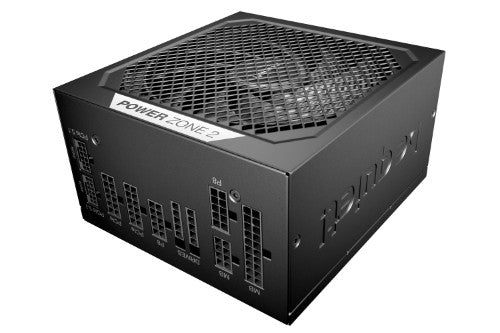

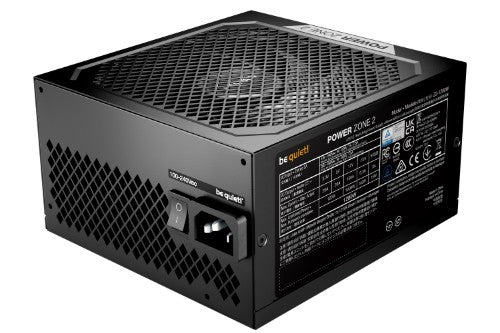

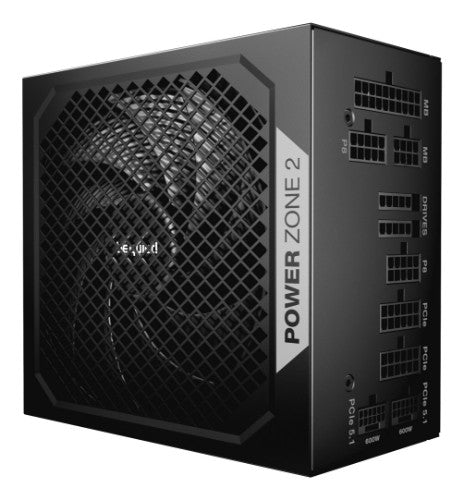

be quiet! POWER ZONE 2 | 1200 W power supply unit 20+4 pin ATX ATX Black

SKU BP030EU
£188.66
£154.55
£188.66
£154.55
Excluding taxes
80 PLUS Platinum, 1200W, PCIe 5.1/ATX 3.1, 160 x 150 x 86mm

Key Features

  • 80 PLUS® Platinum and Cybenetics Platinum efficiency rating (up to 94.3%)
  • Semi-passive zero-RPM cooling
  • Fan runs on for 2-5 minutes to avoid frequent starting noise
  • Pure Wings 3 140mm fan for quiet and efficient cooling

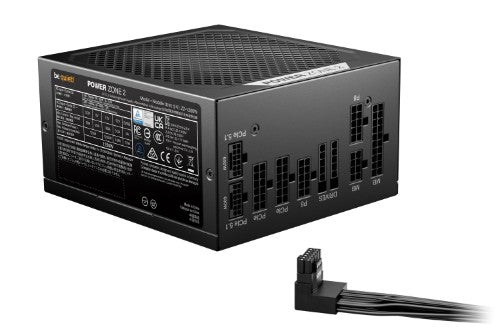

  • 2 x 90° angled 12V-2x6 connectors and PCIe 5.1/ATX 3.1 compatibility
  • Advanced voltage regulation and stability thanks to LLC technology
  • One massive high-performance 12V-rail
  • Unique look with an unmistakable mesh design
  • Product conception, design and quality control in Germany

Description

Exceptional efficiency for Gamers
Power Zone 2 1200W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions. With 90° angled 12V-2x6 connectors in the scope of delivery and PCIe 5.1/ATX 3.1 compatibility, Power Zone 2 supports the latest graphics cards and constitutes a reliable investment for the future.

Specifications

Cooling
Fan diameter 14 cm
Number of fans 1 fan(s)
Fan speed 0 - 2100 RPM
Cooling type Active
Performance
On/off switch Yes
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Platinum
Purpose PC
ATX version 3.1
EPS version 2.92

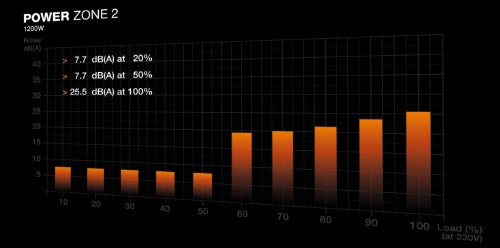

Noise level 25.5 dB
Mean time between failures (MTBF) 100000 h
Bearing technology Rifle
Design
80 PLUS certification 80 PLUS Platinum
Product colour Black
Fan diameter 14 cm
On/off switch Yes
Number of fans 1 fan(s)
Illumination No
Fan speed 0 - 2100 RPM
Cooling type Active
Power
Total power 1200 W
Maximum input current (@220V) 7.5 A
Peak power 1270 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power factor 0.97
Maximum input current (@110V) 15 A
Combined power (+3.3V) 120 W
Combined power (+12V) 1200 W
Combined power (+5V) 120 W
Combined power (-12V) 6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 100 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Hold time 20.42 ms
Efficiency 92.7%
Number of +12V rail(s) 1
Ports & interfaces

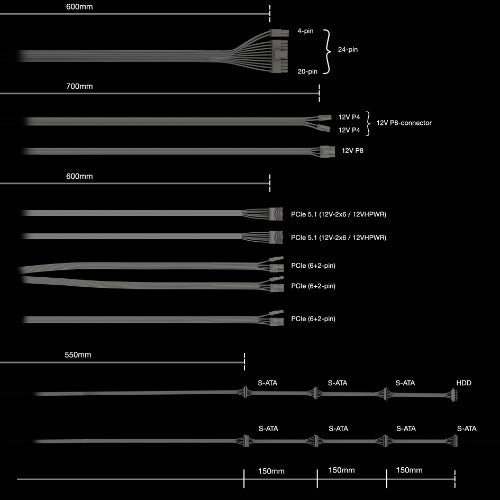

Motherboard power cable length 60 cm
SATA power cable length 550,700,850,1000 mm
Peripheral (Molex) power cable length 1000 mm
PCI Express power cable length 60 cm
CPU power cable length 70 cm
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 7
Peripheral (Molex) power connectors (4-pin) 1
EPS power connector (8-pin) Yes
PCI Express power connectors (6+2 pin) 3
CPU P4 connector (4-pin) 1
CPU power connector (4+4 pin) Yes
PCI Express connector Yes

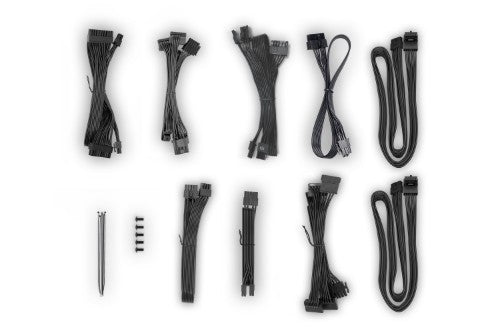

Cabling type Fully-Modular
PCI Express power connectors (12-pin) 2
Number of SATA power cables 2
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 0 - 85%
Storage relative humidity (H-H) 0 - 95%
Technical details
Shipping (inner) case width 26.5 cm
Shipping (inner) case length 43 cm
Shipping (inner) case height 34 cm
Products per shipping (inner) case 4 pc(s)
Sustainability certificates ENERGY STAR, ErP, Triman
Compliance certificates BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Compliance certificates BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
80 PLUS certification 80 PLUS Platinum
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Weight & dimensions
Width 150 mm
Depth 160 mm
Height 86 mm
Weight 1.88 kg
Packaging data
Screws included Yes
Cable ties included Yes
Package depth 328 mm
Package width 248 mm
Package height 102 mm
Package type Box
Package weight 3.5 kg
Manual Yes
Manual languages German, English, Spanish, French, Polish, Russian, Ukrainian
Packaging content
Screws included Yes
Cable ties included Yes
Manual Yes
Logistics data
Shipping (inner) case width 26.5 cm
Shipping (inner) case length 43 cm
Shipping (inner) case height 34 cm
Products per shipping (inner) case 4 pc(s)
Shipping (inner) case gross weight 14.9 kg
Other features
Screws included Yes
Cable ties included Yes
Manual Yes
