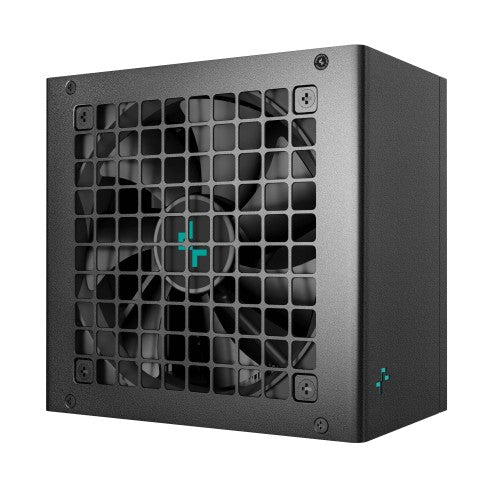

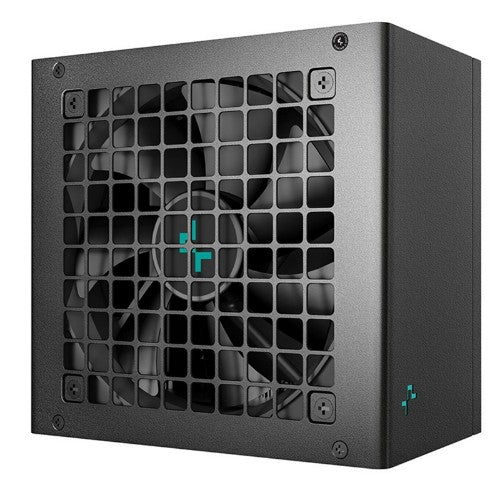

DeepCool PN750D power supply unit 750 W 20+4 pin ATX ATX Black

750 W, 80 Plus Gold, 150 x 140 x 86 mm

Description

The DeepCool PN750D is a new non-modular power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standards. With a dedicated 12V-2x6, 2 EPS, and 3 PCIe connectors, the PN750D provides stable power for a wide range of modern high-power components.

GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

POWER YOU CAN TRUST

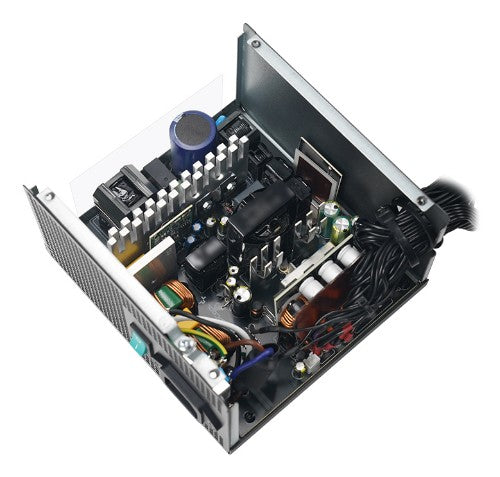

Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN750D can keep the hold-up time to ≥ 16 ms under a high load of 80%.

PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core sleeved 12V-2x6 cable, the PN750D provides up to 450W for modern GPUs.

DYNAMIC HYDRO BEARING FAN

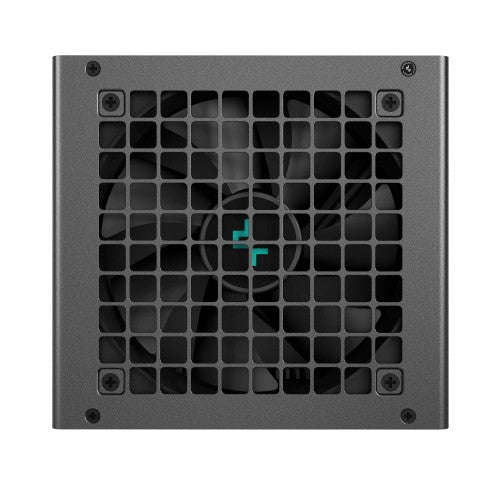

The PN750D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.

HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN750D will operate at altitudes up to 5000 meters above sea level.

PEACE OF MIND
The PN750D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

EXCELLENT COVERAGE
The PN750D is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Performance

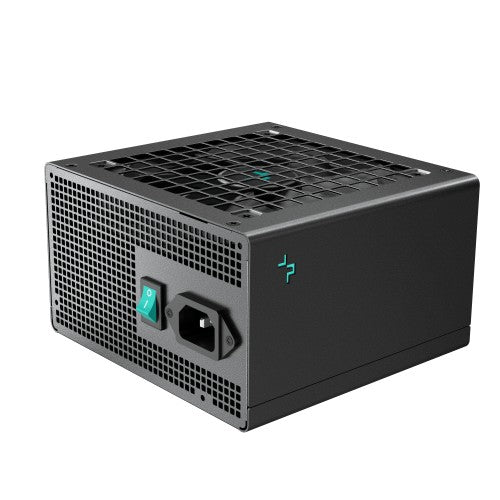

On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	100000 h
Bearing technology	FDB
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Power
Total power	750 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	10 - 5 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Combined power (+12V)	750 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	No load operation, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Surge protection, Under voltage
Efficiency	90%
Ports & interfaces
Motherboard power cable length	55 cm
SATA power cable length	550,750,450,650 mm
Peripheral (Molex) power cable length	450 mm
CPU power cable length	70 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	3
CPU power connector (4+4 pin)	Yes
ATX power connector (20+4 pin)	Yes

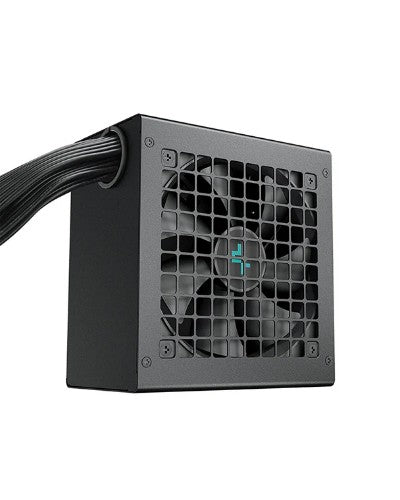

Cabling type	Non-Modular
PCI Express power connectors (16-pin)	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C

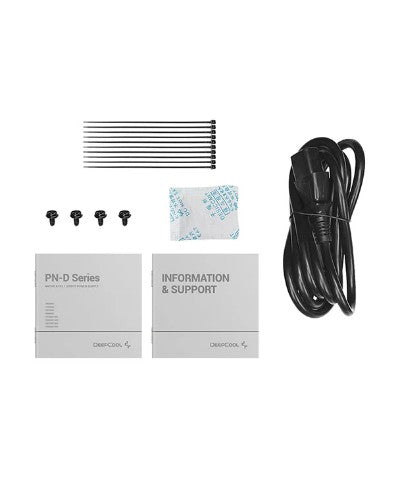

Packaging content
Cables included	AC
Cable tie(s) included	Yes
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Packaging data
Cables included	AC
Package type	Box
Technical details
Sustainability certificates	ErP, Triman
Warranty period	10 year(s)
Compliance certificates	CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE
Certificates
80 PLUS certification	80 PLUS Gold
