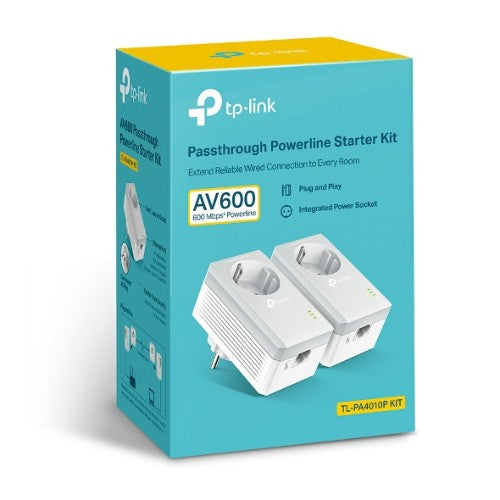

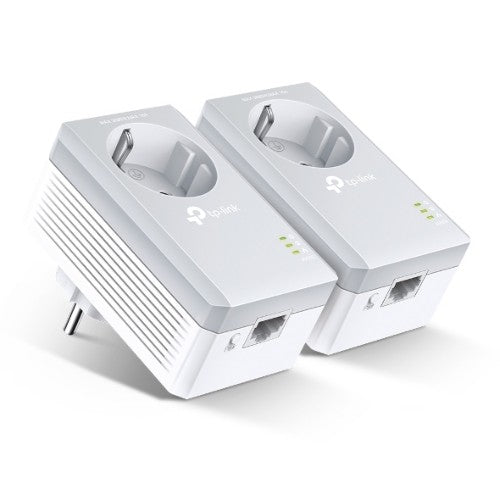

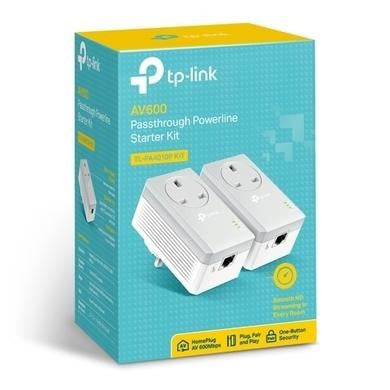

TP-Link Passthrough Powerline 600 Starter Kit, 1 Port

HomePlug AV, IEEE802.3, IEEE802.3u, 1x 10/100Mbps Ethernet, 300 m max, 128-bit AES Encryption

Key Features

• 1 Port per unit, 100Mbps
• HomePlug AV standard compliant, providing data transmission over electrical wires for HD video streaming
• Integrated power socket making sure that no power outlet is going to waste
• Plug and play design and easy encryption on a push of pair button
• Power-Saving Mode automatically reduces power consumption by up to 85%

Description

What This Product Does
The TL-PA4010P KIT turns your existing powerline into a high speed network with no need for new wires or drilling. No configuration is required, simply plug your adapter into your power socket and you can establish networking infrastructure in a flash. In additon, its integrated power socket makes sure that no power outlet is going to waste.

Easy Ethernet Connections
With advanced HomePlug AV technology, the TL-PA4010P KIT can provide users with a stable high-speed data transmission over a household electric circuit for up to 300 meters. the TL-PA4010P KIT is a great choice for a whole home solution to connect all network compatible devices--from computers and game consoles to set-top boxes for IPTV to printers and NAS hard drives.

Mains Filter for Better Performance
With its Integrated Mains Filter, the TL-PA4010P KIT can optimize powerline communication performance by suppressing noise interference generated by surrounding electronic equipment that can affect network performance. That means that users won't experience a sudden speed drop when a larger power consuming device is plugged into the power socket.

Pair Button for Easy Network Security
You can set up a hassle-free Powerline network within minutes with TP-Link’s powerline adapters, just plug in and play. Also, the adapters’ “Pair” buttons can be utilized for securing or managing multiple powerline adapters in your home powerline network.

1. Plug one Internet connected adapter into a nearby power outlet.

2. Connect additional adapters to PCs/laptops/Internet TVs or other networked devices via an Ethernet cable - and you're done!

Extra Power Socket for Additional Devices

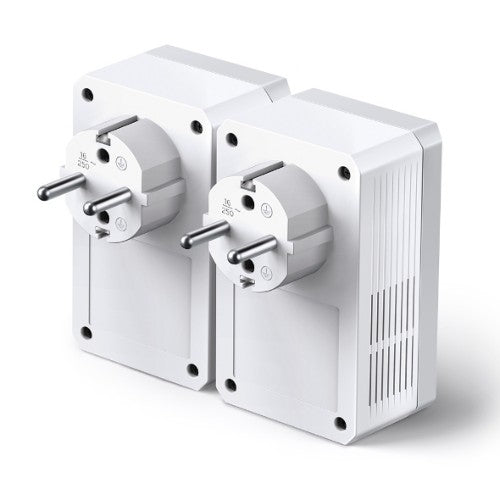

With its integrated power socket, the new TL-PA4010P KIT provides real convenience for your home network. The integrated power socket allows an additional device or power bar to be connected to the adapter as though it were a normal wall socket. This ensures that even with the TL-PA4010P KIT plugged in, no power outlet is going to waste.

Reduce Power Consumption by Up to 85%
The TL-PA4010P KIT, a new-generation of Powerline Adapter, with its practical product design and environment-conscious Power-Saving Mode, will automatically switch from its regular "Working Mode" to "Power-Saving Mode" that will reduce energy consumption by up to 85%.

Specifications

Performance
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Wi-Fi	No
Maximum data transfer rate	600 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3u
Built-in power socket	Yes
PowerLine standard	HomePlug AV
Modulation	OFDM
Security algorithms	128-bit AES
Maximum operating distance	300 m
Encryption button	Yes
Plug and Play	Yes
Technical details
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Wi-Fi	No
Maximum data transfer rate	600 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3u
Built-in power socket	Yes
PowerLine standard	HomePlug AV
Modulation	OFDM
Security algorithms	128-bit AES
Maximum operating distance	300 m
LED indicators	Yes
Encryption button	Yes
Product colour	White
Plug and Play	Yes
Certification	FCC, CE
Harmonized System (HS) code	85171800
Compliance certificates	RoHS
Power
Power consumption (typical)	4.6 W
Power consumption (standby)	0.72 W
Design
LED indicators	Yes
Product colour	White
Certification	FCC, CE
System requirements
Mac compatibility	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	95 mm
Depth	58 mm
Height	42 mm
Package width	190 mm
Package depth	136 mm
Package height	100 mm
Package weight	540 g
Packaging data
Package width	190 mm
Package depth	136 mm
Package height	100 mm
Package weight	540 g
Certificates
Compliance certificates	RoHS
Packaging content
Quantity per pack	2 pc(s)
Quick installation guide	Yes
Cables included	LAN (RJ-45)
Logistics data
Harmonized System (HS) code	85171800
