StarTech.com 3U Fixed 19" Adjustable Depth Universal Server Rack Rails

StarTech.com 3U Universal Server Rack Rails - TAA Compliant Fixed Mounting Rails - 19" Adjustable Depth Rack Mount Rails (UNIRAILS3U)

Key Features

• REPLACEMENT MOUNTING SOLUTION: The 3U adjustable rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment that no longer have rack rails available
• UNIVERSAL DESIGN: Adhering to the EIA-310 standard for 19"" rackmount equipment, these universal server rack rails are universally compatible with 19"" server racks
• STURDY CONSTRUCTION: To ensure your equipment is secure, these computer equipment rack rails feature cold-rolled steel construction; The durable design can support up to 215lb (97kg)
• TAA COMPLIANT: This TAA compliant 19in rack mount rails adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, these server-rack rails are backed for life, including free lifetime 24/5 multi-lingual technical assistance

Description

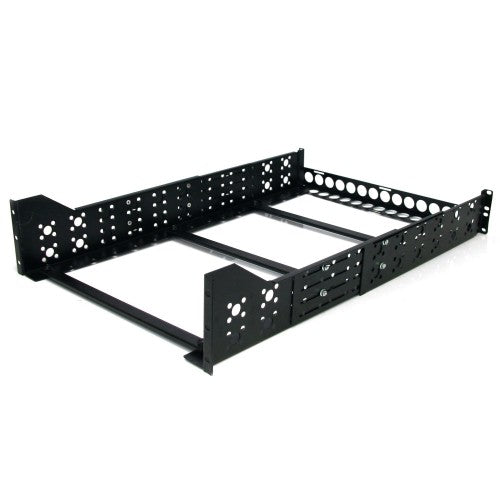

Mount 19" servers or networking hardware in any standard rack with these universal, adjustable depth 3U rack rails

These 3U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19” server rack without sacrificing an additional 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell™, IBM®, HP® or Apple servers that no longer have rack rails available.

This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Turn non-rackmount equipment into 3U rackmount hardware

These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security.

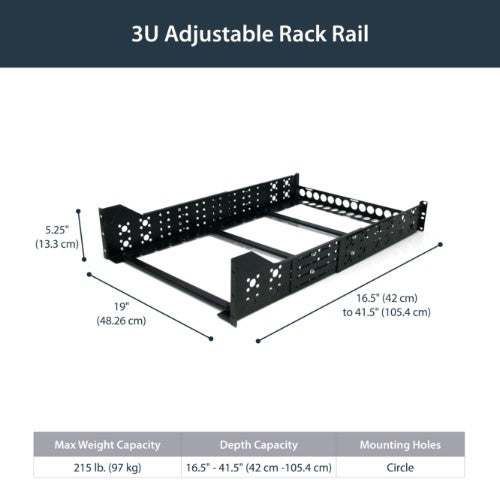

Universal design mounts to almost any 19" server rack

Adhering to the EIA-310 standard for 19” rackmount equipment, these mounting rails are universally compatible with 19” server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that’s removable for additional customization.

Maximum durability

To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 100 lb (45 kg).

The UNIRAILS3U is backed by a lifetime StarTech.com warranty with free technical support.

The StarTech.com Advantage

Specifications

Features
Certification	CE, UL
Type	Rack rail
Size (imperial)	48.3 cm (19")
Rack capacity	3U
Maximum weight capacity	97.3 kg
Product colour	Black
Harmonized System (HS) code	85389099
Housing material	Steel
Weight & dimensions
Package width	105 mm
Package height	150 mm
Package depth	487 mm
Package weight	4.12 kg
Mounting depth (min)	42 cm
Mounting depth (max)	105.4 cm
Width	465 mm
Weight	3.9 kg
Size (imperial)	48.3 cm (19")
Height	130 mm
Depth	481 mm
Maximum weight capacity	97.3 kg
Packaging data
Package width	105 mm
Package height	150 mm
Package depth	487 mm
Package weight	4.12 kg
Packaging content
Screws included	Yes
Mounting kit	Yes
Technical details
Type	Rack rail
Size (imperial)	48.3 cm (19")
Rack capacity	3U
Form factor	3U
Compliance certificates	RoHS
Colour
Product colour	Black
Logistics data
Master (outer) case width	105 mm
Master (outer) case length	487 mm
Master (outer) case height	150 mm
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85389099
Other features
Form factor	3U
