StarTech.com Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet

StarTech.com 4U Universal VESA LCD Monitor Mounting Bracket for 19-inch Rack or Cabinet - TAA Compliant - Cold-Pressed Steel Bracket (RKLCDBK)

Key Features

• STURDY DESIGN: The LCD mounting bracket made of solid cold pressed steel (SPCC), is designed to support 100mm & 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting
• ADJUSTABLE DEPTH: A unique adjustable design enables an LCD panel to be mounted into the AV rack cabinet at various depths, allowing the rack/cabinet door to be closed
• ADDED FUNCTIONALITY: The rackmount monitor bracket supports wall-mounted LCD installations by inverting or adding this bracket to a wall mount bracket or rack, such as the 6U Wall mount Bracket
• TAA COMPLIANT: This TAA compliant Universal VESA LCD Monitor Mounting Bracket adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, this LCD mounting bracket is backed for life, including free lifetime 24/5 multi-lingual technical assistance

Description

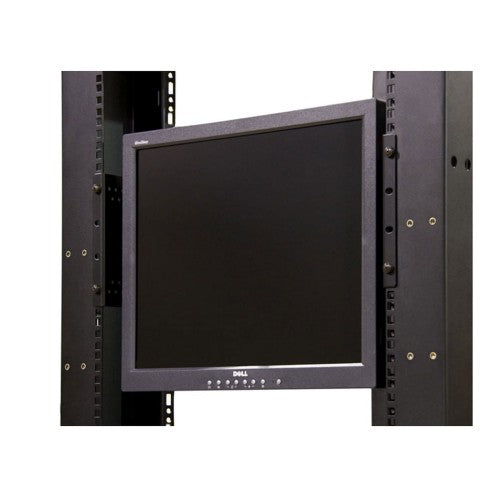

Mount a 17-19 inch LCD panel into a standard 19 inch rack/cabinet

The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

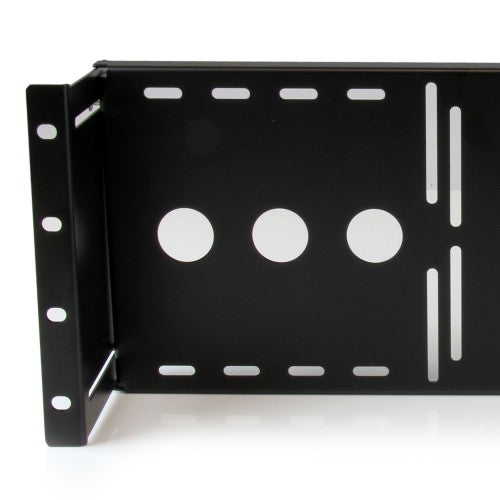

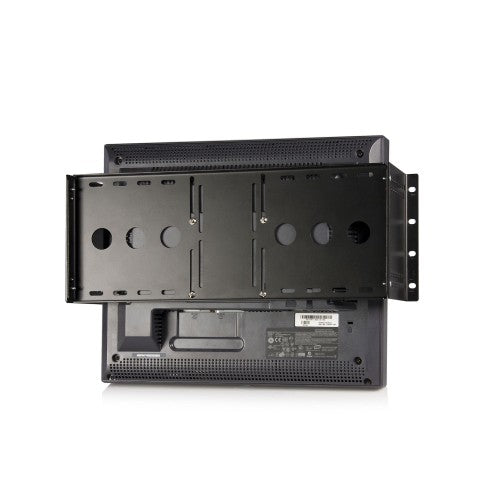

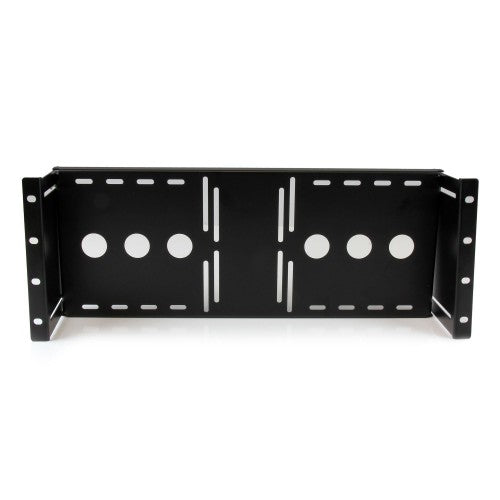

The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.

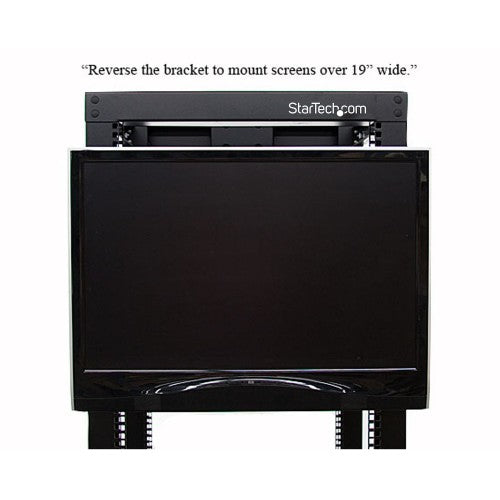

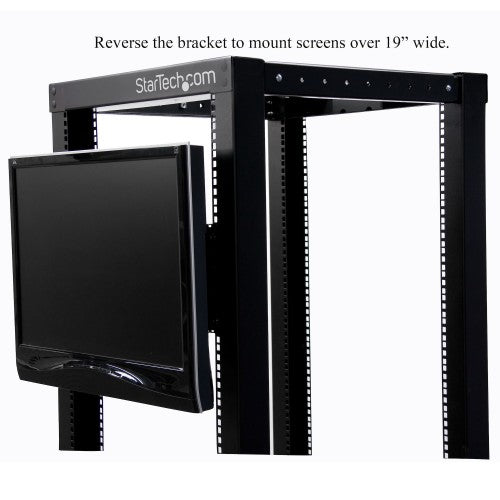

The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).

Backed by a StarTech.com Lifetime warranty.

The StarTech.com Advantage

Specifications

Features
Certification	CE, REACH, TAA
Type	Mounting bracket
Rack capacity	4U
Product colour	Black
Compliance industry standards	EIA RS310-D
Harmonized System (HS) code	85389099
Housing material	Steel
Weight & dimensions
Package width	54 mm
Package height	220 mm
Package depth	472 mm
Package weight	2 kg
Mounting depth (max)	8.89 cm
Width	842 mm
Weight	1.7 kg
Height	177 mm
Depth	107.5 mm
Packaging data
Package width	54 mm
Package height	220 mm
Package depth	472 mm
Package weight	2 kg

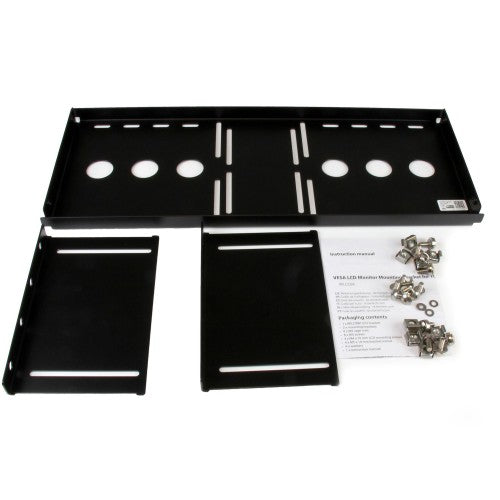

Packaging content
Screws included	Yes
Mounting kit	Yes
Nuts included	Yes
Number of screws	16
Number of nuts	8
Quick installation guide	Yes
Screw type	M5, M4
Washers included	Yes
Number of washers included	4
Technical details
Type	Mounting bracket
Rack capacity	4U
Compliance certificates	RoHS
Colour
Product colour	Black
Logistics data
Master (outer) case width	524 mm
Master (outer) case length	187 mm
Master (outer) case height	590 mm
Products per master (outer) case	156 pc(s)
Harmonized System (HS) code	85389099
