Tripp Lite

Tripp Lite SRBOLTDOWN SmartRack Bolt-Down Kit - Secures stabilizing brackets or plates to facility floor

SKU SRBOLTDOWN
£37.77
£37.77
Excluding taxes
SmartRack Bolt-Down Kit - Secures stabilizing brackets or plates to facility floor

Key Features

  • Bolt-down Kit for cabinets and racks
  • Enables SmartRack to be secured to concrete floor
  • Provides extreme stabilization and security
  • Includes required nuts and bolts

Description

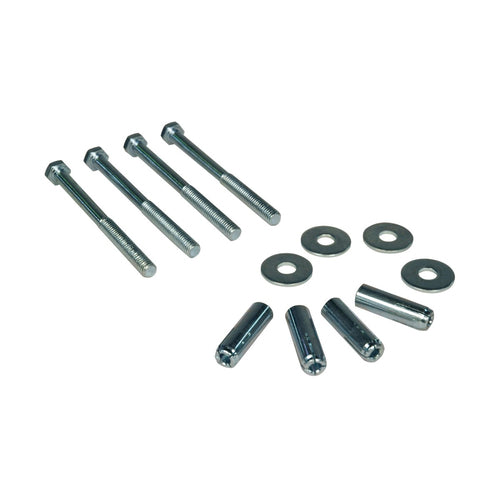

SmartRack® SRBOLTDOWN provides extreme stabilization and security for cabinets and racks. The bolt-down kit enables SmartRack to be secured to a concrete floor. SRBOLTDOWN includes four concrete inserts, four bolts and four fender washers.

Technical Notes: We recommend using a 1/2-inch concrete drill. Hole must be 4.5 inches to 4.75 inches deep. Mark the hole, drill the hole, then tap the anchor into the hole. Thread the bolt into the anchor a few threads only. Tap the bolt with a hammer (with anchor attached) until it bottoms out in the hole, then tighten the bolt.

Specifications

Features
Product colour Aluminium
Harmonized System (HS) code 8302.50.0000
Country of origin China
Weight & dimensions
Package width 104.9 mm
Package height 26.9 mm
Package depth 152.9 mm
Package weight 450 g
Packaging data
Package width 104.9 mm
Package height 26.9 mm
Package depth 152.9 mm
Package weight 450 g
Colour
Product colour Aluminium
Technical details
Master (outer) case GTIN (EAN/UPC) 10037332144604
Compliance certificates RoHS
Logistics data
Master (outer) case width 224.8 mm
Master (outer) case length 329.9 mm
Master (outer) case height 194.8 mm
Master (outer) case gross weight 14 kg
Products per master (outer) case 24 pc(s)
Harmonized System (HS) code 8302.50.0000
