StarTech.com 12U Hinged Open Frame Wall-Mount Server Rack - 22 in. Deep

StarTech.com 12U Hinged Open Frame Wall Mount Server Rack - 4 Post 22 in. Depth Network Equipment Rack Cabinet - 140 lbs capacity (RK1219WALLOH)

Key Features

• 12U Hinged Wall Mount Rack

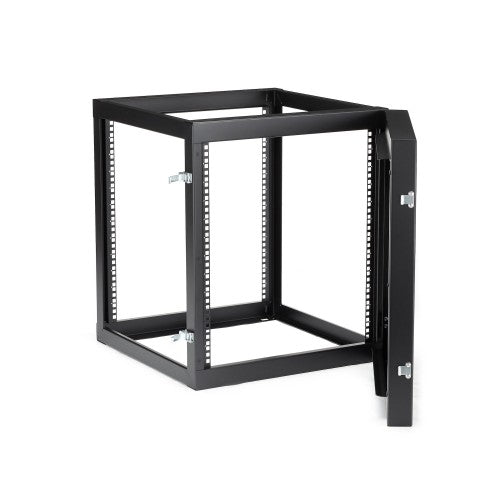

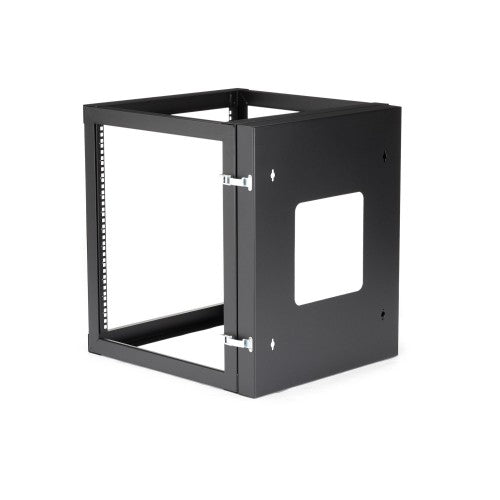

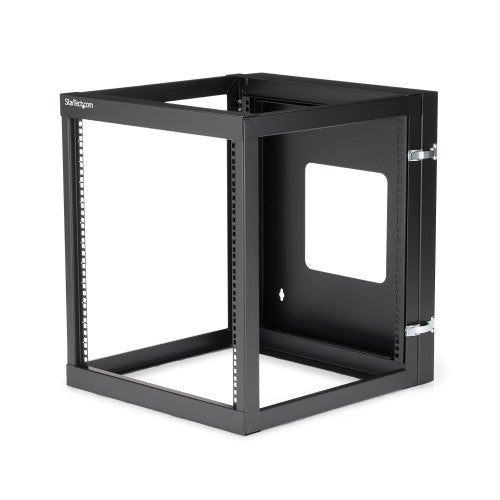

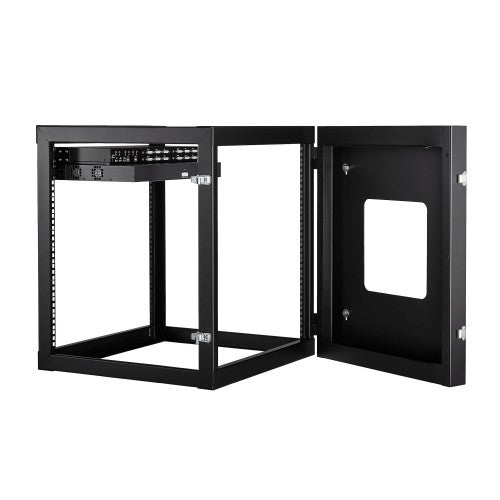

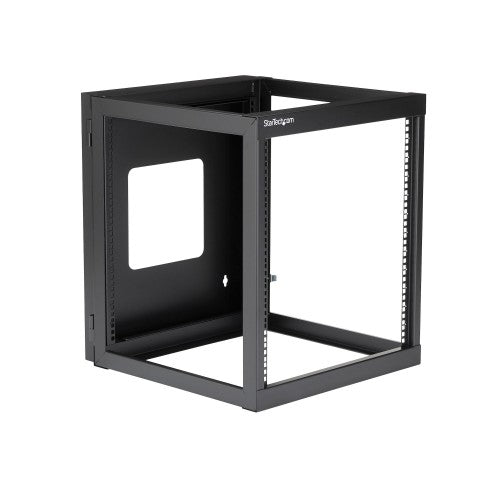

• Hinged design for easy access to rear panels
• TAA compliant for GSA Schedule purchases

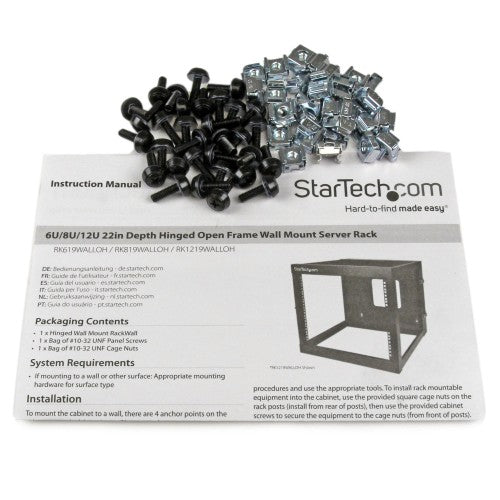

• Package includes all necessary screws/nuts for mounting rack equipment
• Open frame design provides additional airflow
• 4 Post design for added stability
• Sturdy SPCC cold-rolled steel construction

Description

Wall-mount your server or networking equipment with a hinged rack design for easy access and maintenance

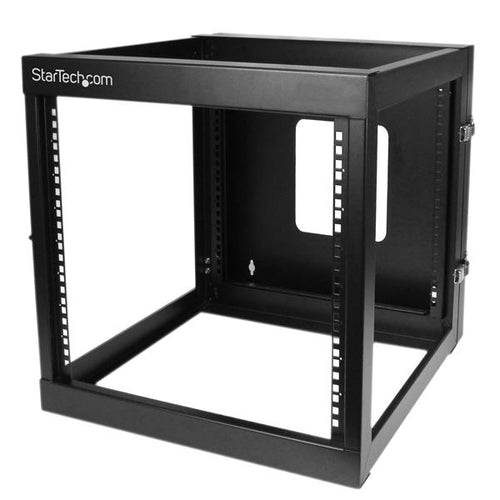

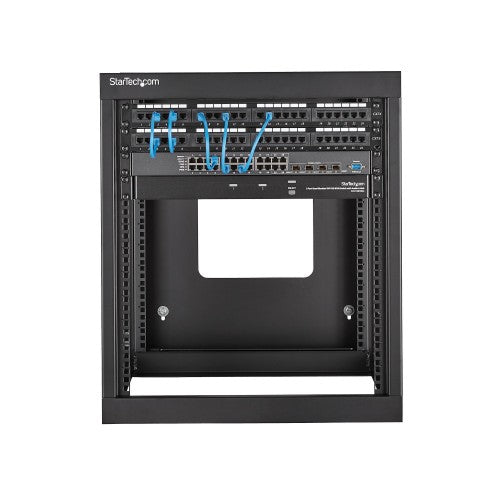

The RK1219WALLOH 12U Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment.

The 12U wallmount rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 63 kg (139 lbs) with a maximum mounting depth of 19.8inch (50.2cm) . Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.

The StarTech.com Advantage

Specifications

Weight & dimensions
Package depth	660 mm
Package width	635 mm
Package height	718 mm
Package weight	20.7 kg
Inner depth	50.5 cm
Mounting depth (max)	50.7 cm
Width	556 mm
Depth	600 mm
Height	647 mm
Weight	18 kg
Maximum weight capacity	63.4 kg
Packaging content
Manual	Yes
Nuts included	Yes
Number of nuts	48
Screws included	Yes
Number of screws	48
Features
Number of fans	0 fan(s)
Key lock	No
Frame type	Open
Product design	4-post
Rack capacity	12U
Castor wheels	No
Adjustable mounting rails	No
Cable management	No
Mounting hole shape	Square
Front door key lock	No
Type	Wall mounted rack
Maximum weight capacity	63.4 kg
Material	Steel
Product colour	Black
Certification	RoHS, CE, UL, TAA
Packaging data
Manual	Yes
Nuts included	Yes
Number of nuts	48
Package depth	660 mm
Package width	635 mm
Package height	718 mm
Package weight	20.7 kg
Screws included	Yes
Number of screws	48
Technical details
Package width	635 mm
Package height	718 mm
Type	Wall mounted rack
Compliance industry standards	EIA-310-D, EIA RS310-D
Harmonized System (HS) code	85381000
Rack capacity	12U
Colour
Product colour	Black
Certificates
Certification	RoHS, CE, UL, TAA
Material
Material	Steel
Logistics data
Master (outer) case width	635 mm
Master (outer) case length	660 mm
Master (outer) case height	718 mm
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85381000
Other features
Compliance industry standards	EIA-310-D, EIA RS310-D
