StarTech.com 4U 19in Steel Vertical Wall Mount Equipment Rack Bracket

StarTech.com 4U Wall Mount Patch Panel Bracket - 19 inch Steel Vertical Mounting Bracket for Network and Data Equipment (RK419WALLV)

Description

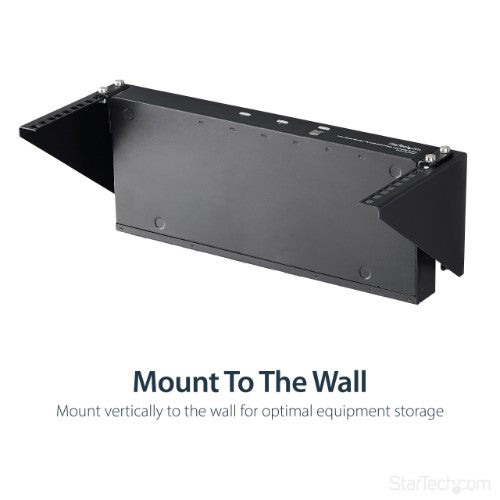

Mount server, network or telecommunications devices vertically with this 4U wall-mountable rack

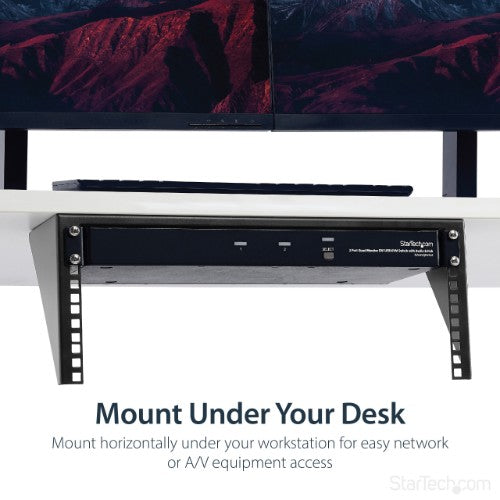

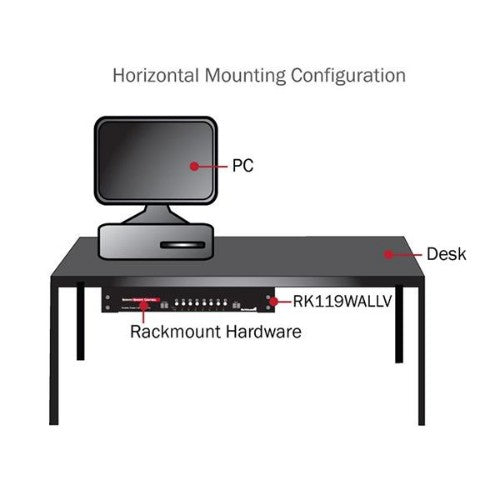

The RK419WALLV 4U Wallmount Rack Bracket offers a versatile storage solution, allowing equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with the wall) to save space. Alternatively, the 4U bracket can be installed under a desk for horizontal installation, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Perfect for SoHo (small office, home office) environments, the wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack.

Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework.

Constructed to EIA-310 19in rack standards, the wallmount bracket features a sturdy steel design and is backed by StarTech.com's Lifetime Warranty.

Need more storage space? StarTech.com also offers a 1U 19in Wallmount Bracket, a 2U 19in Wallmount Bracket and a 3U 19in Wallmount Bracket.

The StarTech.com Advantage

Specifications

Features
Size (imperial)	48.3 cm (19")
Number of fans	0 fan(s)
Frame type	Open
Product design	2-post
Rack capacity	4U
Castor wheels	No
Adjustable mounting rails	No
Cable management	No
Mounting hole shape	Square
Back door key lock	No
Front door key lock	No
Side panel key lock	No
Type	Wall mounted rack
Maximum weight capacity	56.7 kg
Material	Steel
Product colour	Black
Certification	TAA, CE, UL, REACH
Weight & dimensions
Package depth	519 mm
Package width	211 mm
Package height	162 mm
Package weight	1.69 kg
Inner width	45 cm
Width	504 mm
Depth	193 mm
Height	151 mm
Weight	1.1 kg
Size (imperial)	48.3 cm (19")
Maximum weight capacity	56.7 kg

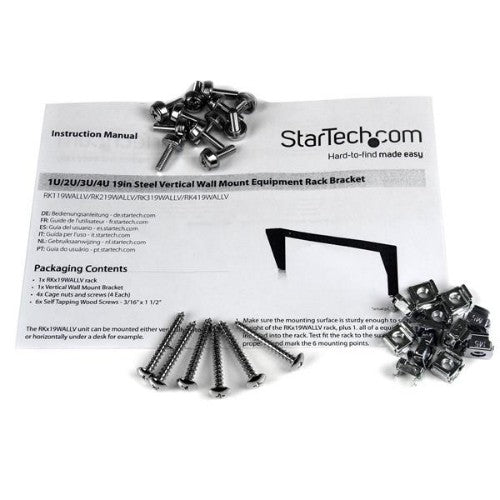

Packaging content
Wall mounting kit	Yes
Mounting kit	Yes
Nuts included	Yes
Number of nuts	16
Screws included	Yes
Number of screws	22
Packaging data
Wall mounting kit	Yes
Mounting kit	Yes
Nuts included	Yes
Number of nuts	16
Package depth	519 mm
Package width	211 mm
Package height	162 mm
Package weight	1.69 kg
Screws included	Yes
Number of screws	22
Technical details
Package width	211 mm
Package height	162 mm
Type	Wall mounted rack
Size (imperial)	48.3 cm (19")
Compliance industry standards	EIA/ECA-310-E
Harmonized System (HS) code	85381000
Compliance certificates	RoHS
Rack capacity	4U
Colour
Product colour	Black
Certificates
Certification	TAA, CE, UL, REACH
Material
Material	Steel
Logistics data
Harmonized System (HS) code	85381000
Other features
Compliance industry standards	EIA/ECA-310-E
