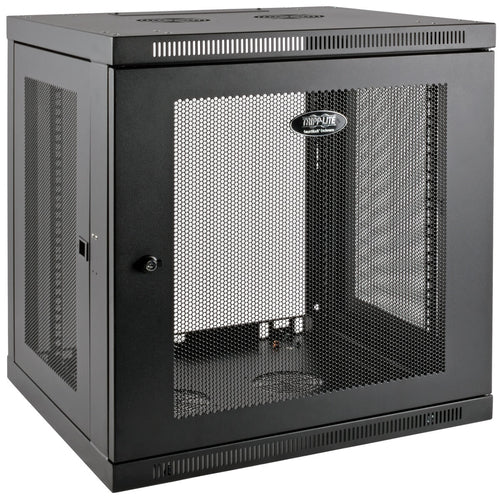

Tripp Lite SRW12UDP SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Small Rack Enclosure

SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Small Rack Enclosure

Key Features

• Maximum load capacity of 200 lbs (90.7 kgs)
• Locking steel cabinet vented at sides, front, top and bottom
• Flow-through ventilation keeps equipment cool
• Secures 12U of 19 in. rack equipment up to 20.5 in. deep
• Mounts to wall or rolls on floor (with optional SRCASTER)

Description

The SRW12UDP SmartRack® 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

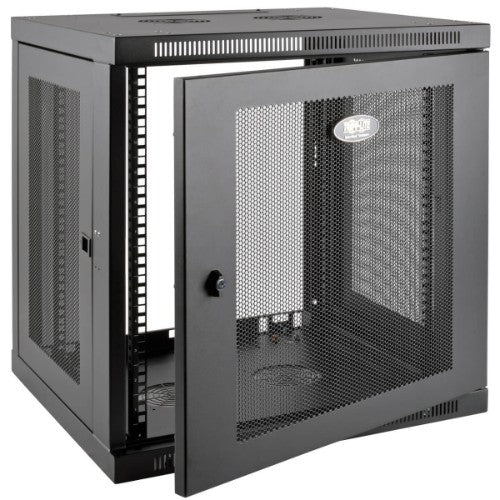

To ensure your valuable equipment stays secure, the side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet toand keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

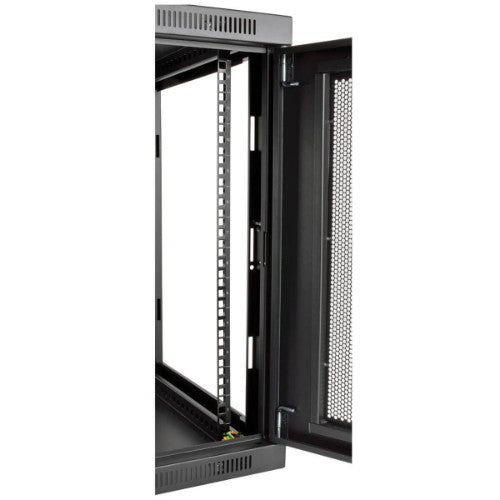

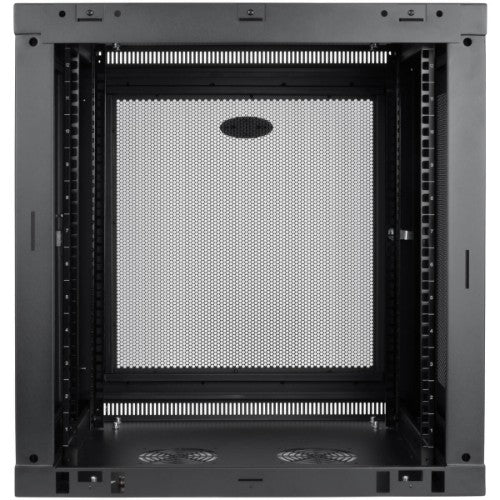

The SRW12UDP comes fully assembled and ready to mount to the wall, or use an optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as such as network switches and patch panels.

Specifications

Features
Size (imperial)	48.3 cm (19")
Key lock	Yes
Frame type	Closed
Rack capacity	12U
Type	Wall mounted rack
Maximum weight capacity	90.7 kg
Material	Steel
Product colour	Black
Certification	EIA-310-E RoHS
Weight & dimensions
Package depth	674.9 mm
Package width	730.2 mm
Package height	754.9 mm
Package weight	25.9 kg
Width	599.9 mm
Depth	552.4 mm
Height	637 mm
Weight	25.9 kg
Size (imperial)	48.3 cm (19")
Maximum weight capacity	90.7 kg
Packaging content
Wall mounting kit	Yes
Manual	Yes

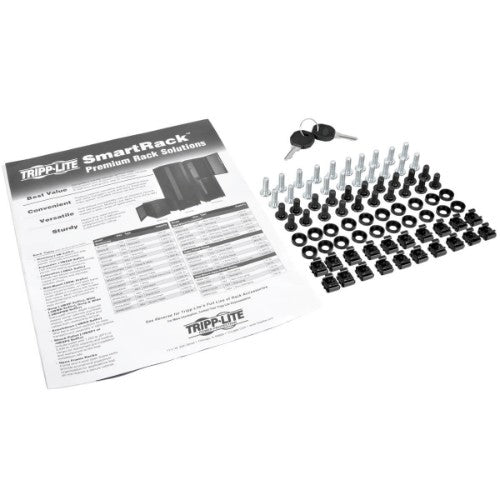

Mounting kit	Yes
Packaging data
Wall mounting kit	Yes
Manual	Yes
Mounting kit	Yes
Package depth	674.9 mm
Package width	730.2 mm
Package height	754.9 mm
Package weight	25.9 kg
Technical details
Package width	730.2 mm
Package height	754.9 mm
Type	Wall mounted rack
Size (imperial)	48.3 cm (19")
Harmonized System (HS) code	8517.79.0000
Rack capacity	12U
Colour
Product colour	Black
Certificates
Certification	EIA-310-E RoHS
Material
Material	Steel
Logistics data
Master (outer) case width	730.2 mm
Master (outer) case length	674.9 mm
Master (outer) case height	754.9 mm
Master (outer) case gross weight	25.9 kg
Products per master (outer) case	1 pc(s)
Country of origin	China
Harmonized System (HS) code	8517.79.0000
