Tripp Lite SRW12UHD SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Small Rack Enclosure

SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Small Rack Enclosure

Key Features

• Maximum load capacity of 500 lbs (226.8 kgs)
• Locking steel cabinet vented at sides, top and bottom
• Flow-through ventilation keeps equipment cool
• Secures 12U of 19 in. rack equipment up to 32.5 in. deep

Description

The SRW12UHD SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 500 lbs (226.8 kgs).

Because the low-profile cabinet mounts sideways, it extends less than 25 inches from the wall while housing equipment up to 32.5 inches deep, including 1U servers, UPS systems, battery packs, network switches and patch panels.

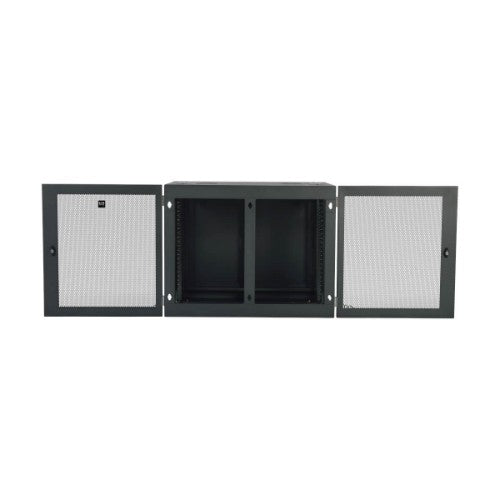

The removable front panel and side doors lock securely to help prevent damage, tampering or theft. The top, bottom and sides are vented, which allows air to flow freely and keep equipment cool. Convenient top and bottom ports allow easy cable routing.

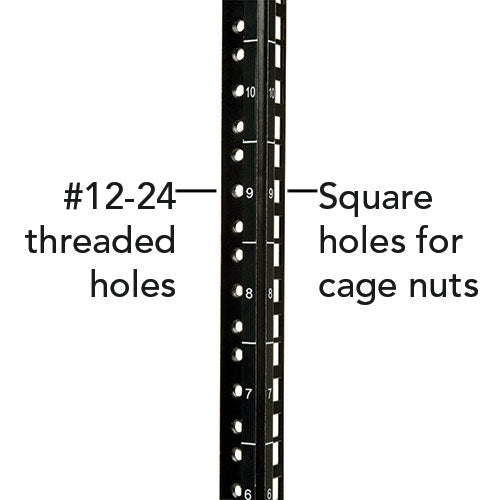

The SRW12UHD comes fully assembled and ready to mount to the wall. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments.

Specifications

Weight & dimensions
Package depth	965.2 mm
Package width	660.4 mm
Package height	711.2 mm
Package weight	59 kg
Width	920 mm
Depth	629.2 mm
Height	672.1 mm
Weight	46 kg
Width (imperial)	92 cm (36.2")
Depth (imperial)	62.9 cm (24.8")
Height (imperial)	67.2 cm (26.5")
Maximum weight capacity	225 kg
Features
Rack capacity	12U
Type	Wall mounted rack
Maximum weight capacity	225 kg
Product colour	Black
Certification	EIA-310-E, NOM
Packaging data
Package depth	965.2 mm
Package width	660.4 mm
Package height	711.2 mm
Package weight	59 kg
Technical details
Package width	660.4 mm
Package height	711.2 mm
Type	Wall mounted rack
Master (outer) case GTIN (EAN/UPC)	00037332183323
Harmonized System (HS) code	8517.79.0000
Rack capacity	12U
Colour
Product colour	Black
Certificates
Certification	EIA-310-E, NOM
Logistics data
Master (outer) case width	660.4 mm
Master (outer) case length	965.2 mm
Master (outer) case height	711.2 mm
Master (outer) case gross weight	59 kg
Products per master (outer) case	1 pc(s)
Country of origin	China
Harmonized System (HS) code	8517.79.0000
