Tripp Lite SRW6U SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure

SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure

Key Features

• 6U rack constructed from powder-coated steel that stands up to tough environments
• Houses switches, routers and other equipment up to maximum 200 lb. load capacity
• Doors and side panels lock securely to help prevent damage, tampering or theft
• Ships fully assembled for immediate deployment and equipment mounting
• Provides physical equipment and media security required for PCI DSS compliance

Description

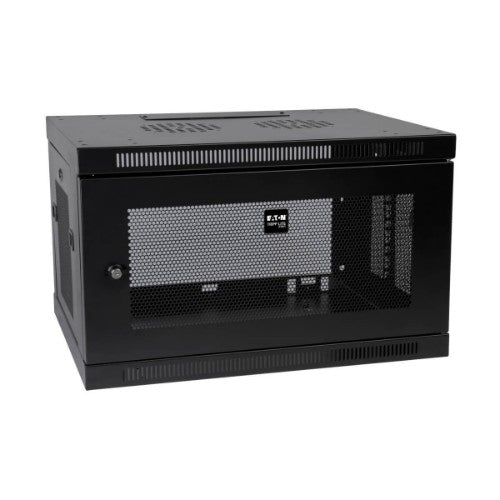

Switch-Depth 6U Server Cabinet Accommodates 19 in. Rack Equipment
This SmartRack® 6U rack enclosure is designed for home and office network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the SRW6U has a maximum stationary load capacity of 200 pounds (91 kilograms).

Keeps Important Equipment Secure

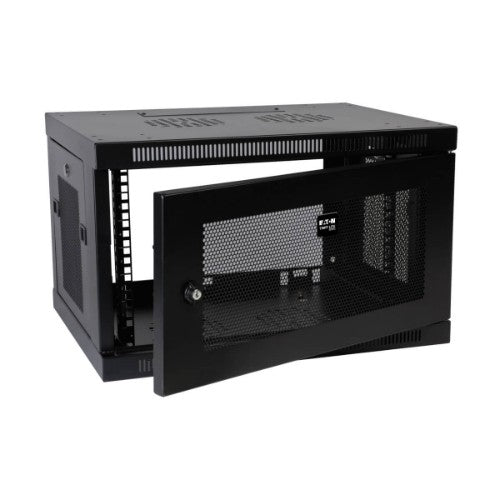

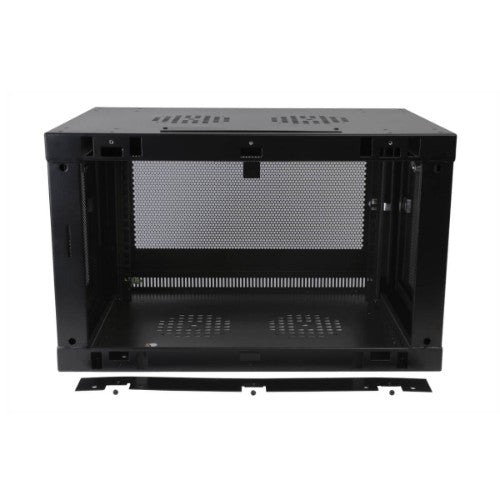

The reversible front door and removable side panels lock securely to help prevent damage, tampering or theft. The doors and side panels are designed for quick release, making it simple to access connected equipment and cabling with little effort. Convenient top and bottom access panels allow easy cable routing through the cabinet. The vented doors and sides, as well as vents on the top and bottom, allow generous airflow from front to rear and top to bottom to keep your equipment cool and functioning at its peak.

Easy Enclosure and Equipment Installation

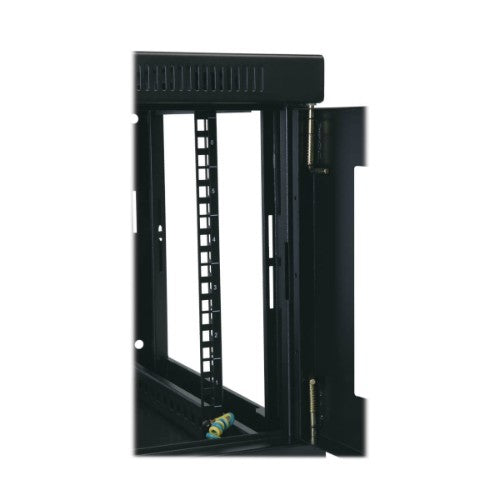

This 6U server rack comes fully assembled for quick and easy deployment. Front and rear vertical rails with square mounting holes accept standard rack equipment up to 16.5 inches (419 millimeters) deep, such as network switches, routers and patch panels. Hardware is included for wall-mounting the SRW6U. You can also use the optional SRCASTER kit (sold separately) to install metal casters to the rack and roll it along a level surface.

Meets Payment Card Industry Standards
The SRW6U provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.

Specifications

Weight & dimensions
Package depth	670.6 mm
Package width	523.2 mm
Package height	444.5 mm
Package weight	15.4 kg
Width	596.9 mm
Depth	444.5 mm
Height	368.3 mm
Weight	13.2 kg
Maximum weight capacity	90.7 kg
Packaging content
Wall mounting kit	Yes
Manual	Yes
Features
Rack capacity	6U
Type	Wall mounted rack
Maximum weight capacity	90.7 kg
Product colour	Black
Certification	EIA-310-E, RoHS
Packaging data
Wall mounting kit	Yes
Manual	Yes
Package depth	670.6 mm
Package width	523.2 mm
Package height	444.5 mm
Package weight	15.4 kg
Technical details
Package width	523.2 mm
Package height	444.5 mm
Type	Wall mounted rack
Harmonized System (HS) code	8517.79.0000
Rack capacity	6U
Colour
Product colour	Black
Certificates
Certification	EIA-310-E, RoHS
Logistics data
Master (outer) case width	523.2 mm
Master (outer) case length	670.6 mm
Master (outer) case height	444.5 mm
Master (outer) case gross weight	15.4 kg
Products per master (outer) case	1 pc(s)
Country of origin	China
Harmonized System (HS) code	8517.79.0000
