StarTech.com 18in SATA Serial ATA Data and Power Combo Cable

StarTech.com 18in SATA Serial ATA Data and Power Combo Cable

Description

Power your Internal SATA hard drive from an LP4 connector on your Power Supply

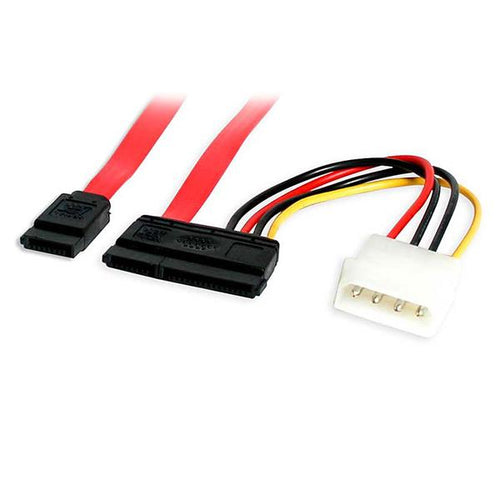

The SATA18POW SATA Data and Power Cable features a combination 22-pin SATA receptacle data and power connector as well as a LP4 power connector and SATA receptacle data connector, allowing you to create a conventional Serial ATA data connection to a computer while powering the drive through an LP4 connection to the computer power supply.

This high quality SATA power/LP4 adapter cable measures 18in, providing the flexibility required to position the SATA hard drive as needed within the computer case, while eliminating the expense of upgrading the computer power supply for the sake of SATA compatibility.

Constructed of only top quality materials and designed for optimum performance and reliability this 18" SATA data and power combo cable is backed by our lifetime warranty.

The StarTech.com Advantage

- Cost-effective solution for powering a SATA drive from an LP4 connection on the computer power supply, which eliminates the cost of a power supply upgrade for compatibility with SATA hard drives
- Features a thin cable design, which helps reduce clutter and increase airflow within the computer/server case, for optimum system performance
- Backed by StarTech.com lifetime warranty, ensuring a dependable connection

Specifications

Features
Maximum data transfer rate	6 Gbit/s
Cable type	SATA III
Cable length	0.457 m
Connector 1	SATA 7-pin + Molex (4-pin)
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Weight	27 g
Product colour	Red
Certification	CE, REACH
Technical details
Maximum data transfer rate	6 Gbit/s
Cable type	SATA III
Cable length	0.457 m
Connector 1	SATA 7-pin + Molex (4-pin)
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Product colour	Red
Certification	CE, REACH
I/O ports	1 - SATA Data 7 pin Female 1 - SATA Power Female 1 - SATA Data 7 pin Female 1 - LP4 Male
Sustainability certificates	RoHS
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Weight & dimensions
Weight	27 g
Packaging data
Package width	125 mm
Package depth	225 mm
Package height	10 mm
Package weight	32 g
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84733080
