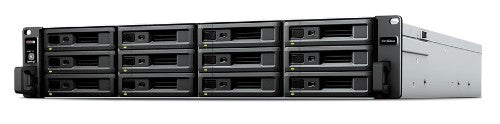

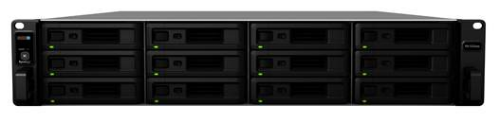

Synology RX1222sas HDD/SSD enclosure Black 2.5/3.5"

12x 2.5/3.5" SAS/SATA HDD/SSD, 100-240V AC, 88x482x724 mm

Description

Accommodate massive storage growth
Expand your Synology rackmount SAS storage 12 bays at a time, for up to 84 additional 3.5"/2.5" SAS/SATA drives with a maximum of seven Synology RX1222sas expansion units.1 Add volumes when and where needed without interrupting services, thanks to Synology DiskStation Manager (DSM)’s online volume expansion and powerful volume management options.

Easy setup and management
Connect the RX1222sas through the included expansion cable and start managing the additional storage in minutes with Storage Manager and other intuitive tools in Synology DSM. Online volume expansion enables you to add a new volume or expand RAID volumes without reformatting drives.

Fast and stable with Synology drives
Achieve higher levels of reliability with Synology’s SAS and SATA enterprise drives. Backed by hundreds of thousands of hours of rigorous testing, they ensure maximum integration and optimal performance when paired with your Synology deployment.

Built with service uptime in mind
RX1222sas’s hot-swappable drive trays, fans, and power supplies reduce the impact of maintenance on service availability, while the redundant power supply units keep your system online even in case one power source fails.

Specifications

Storage
Number of storage drives supported	12
Storage drive size	2.5/3.5"
Supported storage drive interfaces	SAS, Serial ATA, Serial ATA II, Serial ATA III
Maximum storage capacity	192 TB
Hot-swap	Yes
Ports & interfaces
USB connectivity	No
Technical details
Rack mounting	Yes
Rack capacity	2U
Number of fans	4 fan(s)
Hot-swap	Yes
Fan diameter	8 cm
Product colour	Black
Maximum storage capacity	192 TB
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Design
Product type	HDD/SSD enclosure
Rack mounting	Yes
Rack capacity	2U
Certification	FCC CE BSMI UKCA EAC VCCI RCM KC
Number of fans	4 fan(s)
Fan diameter	8 cm
Product colour	Black
Performance
Noise level	54.5 dB
Power
Power source type	AC
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Certificates
Certification	FCC CE BSMI UKCA EAC VCCI RCM KC
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	13.5 kg
Width	724 mm
Depth	482 mm
Height	88 mm
Packaging content
Manual	Yes
Cables included	AC
Logistics data
Harmonized System (HS) code	84733080
