StarTech.com 4 Bay Thunderbolt 3 NVMe Enclosure, For M.2 NVMe SSD Drives, 1x DisplayPort Video/ 2x TB3 Downstream Ports, 40Gbps, 72W Power Supply, External Hard Drive Enclosure

StarTech.com 4 Bay Thunderbolt 3™ NVMe Enclosure, For M.2 NVMe SSD Drives, 1x DisplayPort Video/ 2x TB3 Downstream Ports, 40Gbps, 72W Power Supply, External Hard Drive Enclosure (M2E4BTB3)

Key Features

• HIGH PERFORMANCE M.2 STORAGE VIA THUNDERBOLT 3 : Turn up to 4 PCIe 80mm M.2 SSDs (M-Key) into an external TB3 storage solution; Data transfer speeds up to 40Gbps; Downstream TB3 port; DisplayPort video output; Vented metal enclosure w/thermal pads & fan
• MAXIMIZE DRIVE SPEED: Connect up to four M.2 PCIe NVMe and/or AHCI drives with an 8Gbps PCIe lane dedicated to each SSD; Supports software RAID with storage management systems like Storage Spaces (Microsoft) , RAID Assistant (macOS), mdraid/mdadm (Linux)
• FLEXIBLE PORT OPTIONS: DisplayPort output to connect to a display with resolutions up to 4K 60Hz; Downstream TB3 port to daisy chain additional TB3 devices or a compatible TB3 display (up to 5K 60Hz); Connected devices share bandwidth with connected SSDs
• THUNDERBOLT 3 CERTIFIED: Works w/TB3 & TB4 host devices like MacBook Pro 16/13/Air (Dual displays on Mac w/Intel & M1 Pro/Max Processor; Dual display not supported on M1 Mac), Lenovo ThinkPad X1 Carbon/T Series, Dell XPS/Latitude/Precision & HP EliteBook
• POWER ADAPTER & THUNDERBOLT 3 CABLE INCLUDED: Self powered with an included 72W EPS power supply that powers the enclosure, the connected drives and provides 15W to TB3 port; Includes 2.3 ft (70cm) TB3 certified passive cable; NOT COMPATIBLE WITH SATA SSD

Description

4-Drive PCIe M.2 Enclosure | Thunderbolt™ 3 | 72W EPS Power Supply & 2.3 ft (70 cm) Thunderbolt 3 Cable Included

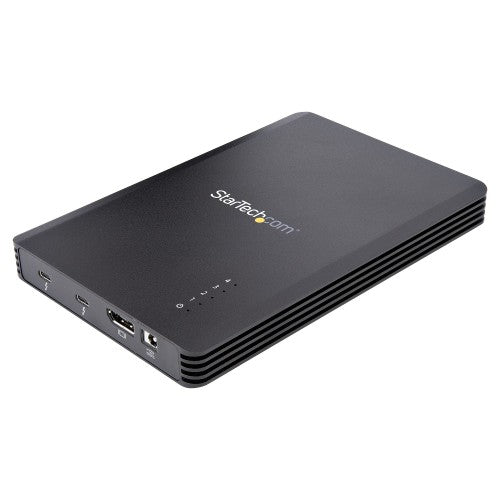

This Thunderbolt™ 3 to 4x M.2 PCIe SSD enclosure enables you to turn four M-Key PCI-Express based M.2 NVMe or AHCI solid state drives (SSDs) into a high-performance external storage solution.

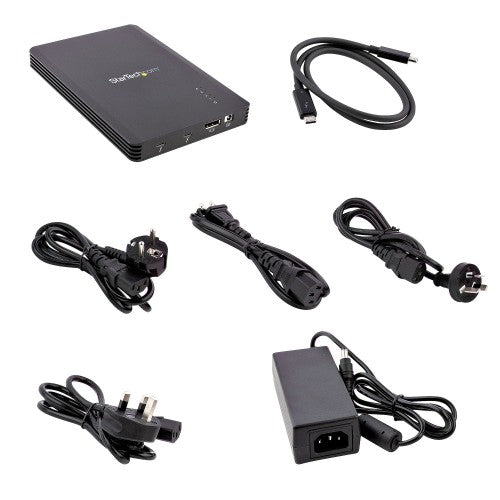

The SSD enclosure is self-powered with an included 72W EPS power supply that powers the enclosure, the connected drives, and provides up to 15W of power to any downstream Thunderbolt 3 devices. A 2.3 ft. (70 cm) Thunderbolt 3 Certified host cable is also included, to connect the enclosure to your computer.

High Performance M.2 Storage via 40Gbps Thunderbolt 3

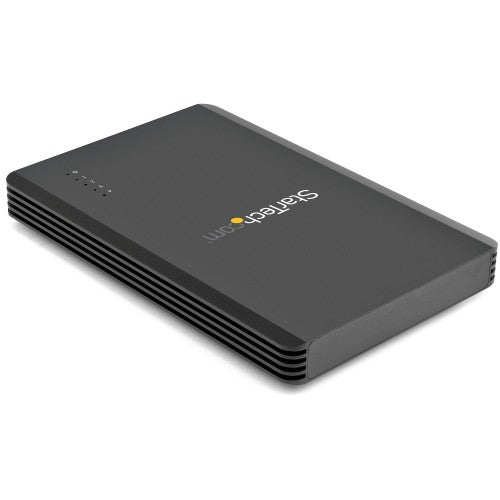

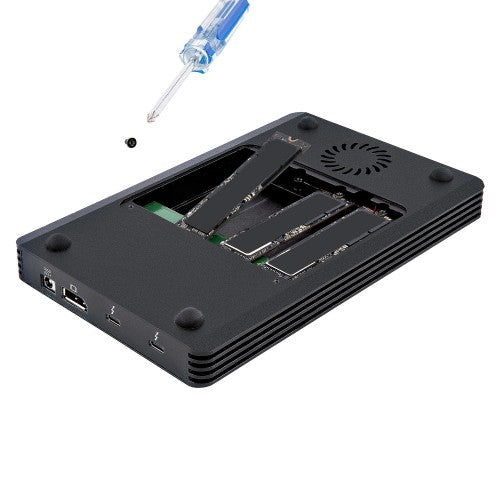

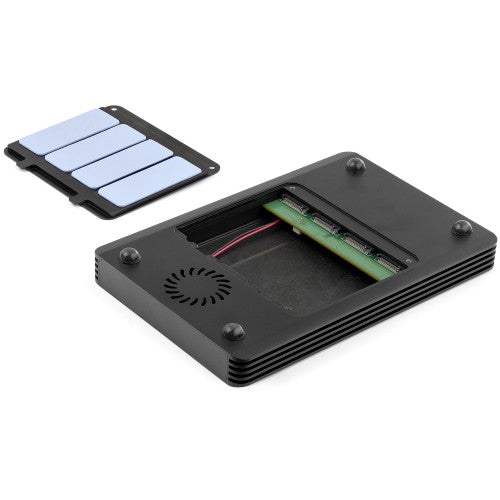

The enclosure is compatible with 80mm M.2 PCIe based (M-Key) single/double-sided SSDs. Create an external storage solution that utilizes the high-performance bandwidth available to your Thunderbolt 3 port, providing combined data transfer speeds of up to 40Gbps for up to four drives. The vented metal enclosure features thermal pads and a cooling fan to ensure your SSDs are operating at optimal temperatures.

Dedicated 8Gbps Throughput for Each Individual Drive

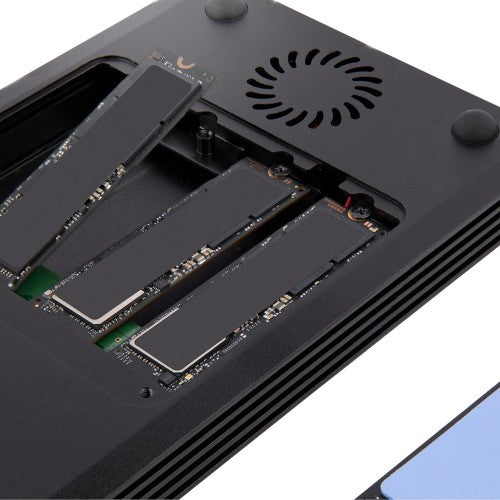

A single 8 Gbps PCIe lane is dedicated to each connected drive. This ensures consistent read/write performance across the entire enclosure, regardless of individual drive activity. The enclosure also supports software RAID with storage management systems like Storage Spaces (Microsoft), RAID Assistant (macOS), or mdraid/mdadm (Linux). The support for software RAID, combined with exceptional drive performance, makes this the ideal enclosure for creative professionals working with large files such as high-resolution graphics, video, and CAD files.

Thunderbolt Certified

This enclosure is Thunderbolt Certified to ensure an optimal user experience and compatibility when connected to a Thunderbolt 3 host device, such as a MacBook Pro 16, 13, Air, Lenovo ThinkPad X1 Carbon / T Series, Dell XPS / Latitude / Precision or HP EliteBook. The external drive enclosure is also forward compatible with Thunderbolt 4 devices (at Thunderbolt 3 performance).

Additional Ports for Workspace Flexibility

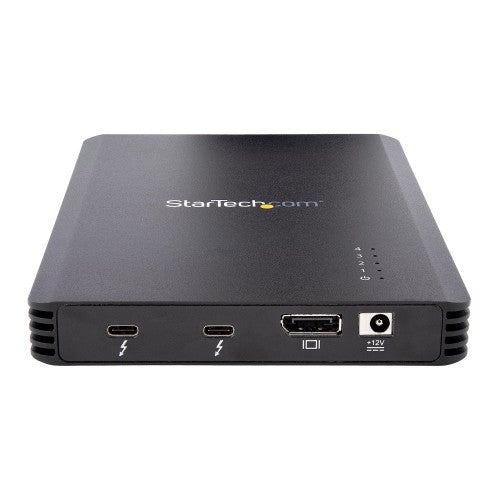

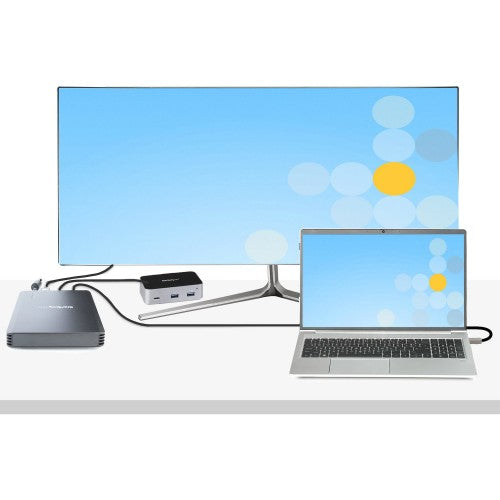

The enclosure features a DisplayPort output port, enabling you to connect a DisplayPort monitor to your computer through the Thunderbolt 3 enclosure, with resolutions up to 4K 60Hz. The enclosure also features a downstream Thunderbolt 3 port for daisy chaining an additional TB3 device or connect an additional TB3 compatible display (up to 5K 60Hz).

M2E4BTB3 is backed by a 2-year StarTech.com warranty, with free lifetime North American based multilingual technical support.

Notes:

• This device is not compatible with SATA based (B-Keyed or M+B Keyed) M.2 solid state drives.
• This device does not support Thunderbolt 2 or Thunderbolt 1 host devices using interface adapters.
• This device only supports 80mm M.2 SSDs.
• Connected downstream devices share bandwidth with connected SSDs and may reduce overall data transfer performance when connected.
• Apple Mac computers with M1 processors can only support one external display connected through the SSD enclosure. However, Apple Mac computers with Intel or M1 Max / Pro processors can support dual external displays connected through the SSD enclosure.

The StarTech.com Advantage

Specifications

Storage
Number of storage drives supported	4
Storage drive size	M.2
Supported storage drive interfaces	M.2
Supported storage drive lengths	80 mm
Ports & interfaces
USB connectivity	Yes
USB connector type	USB Type-C
USB connector gender	Female
USB ports quantity	2
DC-in jack	Yes
Technical details
Plug and Play	Yes
Number of fans	1 fan(s)
LED indicators	Activity, Power
Fan diameter	4 cm
Data transfer rate	40 Gbit/s
Product colour	Black
Chipset	Intel - JHL6540, TI - TPS65983B
Harmonized System (HS) code	84733080
Compliance certificates	CE, RoHS
Design
Product type	SSD enclosure
Number of fans	1 fan(s)
LED indicators	Activity, Power
Fan diameter	4 cm
Product colour	Black
Performance
Mean time between failures (MTBF)	50000 h
Noise level	34.5 dB
Plug and Play	Yes
Data transfer rate	40 Gbit/s
Chipset	Intel - JHL6540, TI - TPS65983B
Power
Compatible power plug types	AU, EU, JP, UK, US
AC adapter output voltage	12 V
AC adapter output current	6 A
AC adapter input voltage	100 - 240 V
AC adapter input current	2 A
Packaging data
Package weight	620 g
Package width	234 mm
Package depth	157 mm
Package height	132 mm
Operational conditions
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	20 - 80%
Weight & dimensions
Weight	610 g
Width	160 mm
Depth	120 mm
Height	20 mm
Package weight	620 g
Package width	234 mm
Package depth	157 mm
Package height	132 mm
Packaging content
Manual	Yes
AC adapter included	Yes
Cables included	AC, Thunderbolt
Logistics data
Master (outer) case width	540 mm
Master (outer) case length	260 mm
Master (outer) case height	380 mm
Products per master (outer) case	8 pc(s)
Harmonized System (HS) code	84733080
