StarTech.com USB-C 10Gbps to M.2 NVMe SSD Enclosure - Portable External M.2 NGFF PCIe Aluminum Case - 1GB/s Read/Write - Supports 2230, 2242, 2260, 2280 - TB3 Compatible - Mac & PC

StarTech.com USB-C 10Gbps to M.2 NVMe SSD Enclosure - Portable External M.2 NGFF PCIe Aluminum Case - 1GB/s Read/Write - Supports 2230, 2242, 2260, 2280 - TB3 Compatible - Mac & PC (M2E1BMU31C)

Key Features

• Turn your M.2 NVMe drive into an ultra-fast, ultra-portable storage solution for your USB-C or Thunderbolt 3 devices
• Features a solid aluminum housing designed with ventilation holes for optimal heat dissipation
• Experience an extremely fast performance with support for USB 3.1 Gen 2 and PCI Express 3.0
• Maximize portability with a small footprint, lightweight design and USB-powered performance
• Backward compatible with USB 3.1 Gen 1

Description

External NVMe Enclosure | Thunderbolt 3 Compatible | USB-C Cable Included

This compact M.2 NVMe SSD Enclosure for PCIe SSDs is a highly portable, high-performance data storage solution for your USB-C or Thunderbolt 3 enabled devices.

Unparalleled Performance

Leverage the high speeds of your M.2 NVMe drive, with this external SSD enclosure. It delivers USB 3.1 Gen 2 read/write speeds up to 10Gbps, which is nearly twice the capability of traditional M.2 SATA enclosures and USB 3.1 Gen 1. NVMe allows users to take full advantage of the throughput available to USB 3.1 Gen 2, which would not be possible with a SATA drive.

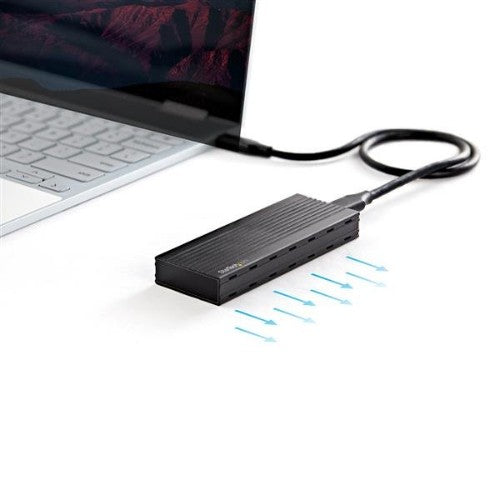

This enclosure also features ventilation holes to help dissipate heat, ensuring an optimal operating temperature and helping to preserve performance.

Truly Portable

This slim, pocket-sized enclosure for PCIe based NVMe is specially designed for mobility, with a small form-factor design that fits easily into your laptop bag. Its lightweight, yet durable aluminum housing helps to ensure your drive won’t be damaged while you’re on the move.

Broad Compatibility

The M.2 NVMe enclosure works with tablets, laptops, desktop computers and hosts that are equipped with USB Type-C and Thunderbolt 3 ports. It's also backward compatible with USB 3.1 Gen 1, making it a convenient solution for the office or other workplace environments.

Additionally, the enclosure supports plug-and-play installation, making it the perfect accessory for professionals on the go.

M2E1BMU31C is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Turn your M.2 NVMe drive into an ultra-fast, ultra-portable storage solution for your USB-C or Thunderbolt 3 devices
- Features a solid aluminum housing designed with ventilation holes for optimal heat dissipation
- Experience an extremely fast performance with support for USB 3.1 Gen 2 and PCI Express 3.0

Specifications

Storage
Number of storage drives supported	1
Storage drive size	M.2
Supported storage drive interfaces	M.2
Supported storage drive lengths	30,42,60,80 mm
Ports & interfaces
USB version	3.2 Gen 2 (3.1 Gen 2)
USB connectivity	Yes
USB connector type	USB Type-C
USB connector gender	Female
USB ports quantity	1
Integrated USB cable	No
Technical details
Plug and Play	Yes
Material	Aluminium, Plastic
LED indicators	Activity, Power
Data transfer rate	10 Gbit/s
Product colour	Black
Chipset	ASMedia - ASM2362
USB version	3.2 Gen 2 (3.1 Gen 2)
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Design
Product type	SSD enclosure
Certification	CE, FCC, REACH
Material	Aluminium, Plastic
LED indicators	Activity, Power
Product colour	Black
Performance
UASP support	Yes
Hardware encryption	Yes
Mean time between failures (MTBF)	233398 h
Plug and Play	Yes
Data transfer rate	10 Gbit/s
Chipset	ASMedia - ASM2362
Power
Power source type	USB
Packaging data
Package weight	155 g
Package width	106 mm
Package depth	154 mm
Package height	35 mm
Certificates
Certification	CE, FCC, REACH
Operational conditions
Storage temperature (T-T)	-10 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%

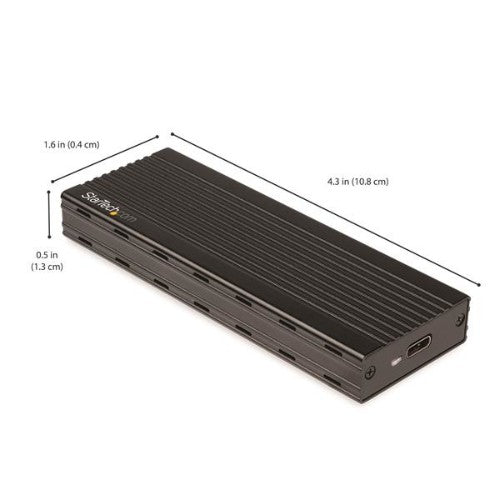

Weight & dimensions
Weight	65 g
Width	40 mm
Depth	108 mm
Height	13 mm
Package weight	155 g
Package width	106 mm
Package depth	154 mm
Package height	35 mm

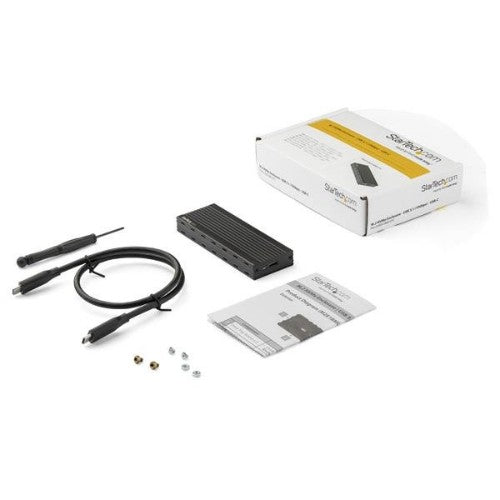

Packaging content
Manual	Yes
Screwdriver included	Yes
Cables included	USB Type-C to USB Type-C
Logistics data
Master (outer) case width	384 mm
Master (outer) case length	470 mm
Master (outer) case height	249 mm
Products per master (outer) case	60 pc(s)
Harmonized System (HS) code	84733080
