Neomounts WL30-265BL1 TV mount wall 43-85" Samsung screens - ultra-flat

Neomounts WL30-265BL1 Ultra-flat TV mount wall - 43-85" - max 60 kg - VESA 150x100-1200x800 - d 0,75 cm - blacksuitable for Samsung QMC, QBC and QHC screens - black

Description

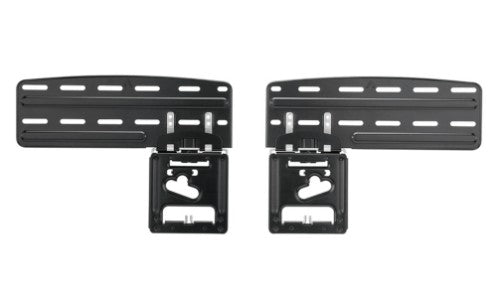

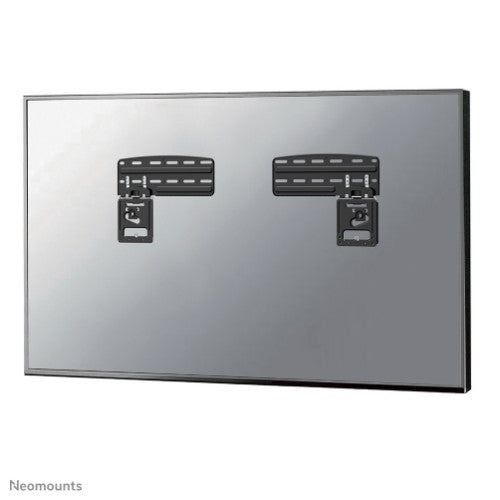

The Neomounts WL30-265BL1 offers the ideal ultra-slim solution for various Samsung screens* up to 85", including the Crystal UHD professional signage displays. This mount allows your screen to be installed incredibly close to the wall, leaving just 3-7,5 mm space depending on the TV model. Your TV will look like a painting on the wall. Level adjustment is available for the perfect installation.

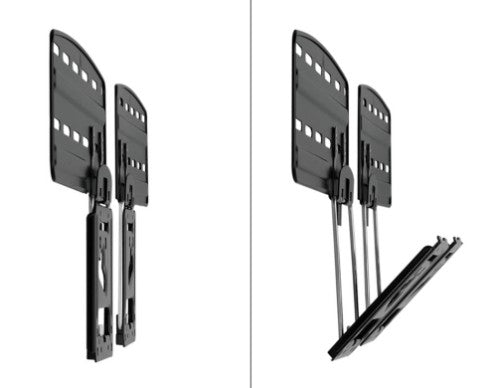

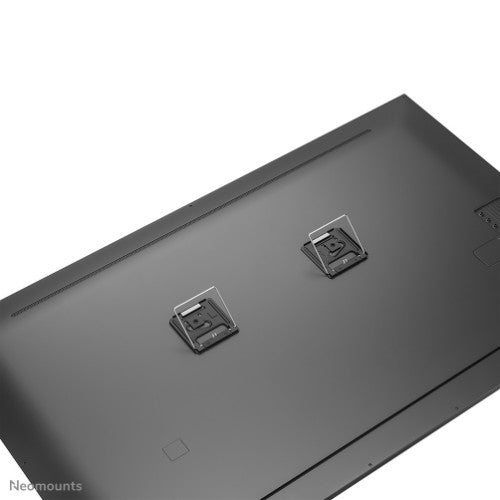

The WL30-265BL1 is suitable for screens that meet VESA hole pattern 150x100 to 1200x800 mm and supports a maximum weight of 60kg. Strong magnetic contacts ensure solid placement of the screen while the convenient kickstand option allows easy access to cables and connectors behind the screen. Anti-skid pads ensure safe and scratch-free installation of the screen to the mount.


* The Neomounts WL30-265BL1 wall mount is optimised for the following Samsung models:

2025 Samsung models
- 43-85": QN1EF, QN70F,QN85F, QN84F, QN90F

2024 Samsung models
-\t43-85": Crystal UHD Signage Displays QMC, QBC, QHC, QN95D/C, QN90D/C, QN85D/C

2023 Samsung models
-\t43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000
-\t50-85": The Frame (2021-2023)

2022 Samsung models
-\t43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B

2021 Samsung models
-\t43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000)

NOT compatible with Samsung models
-\t77": OLED S90C, S95C, QLED Q80A, Q80C, Neo QLED QN95D, QN95C
-\tCrystal UHD CU7000

For detailed compatibility, please refer to the online manual.

Specifications

Mounting
Maximum weight capacity (per display)	60 kg
Mounting type	Wall
Minimum screen size	109.2 cm (43")
Panel mounting interface	1000 x 400,1000 x 600,1000 x 800,1000 x 700,1200 x 600,1200 x 800,1200 x 900,1400 x 800,1500 x 900,1500 x 600,150 x 200,1600 x 600,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 900,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,460 x 640,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,700 x 400,800 x 800,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600,900 x 600
Number of displays supported	1
Minimum VESA mount	150 x 100 mm
Maximum VESA mount	1200 x 800 mm
Maximum screen size	2.16 m (85")
Maximum weight capacity	60 kg
Ergonomics
Cable management	No
Distance to the wall (max)	7.5 mm
Type	Fixed
Technical details
Cable management	No
Number of displays supported	1
Distance to the wall (max)	7.5 mm
Product colour	Black
Mounting type	Wall
Country of origin	China
Master (outer) case net weight	12 kg
Warranty period	5 year(s)
Lockable	Not lockable
Design
Cable management	No
Product colour	Black
Housing material	Steel
Features
Compatible products	- 43-85": Crystal UHD Signage Displays QMC, QBC, QHC 2023 Samsung - 43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000 - 50-85": The Frame (2021-2023) 2022 Samsung - 43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B 2021 Samsung - 43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000)
Weight & dimensions
Width	640 mm
Depth	7.5 mm
Height	236 mm
Weight	1.2 kg
Depth (max)	7.5 mm
Packaging data
Package width	162 mm
Package depth	63 mm
Package height	363 mm
Package weight	1.6 kg
Logistics data
Master (outer) case width	350 mm
Master (outer) case length	345 mm
Master (outer) case height	380 mm
Master (outer) case gross weight	16.5 kg
Products per master (outer) case	10 pc(s)
Master (outer) case net weight	12 kg
Products per pallet (EU)	243 pc(s)
Harmonized System (HS) code	7326909890
Other features
Mounting type	Wall
Country of origin	China
