StarTech.com 1.6ft (50cm) Rugged Right Angle USB-C Cable, USB 3.2 Gen 2 (10 Gbps), Full-Featured USB C to C Data transfer Cable, 4K 60Hz DP Alt Mode, 100W Power Delivery - 90 Degree USB Type-C Cable

StarTech.com 1.6ft (50cm) USB-C Cable, Right-Angled, USB 10Gbps, 100W (5A) PD, 8K 60Hz/4K 144Hz, Thunderbolt Compatible

Key Features

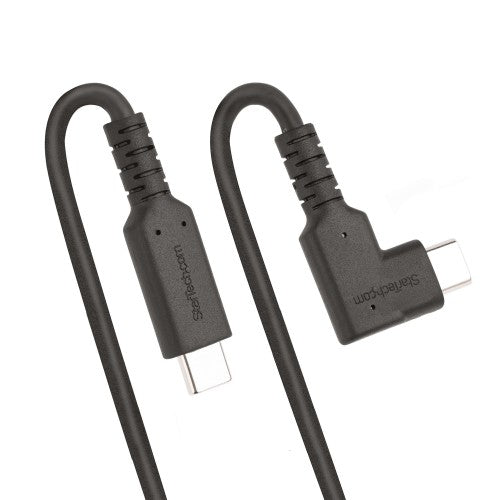

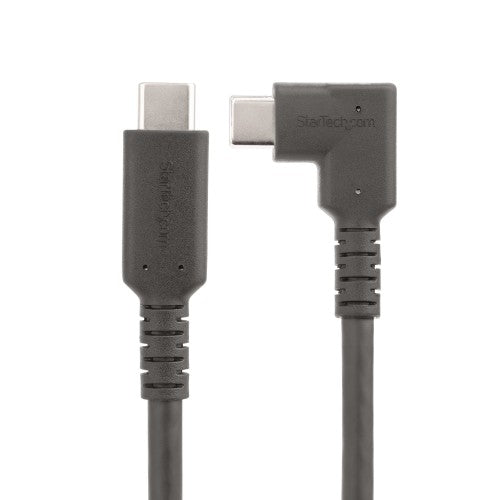

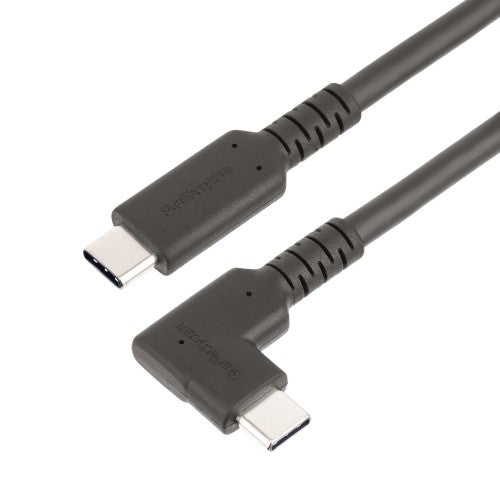

• RIGHT ANGLE USB CABLE: Rugged USB Type-C Cable features a right angle USB-C connector; Ideal for connecting in tight spaces; 90 degree connector optimizes cable routing without placing unnecessary strain on the connector and device
• DURABLE CONSTRUCTION: The USB-C cable is reinforced with Aramid fiber to enhance flexibility and protection from frequent bending and wear; Robust strain reliefs with 8mm bend radius; Nickel-plated connectors rated beyond 10,000 insertion cycles

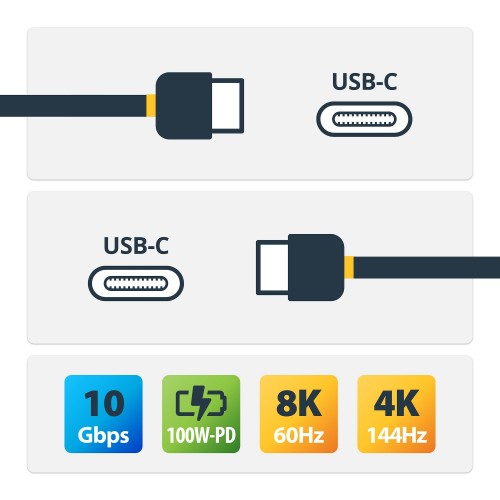

• FULL-FEATURE USB-C: Right angle USB-C cable supports up to 10 Gbps transfer rates, 4K 60Hz DP Alt Mode, and 100W Power Delivery; Universal compatibility between USB-C laptops, docking stations, UHD monitors, and external devices
• THOUGHTFUL DESIGN: Built-in E-Marker chip for consistent data, video, and Power Delivery output; Flexible TPE outer jacket is nontoxic, halogen-free, and RoHS compliant; Aluminum-mylar shield for enhanced EMI protection
• PERFORMANCE: USB 3.2 Gen 2 (10 Gbps); 4K 60Hz DP Alt Mode 1.2; 100W Power Delivery; 1.6ft (50cm); Black; 4.8mm O.D.; Dock and charge a USB-C laptop over a single connection; Optimize cable routing to a USB-C device

Description

Connect and charge USB Type-C devices with a rugged right-angle USB-C Cable

Connect USB 10 Gbps source and peripheral devices, using this 1.6ft (50cm) Rugged Right Angle USB Type-C Cable. Position the right angle USB-C connection along the device to reduce cable clutter and avoid prolonged strain from bending.

It is ideal for 10 Gbps data transfer to external USB-C-enabled external storage devices, or as a single-cable connection from a USB-C dock to a laptop.

Experience 4K Video with DisplayPort 1.2 Alt Mode

The Rugged USB-C cable supports up to 4K 60Hz video over DisplayPort 1.2 Alt Mode, and is compatible with 1080p and lower resolutions.

Enhanced Durability

Designed to withstand heavy use, the USB-C cable features an Aramid fiber core and durable TPE outer jacket. This heavy-duty construction protects against fraying or breakage and resists tangling.

Full-Featured USB-C Power and Data

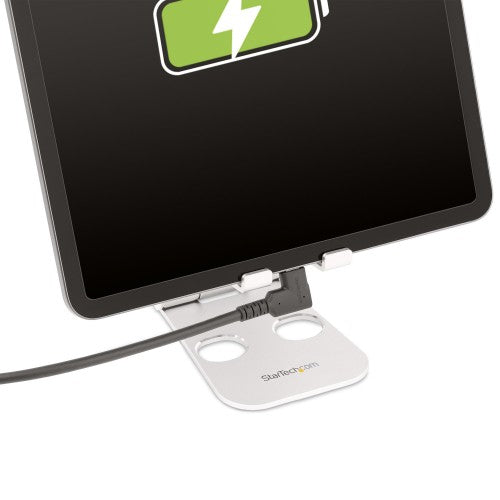

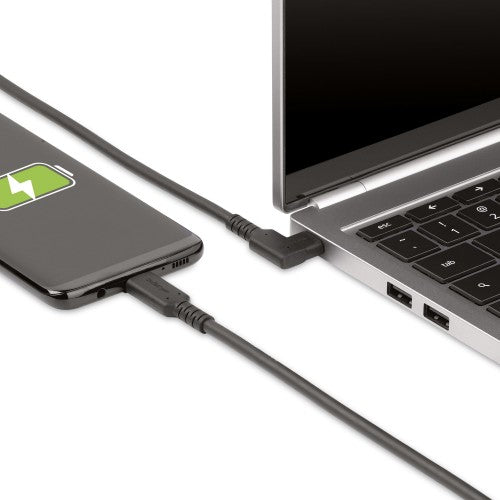

This USB Type-C cable features Power Delivery (PD) 3.0 with up to 100W PD output. Power and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface with up to 100W output over USB Power Delivery 3.0. Connect the USB-C cable from a laptop to a USB-C wall charger or docking station.

The StarTech.com Advantage

Specifications

Features
Cable shielding	Aluminum mylar foil
Connector 1 form factor	Straight
Connector 2 form factor	Straight
USB version	USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1	USB C
Connector 2	USB C
Cable length	0.5 m
Connector contacts plating	Nickel
Maximum data transfer rate	10000 Mbit/s
Product colour	Black
Cable type	Round cable
Connector 1 gender	Male
Connector 2 gender	Male
USB Power Delivery (USB PD)	Yes
Cable jacket material	Thermoplastic elastomer (TPE)
USB Power Delivery up to	100 W
Maximum resolution	4096 x 2160 pixels
Maximum refresh rate	60 Hz
DisplayPort version	1.2
USB Type-C DisplayPort Alternate Mode	Yes
Maximum data transfer rate	10 Gbit/s
Cable diameter	4.8 mm
Weight & dimensions
Cable diameter	4.8 mm
Cable length	0.5 m
Bend radius (min)	8 mm
Package width	220 mm
Package depth	128 mm
Package height	14 mm
Package weight	90 g
Packaging data
Package width	220 mm
Package depth	128 mm
Package height	14 mm
Package weight	90 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Ports & interfaces
USB version	USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1	USB C
Connector 2	USB C
Connector contacts plating	Nickel
Data transmission
Maximum data transfer rate	10000 Mbit/s
Technical details
Product colour	Black
Other features
Product colour	Black
Cable type	Round cable
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Logistics data
Products per master (outer) case	250 pc(s)
Master (outer) case width	430 mm
Master (outer) case length	380 mm
Master (outer) case height	290 mm
