StarTech.com 3ft (1m) Rugged Right Angle USB-C Cable, USB 3.2 Gen 2 (10 Gbps), Full-Featured USB C to C Data transfer Cable, 4K 60Hz DP Alt Mode, 100W Power Delivery - 90 Degree USB Type-C Cable

StarTech.com 3.3ft (1m) USB-C Cable, Right-Angled, USB 10Gbps, 100W (5A) PD, 8K 60Hz / 4K 144Hz, Thunderbolt Compatible

Key Features

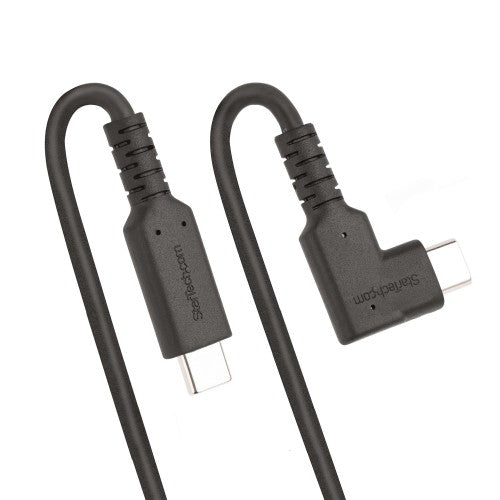

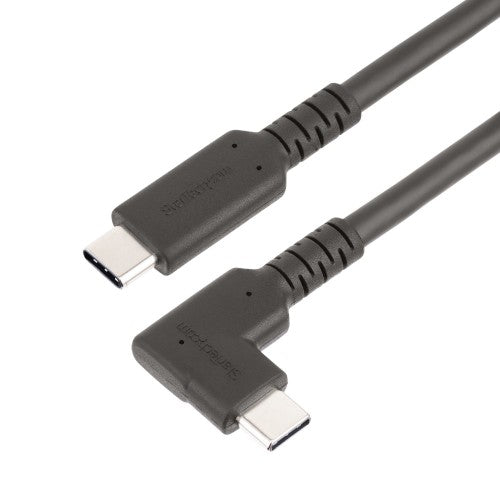

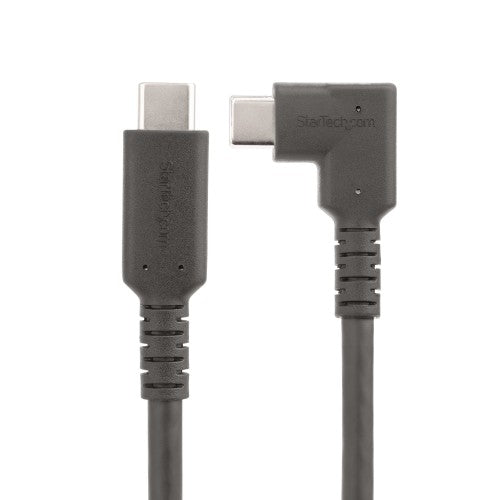

• RIGHT ANGLE USB CABLE: Rugged USB Type-C Cable features a right angle USB-C connector; Ideal for connecting in tight spaces; 90 degree connector optimizes cable routing without placing unnecessary strain on the connector and device
• DURABLE CONSTRUCTION: The USB-C cable is reinforced with Aramid fiber to enhance flexibility and protection from frequent bending and wear; Robust strain reliefs with 8mm Bend Radius; Nickel-plated connectors rated beyond 10,000 Insertion Cycles
• FULL-FEATURE USB-C: Right angle USB-C cable supports up to 10 Gbps transfer rates, 4K 60Hz DP Alt Mode, and 100W Power Delivery; Universal compatibility between USB-C laptops, docking stations, UHD monitors, and external devices
• THOUGHTFUL DESIGN: Built-in E-Marker chip for consistent data, video, and Power Delivery output; Flexible TPE outer jacket is nontoxic, halogen-free, and RoHS compliant; Aluminum-mylar shield for enhanced EMI protection
• PERFORMANCE: USB 3.2 Gen 2 (10 Gbps); 4K 60Hz DP Alt Mode 1.2; 100W Power Delivery; 3.3ft (1m); Black; 4.8mm O.D.; Dock and charge a USB-C laptop over a single connection; Optimize cable routing to a USB-C device

Description

Connect and charge USB Type-C devices with a rugged right-angle USB-C Cable

Connect USB 10Gbps source and peripheral devices, using this 3.3ft (1m) Rugged Right Angle USB Type-C Cable. Position the right angle USB-C connection along the device to reduce cable clutter and avoid prolonged strain from bending.

It is ideal for 10Gbps data transfer to external USB-C-enabled external storage devices, or as a single-cable connection from a USB-C dock to a laptop.

Experience 4K Video with DisplayPort 1.2 Alt Mode

The Rugged USB-C cable supports up to 4K 60Hz video over DisplayPort 1.2 Alt Mode, and is compatible with 1080p and lower resolutions.

Enhanced Durability

Designed to withstand heavy use, the USB-C cable features an Aramid fiber core and durable TPE outer jacket. This heavy-duty construction protects against fraying or breakage and resists tangling.

Full-Featured USB-C Power and Data

This USB Type-C cable features Power Delivery (PD) 3.0 with up to 100W PD output. Power and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface with up to 100W output over USB Power Delivery 3.0. Connect the USB-C cable from a laptop to a USB-C wall charger or docking station.

The StarTech.com Advantage

Specifications

Features
Cable shielding	Aluminum mylar foil
Connector 1 form factor	Angled
Connector 2 form factor	Straight
USB version	USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1	USB C
Connector 2	USB C
Cable length	1 m
Connector contacts plating	Nickel/Gold
Maximum data transfer rate	10000 Mbit/s
Product colour	Black
Cable type	Round cable
Connector 1 gender	Male
Connector 2 gender	Male
USB Power Delivery (USB PD)	Yes
Cable jacket material	Thermoplastic elastomer (TPE)
USB Power Delivery up to	100 W
Maximum resolution	4096 x 2160 pixels
Maximum refresh rate	60 Hz
DisplayPort version	1.2
USB Type-C DisplayPort Alternate Mode	Yes
Maximum data transfer rate	10 Gbit/s
Output current (max)	5 A
Cable diameter	4.8 mm
Quantity per pack	1 pc(s)
Power
Output current (max)	5 A
Weight & dimensions
Cable diameter	4.8 mm
Cable length	1 m
Bend radius (min)	8 mm
Package width	128 mm
Package depth	220 mm
Package height	14 mm
Package weight	95 g
Packaging data
Package width	128 mm
Package depth	220 mm
Package height	14 mm
Package weight	95 g
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Ports & interfaces
USB version	USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1	USB C
Connector 2	USB C
Connector contacts plating	Nickel/Gold
Data transmission
Maximum data transfer rate	10000 Mbit/s
Technical details
Product colour	Black
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Certificates
Compliance certificates	CE, RoHS
Other features
Product colour	Black
Cable type	Round cable
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Compliance certificates	CE, RoHS
Logistics data
Products per master (outer) case	200 pc(s)
Master (outer) case width	380 mm
Master (outer) case length	430 mm
Master (outer) case height	290 mm
