StarTech.com 5m USB 2.0 Active Extension Cable - M/F

StarTech.com 5m USB 2.0 Active Extension Cable M/F - 5 meter USB A Male to USB A Female USB 2.0 Repeater / Extender Cable - Black - 15ft

Description

The USB2AAEXT5M 5m Active USB 2.0 Extension Cable offers one USB-A male connector and one USB-A female connector, and provides an active extension of USB 2.0 devices of up to 5-meters (15-feet).

An all-in-one cable for overcoming distance restrictions as well as power source limitations, the active USB 2.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables. Plus you can daisy chain 4 cables for a total USB extension of up to 20-meters.

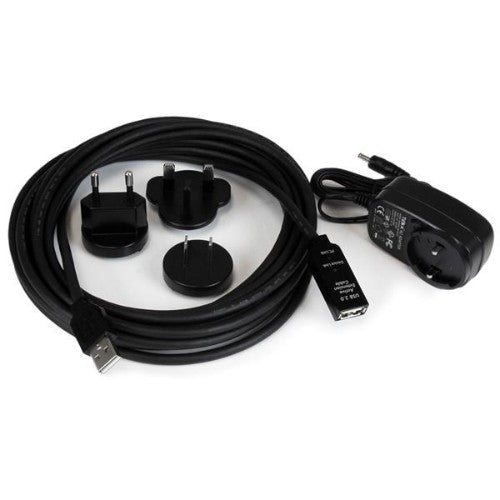

If necessary, the cable can be powered from a wall outlet using the Universal AC power adapter that was provided with the cable – this will allow you to use USB bus-powered devices that may require extra power.

The USB2AAEXT5M repeater cable supports the full USB 2.0 bandwidth of 480 Mbps, and is backed by StarTech.com's 2-year Warranty.

The StarTech.com Advantage
- No USB signal loss, even at a distance of up to 15 feet (5 meters)
- Power your USB devices directly from the USB port or through the included universal external power adapter
- Daisy chain up to 4 cables together for reaching connection distances of up to 20-meters between your USB 2.0 devices

Specifications

Features
Connector gender	Male/Female
Cable shielding	Aluminum mylar foil
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Plug and Play	Yes
Reversible connectors	No
AWG wire size	24
USB version	USB 2.0
Connector 1	USB A
Connector 2	USB A
Cable length	5 m
Connector contacts plating	Nickel
Maximum data transfer rate	480 Mbit/s
Product colour	Black
Certification	CE, FCC
Connector 1 gender	Male
Connector 2 gender	Female
Cable jacket material	Polyvinyl chloride (PVC)
Maximum data transfer rate	0.48 Gbit/s
Output voltage	5 V
Output current (max)	1 A
Weight	286 g
Quantity per pack	1 pc(s)
Power
Output voltage	5 V
Output current (max)	1 A
Weight & dimensions
Cable length	5 m
Weight	286 g
Package width	226 mm
Package depth	215 mm
Package height	58 mm
Package weight	472 g
Packaging data
Package width	226 mm
Package depth	215 mm
Package height	58 mm
Package weight	472 g
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Ports & interfaces
USB version	USB 2.0
Connector 1	USB A
Connector 2	USB A
Connector contacts plating	Nickel
Data transmission
Maximum data transfer rate	480 Mbit/s
Technical details
Product colour	Black
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Certificates
Certification	CE, FCC
Compliance certificates	RoHS
Other features
Product colour	Black
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	84733080
