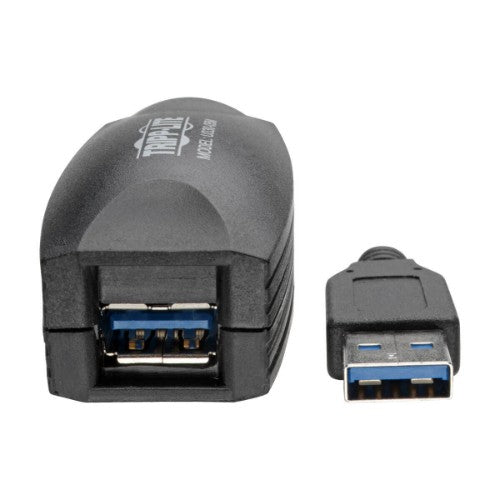

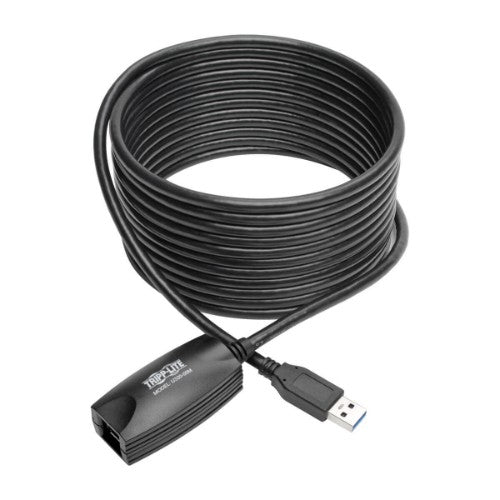

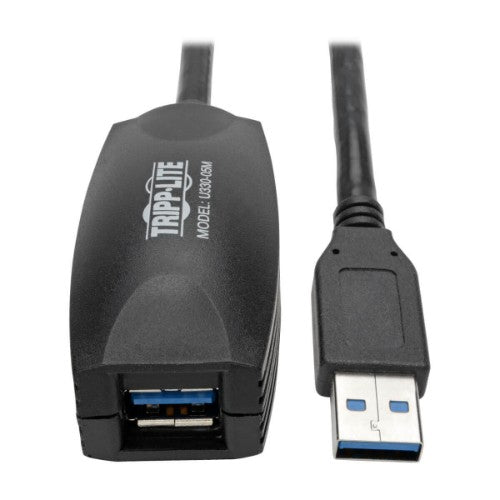

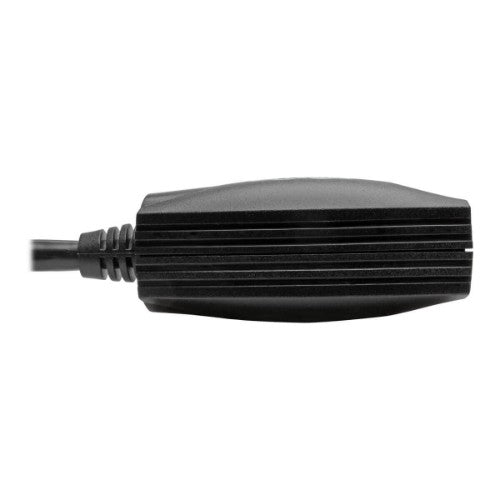

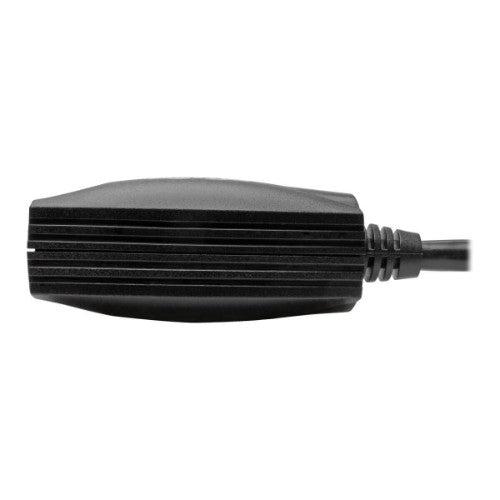

Tripp Lite U330-05M USB 3.0 SuperSpeed Active Extension Repeater Cable (A M/F), 5M (16.4 ft.)

USB 3.0 SuperSpeed Active Extension Repeater Cable (A M/F), 5M (16.4 ft.)

Key Features

• Extend a USB 3.0 signal 16.4-ft. (5 m.)
• Increase the extension distance to 32.8-ft. (10 m.) by connecting two U330-05M together
• Supports USB 3.0 SuperSpeed data transfer rates up to 5Gbps

Description

This USB 3.0 active extension cable is a bus-powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. Increase the extension distance to 32.8 feet (10 meters) by connecting two U330-05M together. USB limits a cable's length to 16 feet (4.9 meters). Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The cable must be plugged directly into a USB port (either on the PC or a hub). Use a standard six-foot (1.8-meter), 10-foot (3.1-meter) or 15-foot (4.6-meter) USB A/B cable to reach the desired distance. The U330-05M provides up to 770mA of power to the connected device. If your device requires more than 770mA of power, an external power supply will be required for the connected USB device.

Specifications

Features
Connector gender	Male/Female
Country of origin	Vietnam
Connector 1 form factor	Straight
Connector 2 form factor	Straight
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB A
Cable length	4.88 m
Maximum data transfer rate	5000 Mbit/s
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Female
Maximum data transfer rate	5 Gbit/s
Weight	250 g
Weight & dimensions
Cable length	4.88 m
Weight	250 g
Package width	177.8 mm
Package depth	12.7 mm
Package height	228.6 mm
Package weight	320 g
Packaging data
Package width	177.8 mm
Package depth	12.7 mm
Package height	228.6 mm
Package weight	320 g
Ports & interfaces
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB A
Data transmission
Maximum data transfer rate	5000 Mbit/s
Technical details
Product colour	Black
Country of origin	Vietnam
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Certificates
Compliance certificates	RoHS
Other features
Product colour	Black
Master (outer) case GTIN (EAN/UPC)	10037332173499
Compliance certificates	RoHS
Logistics data
Country of origin	Vietnam
Master (outer) case gross weight	3.25 kg
Products per master (outer) case	10 pc(s)
Master (outer) case width	497.8 mm
Master (outer) case length	25.4 mm
Master (outer) case height	497.8 mm
Master (outer) case GTIN (EAN/UPC)	10037332173499
Harmonized System (HS) code	84733080
