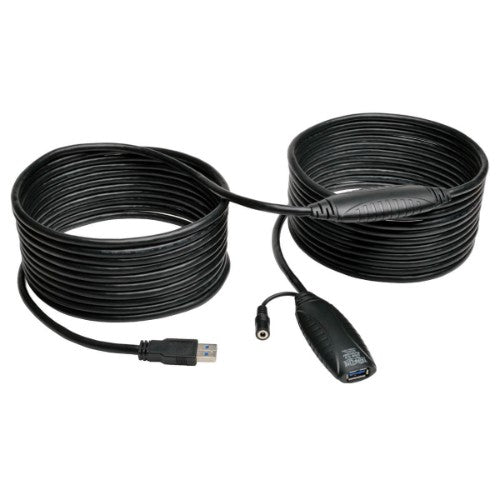

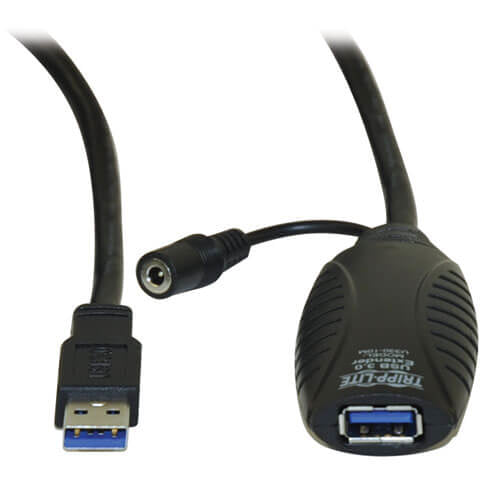

Tripp Lite U330-10M USB 3.0 SuperSpeed Active Extension Repeater Cable (A M/F), 10M (32.8 ft.)

USB 3.0 SuperSpeed Active Extension Repeater Cable (A M/F), 10M (32.8 ft.)

Key Features

• Extend a USB 3.0 signal 32.8-ft. (10 m)
• Increase the extension distance to 65.61-ft. (20 m) by connecting two U330-10M together
• Supports USB 3.0 SuperSpeed data transfer rates up to 5Gbps

Description

This USB 3.0 active extension cable is a bus-powered cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. Increase the extension distance to 65.6 feet (20 meters) by connecting two U330-10M cables together. USB limits a cable's length to 16 feet (4.9 meters). Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The cable must be plugged directly into a USB port (either on the PC or a hub). Use a standard six-foot (1.8-meter), 10-foot (3.1-meter), or 15-foot (4.6-meter) USB 3.0 A/B cable to reach the desired distance. The U330-10M provides up to 120mA of power to the connected device. If your device requires more than 120mA of power, an external power supply (not included) will be required. The U330-10M accepts a 5V 2A power supply with a 3.5 x 1.35mm DC jack. The output plug on the power supply should have a positive tip and a negative sleeve.

Specifications

Features
Connector gender	Male/Female
Country of origin	China
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB A
Cable length	10 m
Maximum data transfer rate	5000 Mbit/s
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Female
Maximum data transfer rate	5 Gbit/s
Quantity per pack	1 pc(s)
Weight & dimensions
Cable length	10 m
Package width	228.6 mm
Package depth	2.5 mm
Package height	269.2 mm
Package weight	500 g
Packaging data
Package width	228.6 mm
Package depth	2.5 mm
Package height	269.2 mm
Package weight	500 g
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Ports & interfaces
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB A
Data transmission
Maximum data transfer rate	5000 Mbit/s
Technical details
Product colour	Black
Country of origin	China
Harmonized System (HS) code	84733080
Other features
Product colour	Black
Master (outer) case GTIN (EAN/UPC)	10037332182729
Logistics data
Country of origin	China
Master (outer) case gross weight	2.59 kg
Products per master (outer) case	5 pc(s)
Master (outer) case width	350.5 mm
Master (outer) case length	2.5 mm
Master (outer) case height	398.8 mm
Master (outer) case GTIN (EAN/UPC)	10037332182729
Harmonized System (HS) code	84733080
