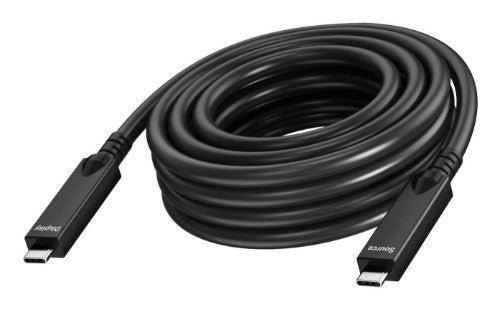

Vision TC 10MUSBC/BL USB cable USB 3.2 Gen 1 (3.1 Gen 1) 10 m USB C Black

10 m, USB-C to USB-C, 3.2 Gen 1, DP 1.4/2.1, 4K @ 60 Hz, 3 A (60 watts), 6.5 mm (0.3"), PVC, black

Description

USB-C is the latest USB connector. It has a smaller reversible plug which supports USB 3.2 Gen 1 signal.

This cable is compatible with both 2-lane and 4-lane configurations. For a 4-lane connection, both connected devices must support 4 lanes.

Very Tough
This cable, reinforced with a Kevlar core, is designed to resist stretching forces. It can withstand a continuous force of up to 200 newtons or a momentary peak force of up to 400 newtons.

Tight Bends
Fiber cables boast a significantly tighter bend radius compared to copper cables. This particular cable features a dynamic bend radius of 20 mm and a static bend radius of 10 mm.

Directional
This cable contains a chip integrated into each connector, so the end marked 'display' must be connected to the display. The ends are not interchangeable.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Plug and Play	Yes
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB C
Connector 2	USB C
Cable length	10 m
Connector contacts plating	Nickel
Product colour	Black
Cable type	Round cable
Power consumption	1.2 W
Connector 1 gender	Male
Connector 2 gender	Male
Cable jacket material	Nylon/Polyvinyl Chloride (PVC)
Reinforced charging cable	Yes
Fast charging	Yes
Maximum resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
DisplayPort version	2.1
USB Type-C DisplayPort Alternate Mode	Yes
Maximum data transfer rate	10 Gbit/s
Input voltage	5 V
Cable diameter	6.5 mm
Input current (max)	3 A
Quantity per pack	1 pc(s)
Power
Input voltage	5 V
Input current (max)	3 A
Weight & dimensions
Cable diameter	6.5 mm
Cable length	10 m
Bend radius (min)	1 cm
Connector 1 dimensions (WxDxH)	44 x 13 x 8 mm
Package width	175 mm
Package depth	150 mm
Package height	50 mm
Package weight	850 g
Packaging data
Package width	175 mm
Package depth	150 mm
Package height	50 mm
Package weight	850 g
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Ports & interfaces
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB C
Connector 2	USB C
Connector contacts plating	Nickel
Technical details
Product colour	Black
Compliance certificates	CE, RoHS
Certificates
Compliance certificates	CE, RoHS
Other features
Product colour	Black
Cable type	Round cable
Compliance certificates	CE, RoHS
