StarTech.com USB-C to VGA Adapter - Black - 1080p - Video Converter For Your MacBook Pro - USB C to VGA Display Dongle - Upgraded Version is CDP2VGAEC

StarTech.com USB-C to VGA Adapter - Black - 1080p - Video Converter For Your MacBook Pro - USB C to VGA Display Dongle - Type-C to VGA Converter (CDP2VGA)

Description

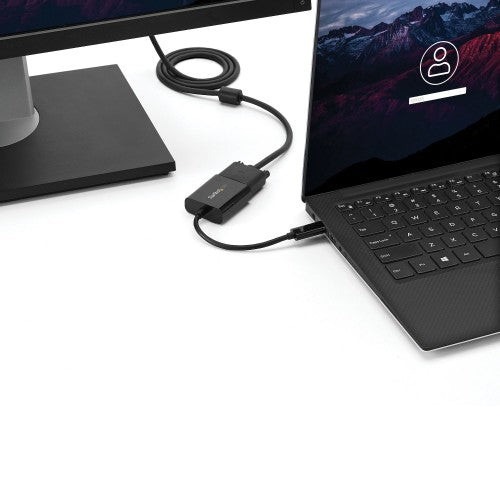

Connect your MacBook, Chromebook or laptop with USB Type-C to a VGA monitor or projector

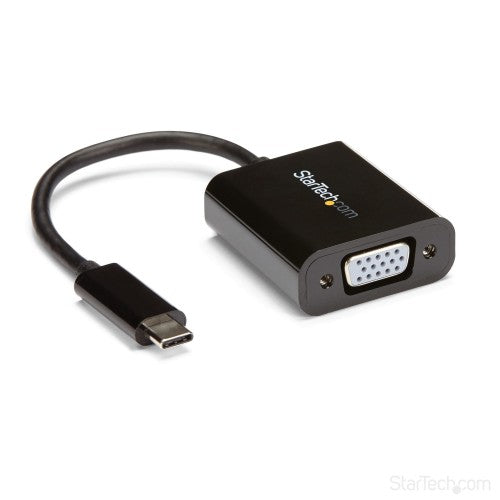

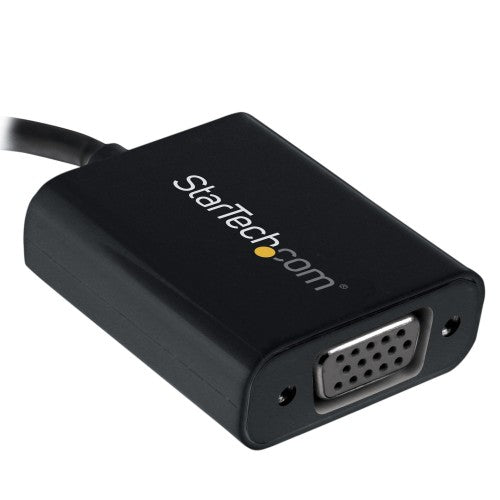

This USB-C™ to VGA video adapter lets you output high-definition VGA video from your USB Type-C™ device.

USB Type-C is a universal connectivity standard that combines all of your essential functions into one dynamic port. The connector is featured on ultra-portable devices with USB 3.1 Gen 1. This adapter works with USB-C devices that pass a DisplayPort video signal, such as the MacBook and Chromebook Pixel™. It's also compatible with Thunderbolt™ 3 ports.

Portable convenience

This USB Type-C video adapter maximizes portability with a lightweight, small-footprint design, which makes it the perfect accessory to carry with your MacBook or Chromebook, fitting easily into your laptop bag or carrying case. This ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.

Hassle-free connection with USB Type-C

This adapter lets you utilize the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so no matter how you plug it in, the adapter will always work, saving you the hassle and embarrassment of struggling with your device when you're trying to present.

Crystal clear picture quality

The adapter supports video resolutions up to 1920x1200 or 1080p. You’ll be surprised at the picture quality the adapter provides, even when connected to a legacy VGA monitor, projector or television. The adapter harnesses the video capabilities built into your USB Type-C connection to deliver every detail in stunning high-definition.

The CDP2VGA is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Note: Your USB-C equipped device must support video to work with this adapter. The adapter will not output digitally encrypted content.

The StarTech.com Advantage

Specifications

Performance
USB connector form factor	Straight
Chipset	NXP - PTN5100, NXP - PTN3355
Supported video modes	1080p
VGA (D-Sub) output	Yes
USB connector type	USB Type-C
USB connector gender	Male
USB version	3.2 Gen 1 (3.1 Gen 1)
DVI output	No
HDMI output	No
DisplayPort output	No
Number of displays supported	1
Maximum resolution	1920 x 1200 pixels
Certification	CE, FCC, REACH
Design
Product colour	Black
Integrated USB cable	Yes
USB cable length	0.14 m
Weight & dimensions
Width	37 mm
Depth	180 mm
Height	14 mm
Weight	24 g
USB cable length	0.14 m
Package width	125 mm
Package depth	225 mm
Package height	17 mm
Package weight	29 g
Technical details
Products per master (outer) case	200 pc(s)
Master (outer) case width	330 mm
Master (outer) case length	500 mm
Master (outer) case height	220 mm
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Packaging data
Package width	125 mm
Package depth	225 mm
Package height	17 mm
Package weight	29 g
Logistics data
Products per master (outer) case	200 pc(s)
Master (outer) case width	330 mm
Master (outer) case length	500 mm
Master (outer) case height	220 mm
Harmonized System (HS) code	84733020
