ATEN VC986 video cable adapter DisplayPort HDMI White

4K DisplayPort to HDMI Active Adapter

Key Features

• Converts DisplayPort signals to HDMI output

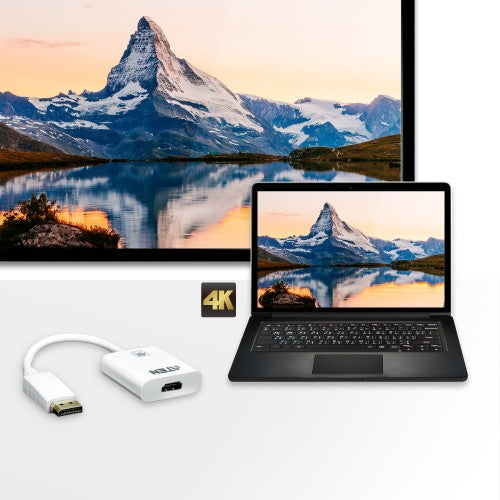

• Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD
• Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
• Supports AMD Eyefinity™ Technology (multi-screen setups)
• Audio supported
• No software or driver installation required

Description

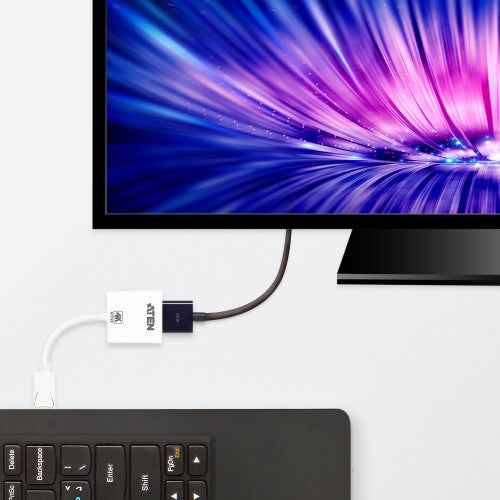

The VC986 is an active DisplayPort to HDMI adapter that allow you to connect your Mini DisplayPort/DisplayPort output device to the HDMI input of a 4K TV or other display.

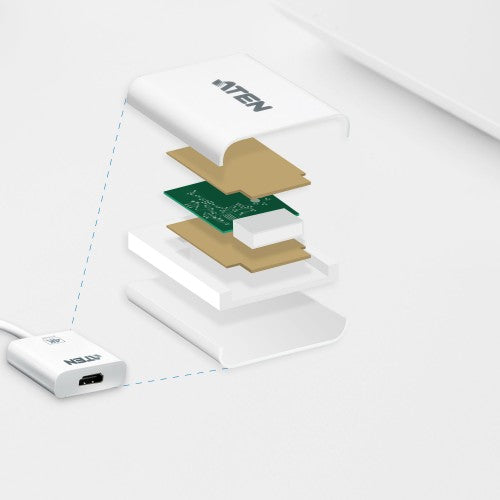

The ATEN VC986 is an active adapter, featuring advanced chips which ensure stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++).* Moreover, support for resolutions up to 4K make this adapter ideal for users who require a high performance signal conversion solution.

Note:
* Dual-mode DisplayPort (DP++) can directly process the signal from DisplayPort to HDMI or DVI signals.
* VC986 can only convert DisplayPort signals to HDMI output, and the reverse does not apply.

Specifications

Features
HDMI version	1.4
DisplayPort version	1.2a
Product colour	White
Bandwidth	297 MHz
Connector 1	DisplayPort
Connector 2	HDMI
Connector 1 gender	Male
Connector 2 gender	Female
Data transfer rate	10.2 Gbit/s
3D	Yes
Maximum resolution	3840 x 2160 pixels
Supported graphics resolutions	1920 x 1200 (WUXGA), 3840 x 2160
HDCP	Yes
Plug and Play	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
HDCP version	1.3
Cable type	Round cable
Connector housing material	Plastic
Refresh rate at maximum resolution	30 Hz
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Other features
Width	45 mm
Height	15 mm
Depth	180 mm
Weight & dimensions
Width	45 mm
Height	15 mm
Depth	180 mm
Weight	40 g
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
