True 4K DisplayPort to HDMI Active Adapter
The ATEN VC986B is an active adapter, featuring an advanced chip which ensures stable video signal conversion even when the video source does not support Dual-Mode DisplayPort (DP++).* Moreover, support for resolutions up to True 4K makes this adapter ideal for users who require a high performance signal conversion solution.
*Dual-Mode DisplayPort (DP++) can directly process the signal from DisplayPort to HDMI or DVI signals.
Key Features
- Converts DisplayPort signals to HDMI output

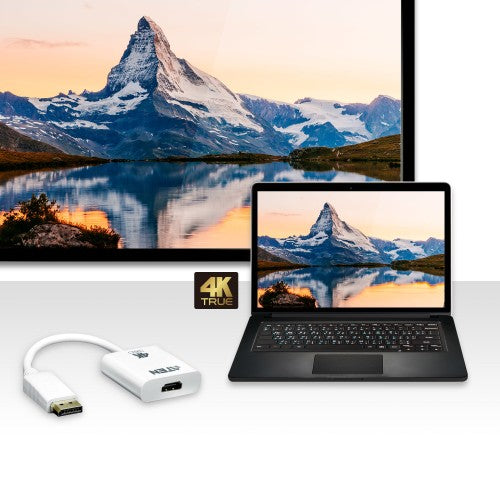

- Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to True 4K

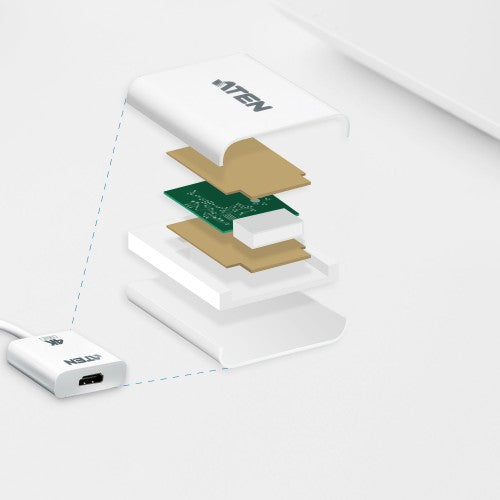

- Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support Dual-Mode DisplayPort (DP++)

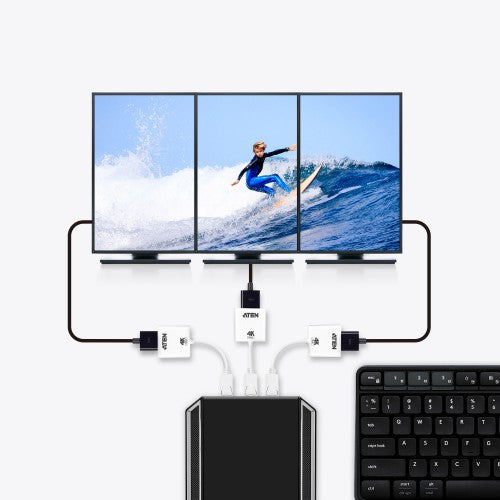

- Supports AMD Eyefinity™ Technology (multi-screen setups)
- Audio supported
- No software or driver installation required
- DisplayPort 1.2 compliant
Description

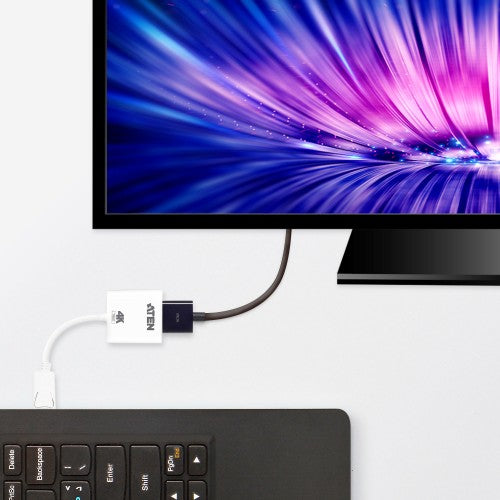

The VC986B is an active DisplayPort to HDMI adapter that allows you to connect your DisplayPort output device to the HDMI input of a True 4K TV or any other display.The ATEN VC986B is an active adapter, featuring an advanced chip which ensures stable video signal conversion even when the video source does not support Dual-Mode DisplayPort (DP++).* Moreover, support for resolutions up to True 4K makes this adapter ideal for users who require a high performance signal conversion solution.
*Dual-Mode DisplayPort (DP++) can directly process the signal from DisplayPort to HDMI or DVI signals.
Specifications
| Features | |
|---|---|
| HDMI version | 2.0 |
| DisplayPort version | 1.2a |
| Product colour | White |
| Bandwidth | 600 MHz |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Data transfer rate | 18 Gbit/s |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| HDCP | Yes |
| Plug and Play | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| HDCP version | 2.2 |
| Cable type | Round cable |
| Connector housing material | Plastic |
| Refresh rate at maximum resolution | 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Other features | |
| Width | 45 mm |
| Height | 15 mm |
| Depth | 180 mm |
| Weight & dimensions | |
| Width | 45 mm |
| Height | 15 mm |
| Depth | 180 mm |
| Weight | 40 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
-
