j5create USB-C to Dual USB-C with Video or Power Delivery

USB-C to Dual USB-C with Video or Power Delivery

Key Features

• Supports USB-C® video resolution up to 4K @ 240 Hz for VR/AR glasses and USB-C® monitor
• Designed specifically for AR glasses or high-resolution monitor, features a USB-C® port supporting 4K240Hz video output and 480 Mbps data transfer to offer an optimal immersive visual experience
• Charge while playing! Equipped with a USB-C® charging input supporting up to PD 100W
• Suitable for iPhone® 15, Android™ phone or handheld game console like Nintendo Switch® and Steam Deck™
• Plug-and-play, no driver installation is required

Description

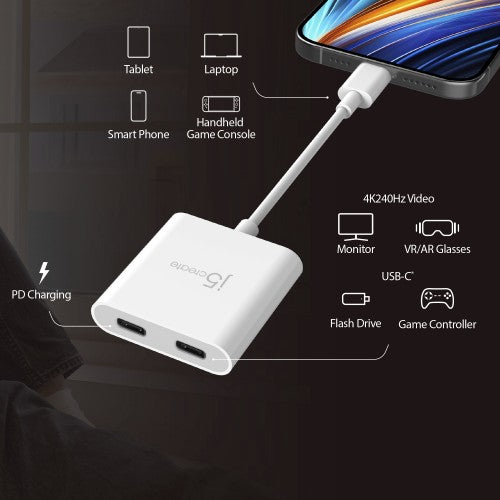

The JCA164 adapter could separate video/data/power function form your laptop, tablet, or smartphone. The adapter’s small size makes it easy to transport and place on a desk while saving space. This adapter allows you to connect a display such as a VR/AR glasses or portable USB-C® monitor to your device and supports resolutions up to 4K 240 Hz and it also support a 480 Mbps data transport. Another USB-C® Power Delivery port that can be used to charge your host when a USB-C® power adapter is connected. The 4K240 Hz USB-C® port supports Extended, and Mirrored display modes. This USB-C® port also support 480 Mbps data transport that allows you to connect USB™ peripherals such as a USB™ flash drive, keyboard, or mouse. Another USB-C® port supports upstream charging and Power Delivery 3.0 100W to keep your connected mobile device powered up while in use.

Specifications

Features
Country of origin	Taiwan
Product colour	White
Cable length	0.1 m
Connector 1	USB Type-C
Connector 2	USB Type-C
Connector 1 gender	Male
Connector 2 gender	Female
Jacket material	Acrylonitrile butadiene styrene (ABS), Plastic
Maximum resolution	3840 x 2160 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
Supported video modes	1080p, 1440p, 2160p
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Other operating systems supported	ChromeOS
Maximum refresh rate	240 Hz
Power source	USB
Voltage rating	20 V
Cable type	Round cable
Refresh rate at maximum resolution	30 Hz
Operational conditions
Operating temperature (T-T)	-1 - 41 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Certificates
Compliance certificates	CE, REACH, RoHS
Sustainability
Sustainability compliance	Yes
Technical details
Country of origin	Taiwan
Shipping (inner) case net weight	400 g
Sustainability compliance	Yes
Warranty period	2 year(s)
Compliance certificates	CE, REACH, RoHS
Other features
Width	42 mm
Height	11 mm
Depth	42 mm
Weight & dimensions
Width	42 mm
Height	11 mm
Depth	42 mm
Weight	23.2 g
Package width	145 mm
Package depth	95 mm
Package height	25 mm
Package weight	55.5 g
Packaging data
Package width	145 mm
Package depth	95 mm
Package height	25 mm
Package type	Box
Package weight	55.5 g
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Package type	Box
Logistics data
Master (outer) case width	225 mm
Master (outer) case length	321 mm
Master (outer) case height	180 mm
Master (outer) case gross weight	2.5 kg
Products per master (outer) case	20 pc(s)
Master (outer) case GTIN (EAN/UPC)	24712795088773
Shipping (inner) case width	10.5 cm
Shipping (inner) case length	15 cm
Shipping (inner) case height	16 cm
Products per shipping (inner) case	5 pc(s)
Shipping (inner) case net weight	400 g
Export Control Classification Number (ECCN)	EAR99
Warranty period	2 year(s)
