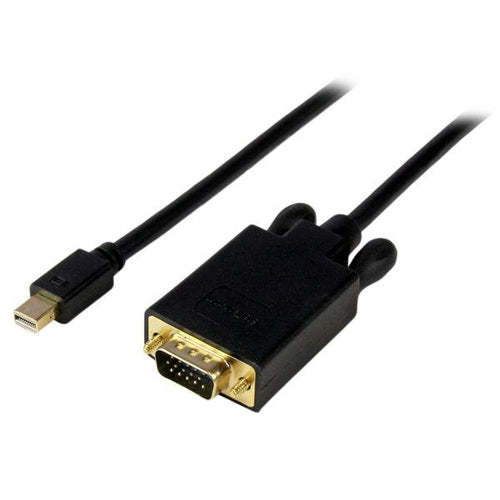

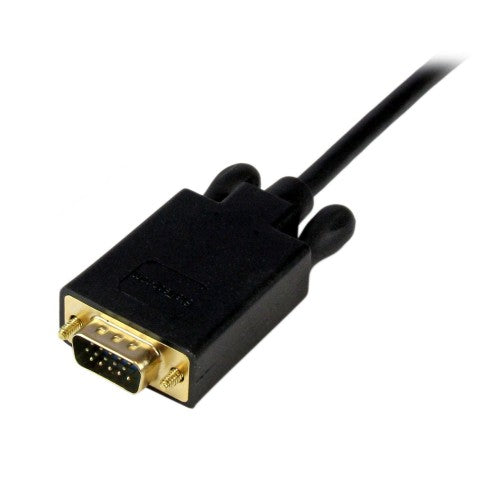

StarTech.com 6ft (2m) Mini DisplayPort to VGA Cable - Active Mini DP to VGA Adapter Cable - 1080p Video - mDP 1.2 or Thunderbolt 1/2 Mac/PC to VGA Monitor/Display - Converter Cord

StarTech.com 6ft (2m) Mini DisplayPort to VGA Cable - Active Mini DP to VGA Adapter Cable - 1080p Video - mDP 1.2 or Thunderbolt 1/2 Mac/PC to VGA Monitor/Display - Converter Cord (MDP2VGAMM6B)

Key Features

• MINI DISPLAYPORT TO VGA CABLE: 6ft (1.8m) Mini DisplayPort 1.2 (HBR2) to VGA cable connects a VGA display/monitor/projector supporting 1920x1200 & 1080p at 60Hz; DPCP & HDCP 1.4 / EDID & DDC pass-through ensure compatibility between source & display
• HOST COMPATIBILITY: Active digital to analog converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
• INTEGRATED DISPLAY CABLE: Mini DisplayPort to VGA adapter cable has slim & flexible design with video adapter chip built into VGA connector reducing clutter & providing a tidy install in the office, boardroom or home office
• INCREASE PRODUCTIVITY: Connect a VGA monitor or projector, or add a second display to your workstation using this mDP to VGA display adapter cable / Supports VGA screw locking cable to prevent accidental disconnection / Gold-plated connectors
• EASY TO USE: With no software or drivers required, the Mini DP to VGA converter cord works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks

Description

Connect a Mini DisplayPort-equipped PC or Mac® to a VGA monitor/projector, with a 6ft black cable

The MDP2VGAMM6B 6ft active Mini DisplayPort to VGA converter cable lets you connect your Mini DisplayPort-equipped device (such as a Macbook® or any Microsoft® Surface™ Pro devices with mDP) directly to a VGA monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your Mini DisplayPort computer to work with a VGA monitor or projector.

The adapter cable is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port. Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.

The MDP2VGAMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Features
Converter type	Active video converter
Chipset	Analogix - 9832
DisplayPort version	1.2
Product colour	Black
Cable length	1.83 m

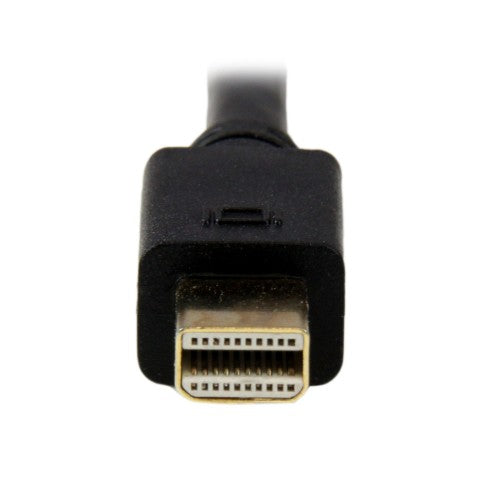

Connector 1	mini DisplayPort

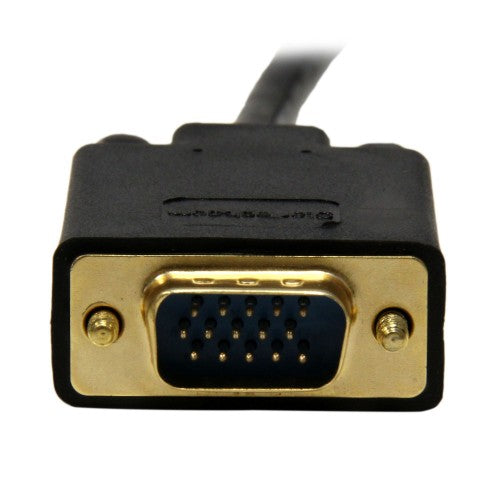

Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Male
Maximum resolution	1920 x 1200 pixels
Supported video modes	1080p
HDCP	Yes
Plug and Play	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDCP version	1.4
DisplayPort Content Protection (DPCP)	Yes
HBR2 support	Yes
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	40 - 85%
Certificates
Compliance certificates	CE, RoHS
Other features
Width	37 mm
Height	19 mm
Depth	1830 mm
Weight & dimensions
Width	37 mm
Height	19 mm
Depth	1830 mm
Weight	101.3 g
Package width	197 mm
Package depth	222 mm
Package height	20 mm
Package weight	123 g
Packaging data
Package width	197 mm
Package depth	222 mm
Package height	20 mm
Package weight	123 g
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	420 mm
Master (outer) case length	415 mm
Master (outer) case height	435 mm
Products per master (outer) case	150 pc(s)
Harmonized System (HS) code	84733080
